3.8 How to install the device on the tank
3.8.1 How to assemble the single rod probe (single-piece probe)
INFORMATION!
This procedure is for devices with single rod probes that are not segmented (single-piece
probes).

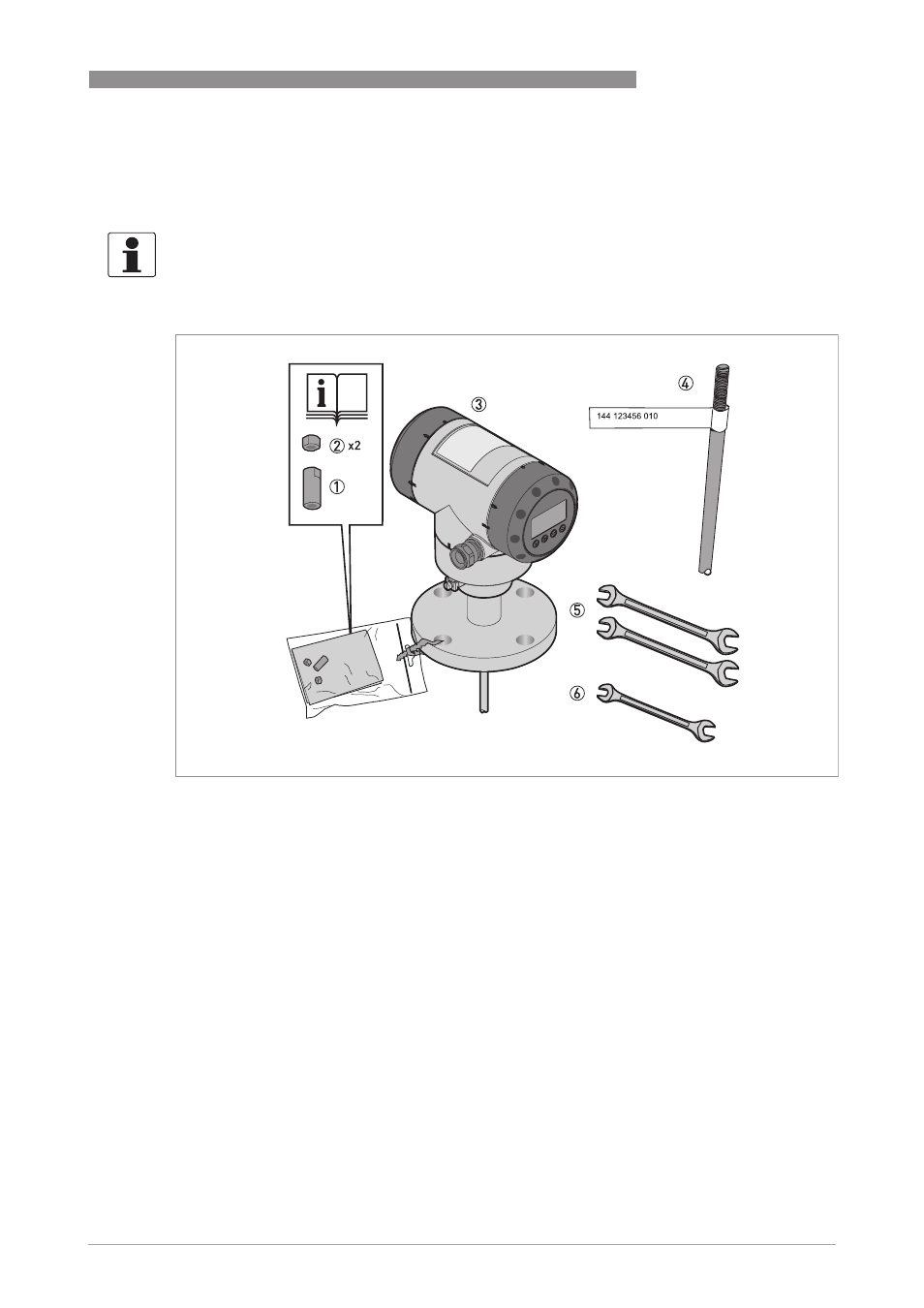

Figure 3-22: Equipment needed to assemble the device
1 Union nut
2 2 locking nuts
3 Housing assembly
4 Single rod probe
5 Tools: two 8 mm open-ended wrenches (not supplied)
6 Tools: one 7 mm open-ended wrench (not supplied)
