5.3.2 Functions of keypad buttons

For data on keypad functions, refer to

Normal mode

on page 67.

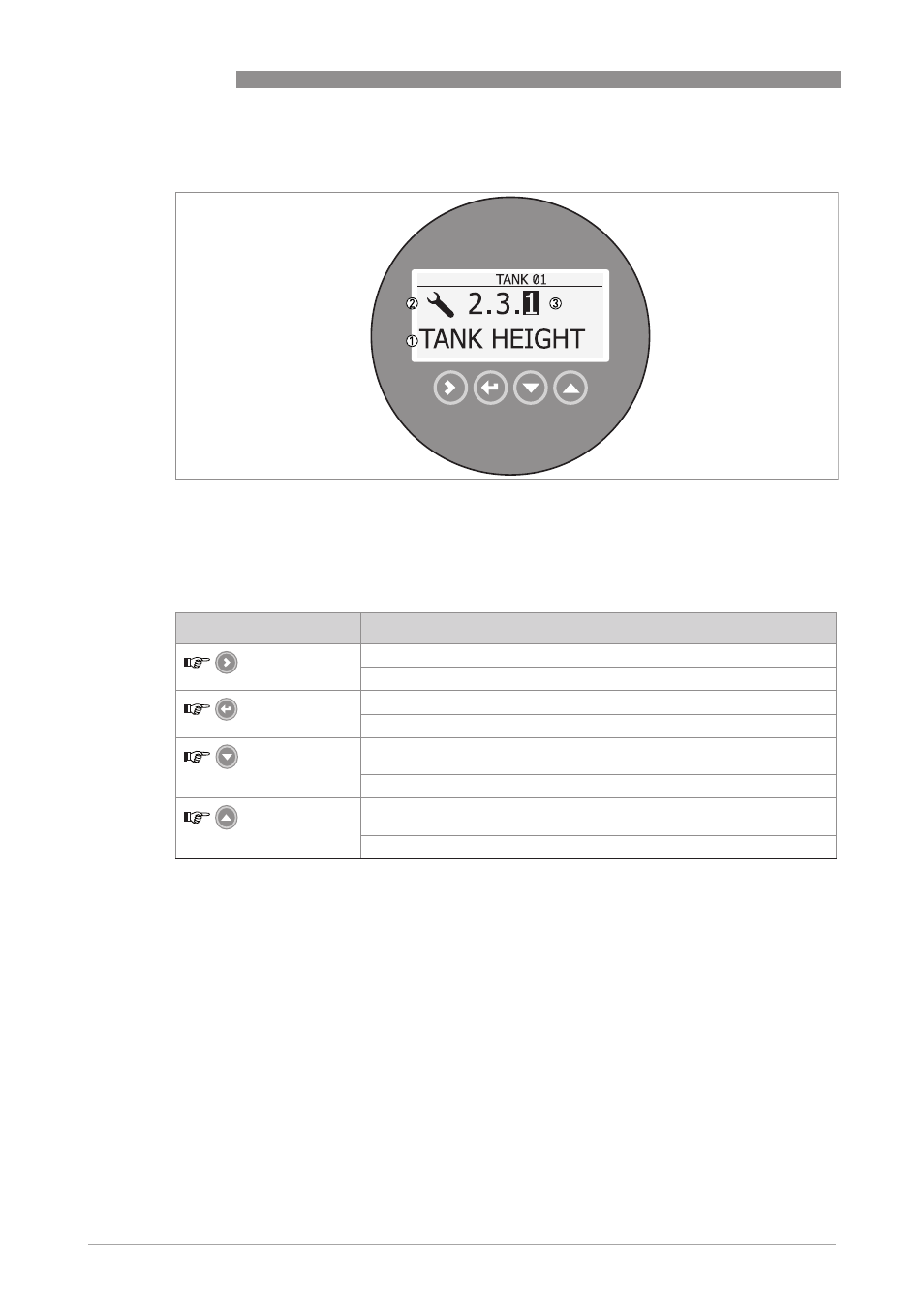

Figure 5-2: Local display screen layout in configuration mode

1 Function name
2 Configuration mode symbol
3 Menu number

Keypad button

Function

[Right]

Normal mode:

Normal mode: Enter Information menu (Enter Configuration mode)

Configuration mode:

Configuration mode: Move cursor to the right

[Return / Escape]

Normal mode:

Normal mode: Change units (m, cm, mm, in, ft)

Configuration mode:

Configuration mode: Exit

[Down]

Normal mode:

Normal mode: Change measurement type (distance, level , output (%),

output (mA), conversion, ullage conversion)

Configuration mode:

Configuration mode: Decrease value or change parameter

[Up]

Normal mode:

Normal mode: Change measurement type (distance, level , output (%),

output (mA), conversion, ullage conversion)

Configuration mode:

Configuration mode: Increase value or change parameter

1 If you have made a strapping table in menu item 2.8.1 INPUT TABLE for volume or mass measurement, "Conversion"

and "Ullage Conv." will be shown in the list of measurement types
