6.3.4 Keypad functions
This is what you see when you are in Configuration mode. The functions of the buttons are given
in the table that follows:
Functions of buttons for menu navigation

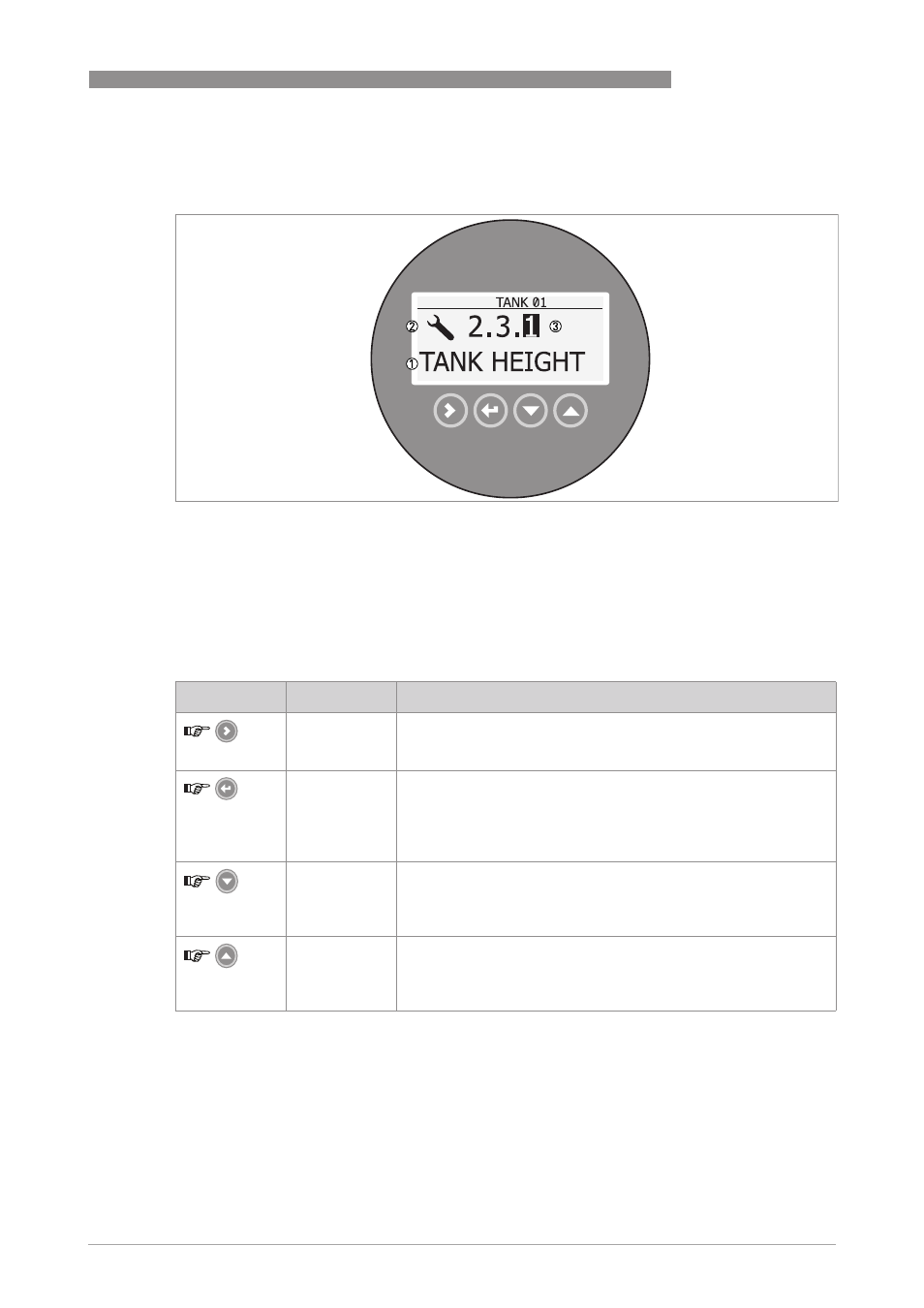

Figure 6-1: Local display screen layout in configuration mode
1 Function name
2 Configuration mode symbol
3 Menu number
Button Description Function
Right • Go down to the sub-menu level (for example, from menu 1.0.0 to
sub-menu 1.1.0).
• Enter the menu item
Enter /
Esc (Escape)
• Go up to the menu level (for example, from sub-menu 1.1.0 to
menu 1.0.0).
• Go to Normal mode. If you changed settings in Configuration
mode, you must save or cancel your new settings. For more data,
refer to the end of this section.
Down • Scroll down the menu list (for example, from menu 2.0.0 to menu
1.0.0).
• Scroll down the sub-menu list (for example, from sub-menu 2.2.0
to sub-menu 2.1.0).
Up • Scroll up the menu list (for example, from menu 1.0.0 to menu
2.0.0).
• Scroll up the sub-menu list (for example, from sub-menu 2.1.0 to
sub-menu 2.2.0).
