3
INSTALLATION
42
OPTIFLEX 1300 C
www.krohne.com 03/2014 - 4000172306 - HB OPTIFLEX 1300 R07 en
• Attach a lock nut to each end of the rod probe segments.
• Attach a union nut to the bottom end of each rod probe segment, but not to the bottom
segment. Use two 8 mm open-end wrenches to tighten the union nut against the lock nut.
• Attach the top segment of the rod probe to the union nut below the process connection. Use
two 8 mm open-end wrenches to tighten the union nut against the lock nut on the rod probe.
• Attach the middle segment of the rod probe to the union nut on the top segment (if there are
middle segments). Use two 8 mm open-end wrenches to tighten the union nut against the lock
nut. Repeat this step for the other segments.
• Attach the bottom segment of the rod probe to the union nut on the top segment. Use two
8 mm open-end wrenches to tighten the union nut against the lock nut.

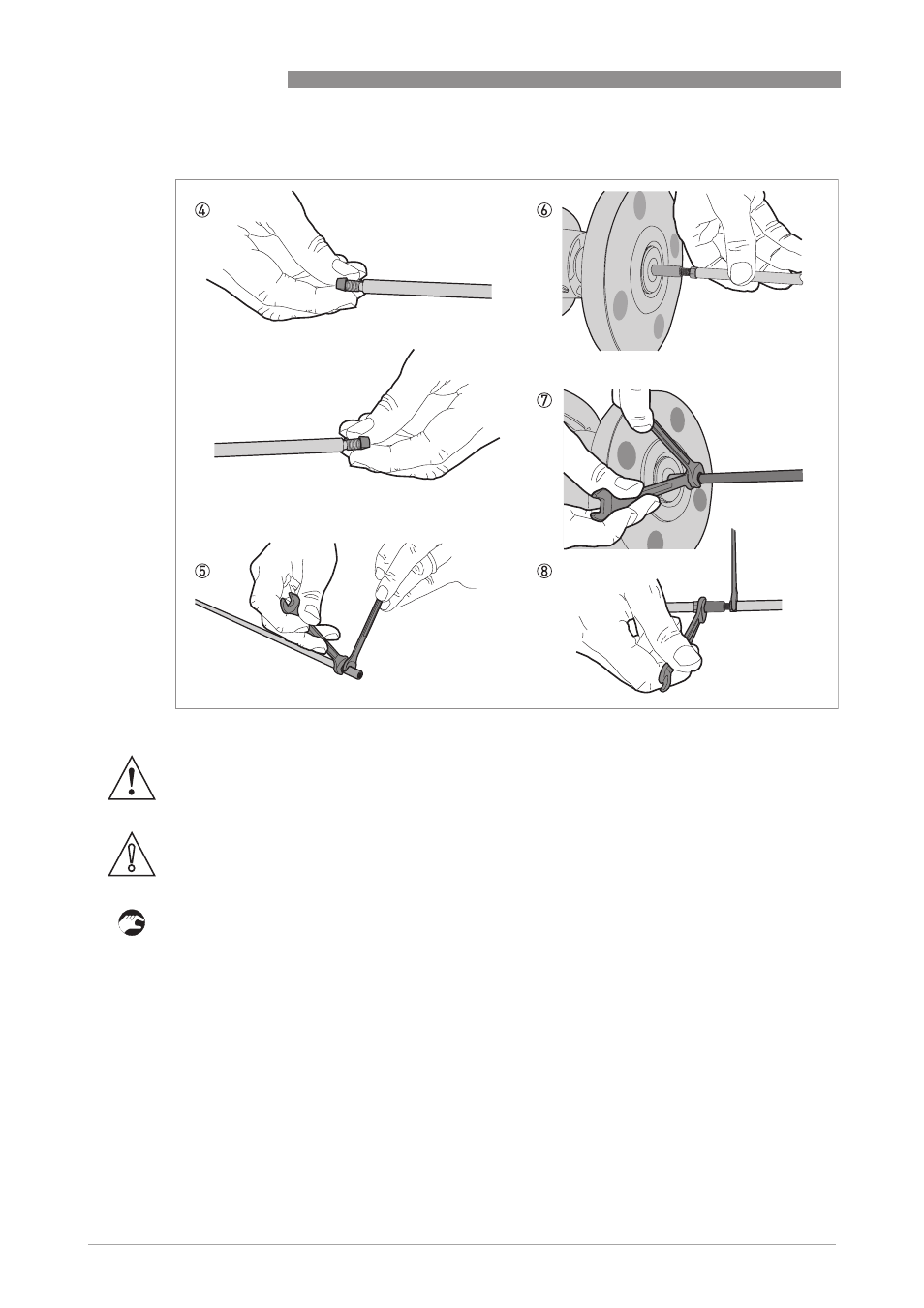

Figure 3-32: How to assemble the segmented single rod probe: part 2
WARNING!
Put a support below the probe to prevent deformation.
CAUTION!
Make sure that the nuts are tight and the rod probe cannot loosen.
