• Attach a locking nut to the single rod.
• Make sure that the locking nut is engaged ¾ along the length of the thread.
• Attach the single rod to the union nut. Make sure the probe touches the housing assembly.
• Tighten the single probe with a 7 mm open-ended wrench (step 9).
• Tighten the locking nut against the union nut with two 8 mm open-ended wrenches (step 10).

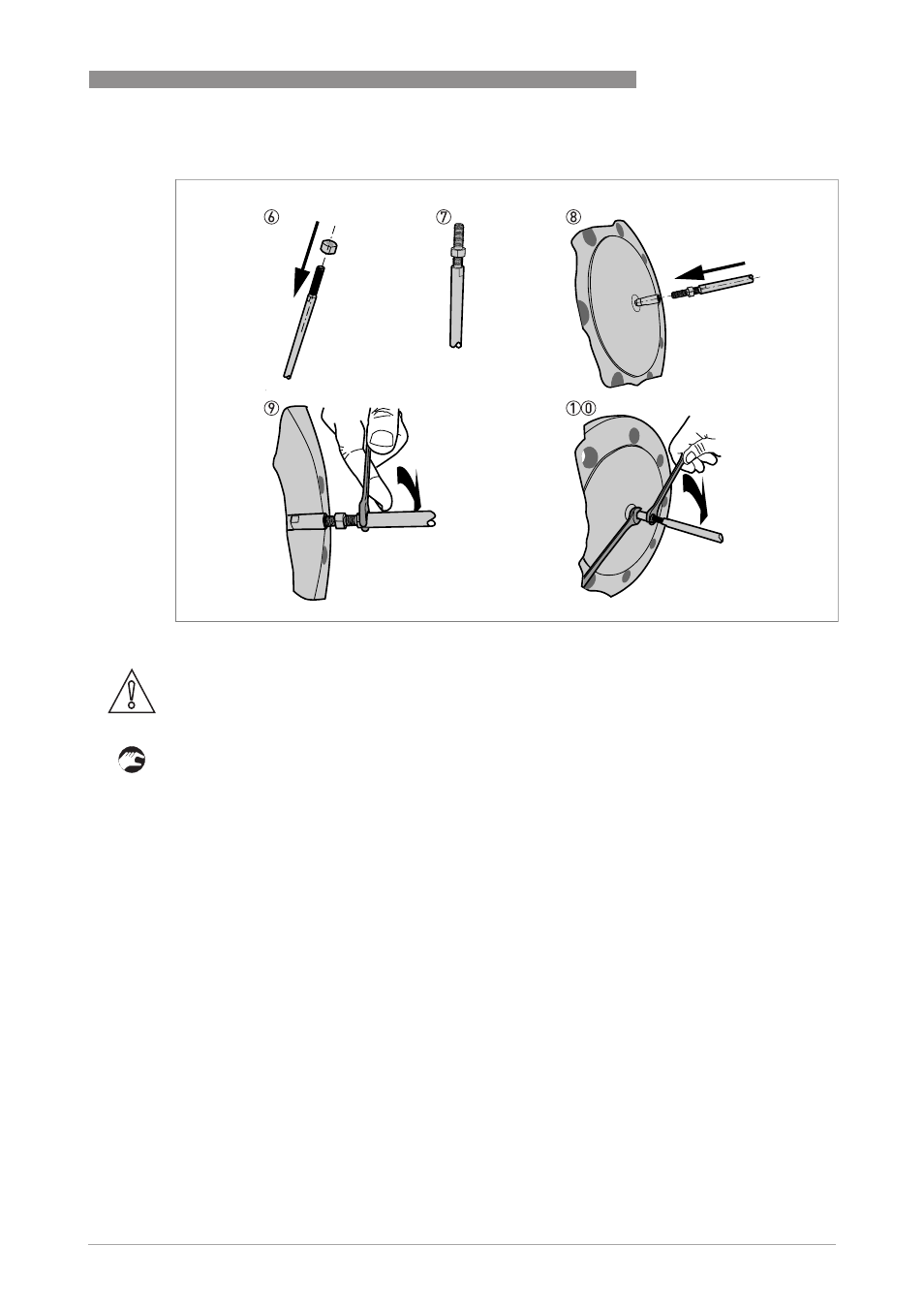

Figure 3-29: How to attach the single rod probe to the flange assembly
CAUTION!
Support the probe.
