Setting the Compliance Test Options
Select the desired device for compliance test and open the
Compliance Tests Options by clicking the Options button.

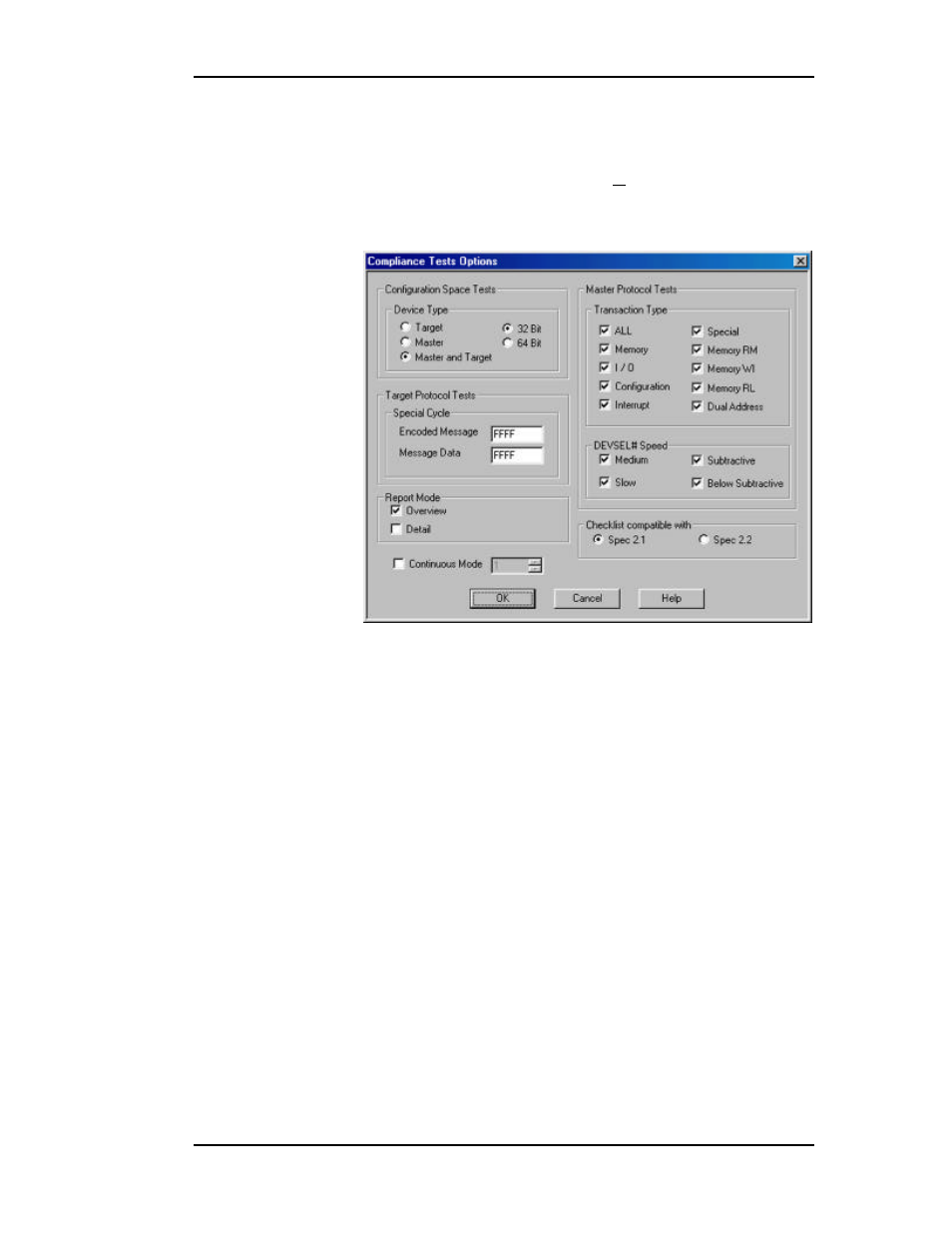

Figure 78 Compliance Tests Options Selection Dialog Box
Configuration Space Tests Check the device to be tested as Master, Target or
both.
Master Protocol Tests Select protocol test options such as I/O, Memory. For
Master test the user is expected to interact and cause his
master card to perform a series of expected transactions. For
the list of these transactions and the order they appear refer
to the " Compliance Test_IUT User Guide.doc" . This
document should be installed in "C:\Program
files\Catalyst\Doc" directory.
DEVSEL# Speed Select the target DEVSEL# decode speed.
Continuous Mode In cases where you would like the test to be performed
repetitively, check the Continuous Mode box and set the
number of times to be repeated. Click OK to complete
setting the options.
Checklist Compatible with Select the PCI specification that you wish the test to
follow, PCI 2.1 or PCI 2.2.
