TA660 User's Manual Catalyst Enterprises, Inc
77
Setting Analysis Options:

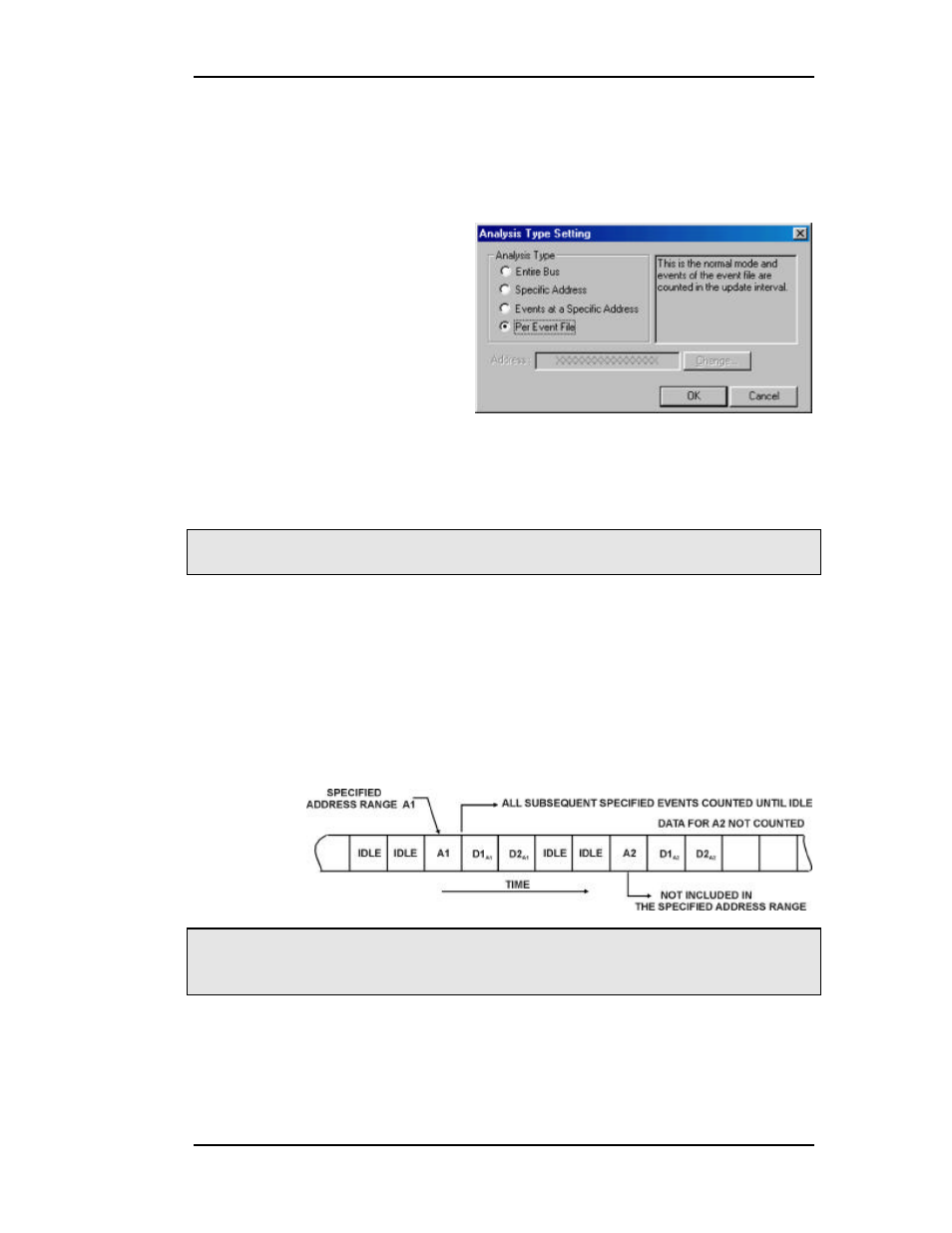

To set analysis options make sure that the Performance Analysis Tab has been selected
and click on the Advanced Options button in the Performance Analysis Dialog Box to
open the Analysis Type Setting dialog box shown below.
ANALYSIS TYPE
Entire Bus To count the events defined in the
event file at all addresses.
Address Override Specific Address and Events at Specific Address
selections override the addresses set in the event file.
Specific Address To count only all of the address events
defined in the event tab.
Events at a Specific Address To count all of the events
defined in the event tab after the
occurrence of the specific address
selected. This mode may be used to
measure a data burst rate of a specific
transfer.
Specific Address Selecting the Specific Address or the Events at a Specific
Address enables address entry on the Performance Analysis
dialog box.
Per Event Tab To count bus cycles such as memory
and I/O operations at two or more
addresses that are specified in the
event tab, e.g. I/O operation of two
different agents.
