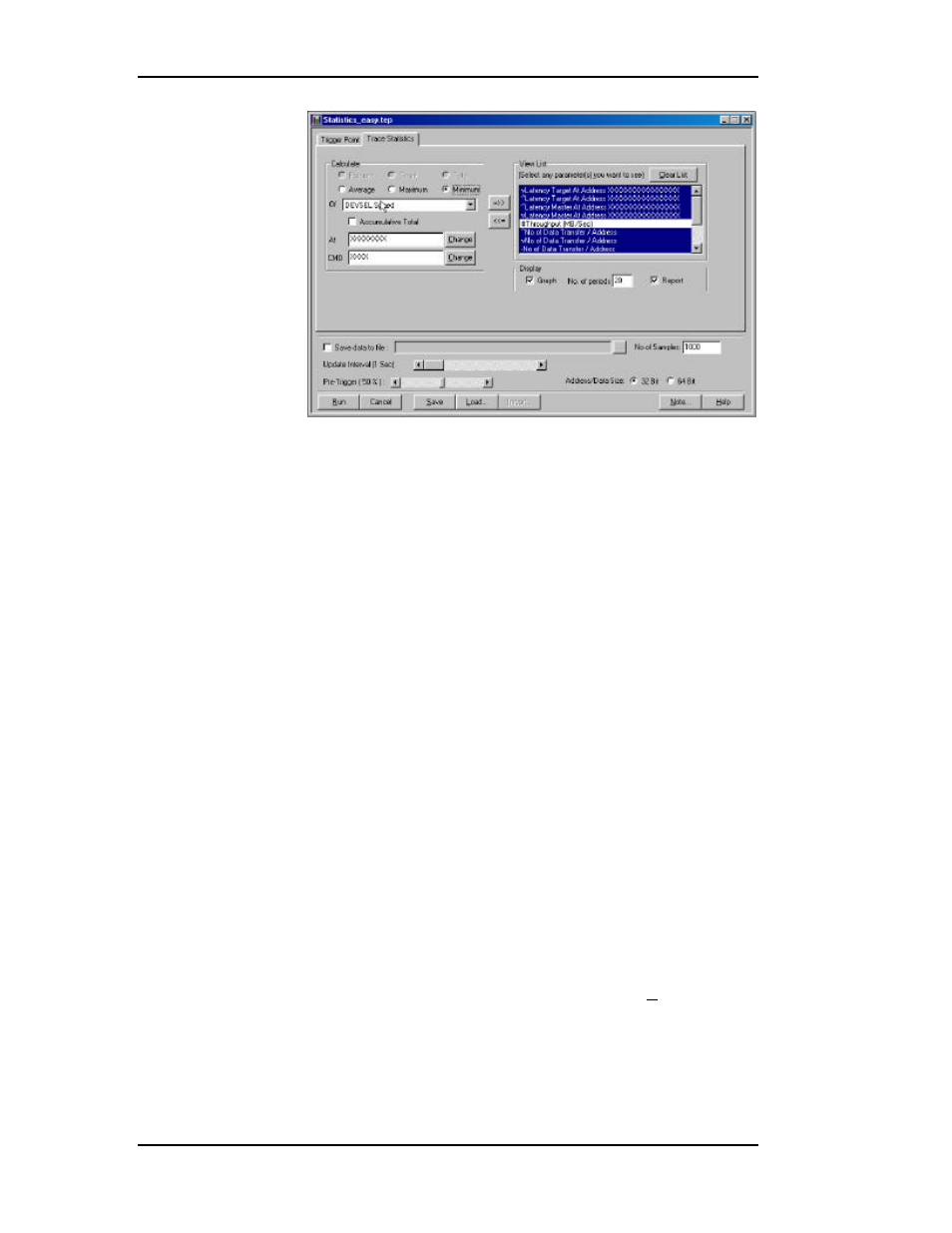

Figure 17 Easy Mode Trace Statistics Dialog Box
Selecting Parameters Select the parameters to be measured from the Analyze List
Of shown in Figure 17. Move the selected parameter to the
right window for software to perform interrogation on that
parameter during post processing by clicking the =>> button
next to the Of edit box. Parameters may be defined as
minimum, average, maximum or count and or percent
depending on which unit applies. Parameters may also be
defined, if applicable, by address type.
Number of Samples Set the amount of data to be captured in the memory for
post processing for each interval. The larger the number of
samples the more time is required for downloading and
processing, Therefore you should select an optimum
number of samples to be captured to memory such as 1000.
This takes about one second to process. If your application
requires more data then a larger number should be entered.
Update Interval If a small number of data samples is expected to be
captured, say 1000, and the application does not require
repeated measurement, you may want to sample data once
every 5 or 10 seconds by changing the Update Interval to 5
or 10 seconds as required. The larger of the two number of
data samples or faster update rate will be the dominating
setup for data capture time.
2. When all the parameters have been specified, click Run to capture
the specified data and perform the trace statistics determination.
