TA660 User's Manual Catalyst Enterprises, Inc
79
Writing And Editing Analysis Equations
Analysis equations are needed for generating the results of the measurement on the
Reports window. They are entered in simple algebraic format observing standard
algebraic conventions for operations using EV1 to EV8 (or their corresponding name) as
the variables, Clock is used for the number of system clocks, and Freq is used for system
frequency. The "Description" line is used to enter the report title.
1. Click the Equation Tab to open the Equation Editor dialog box as
shown in Figure 72.

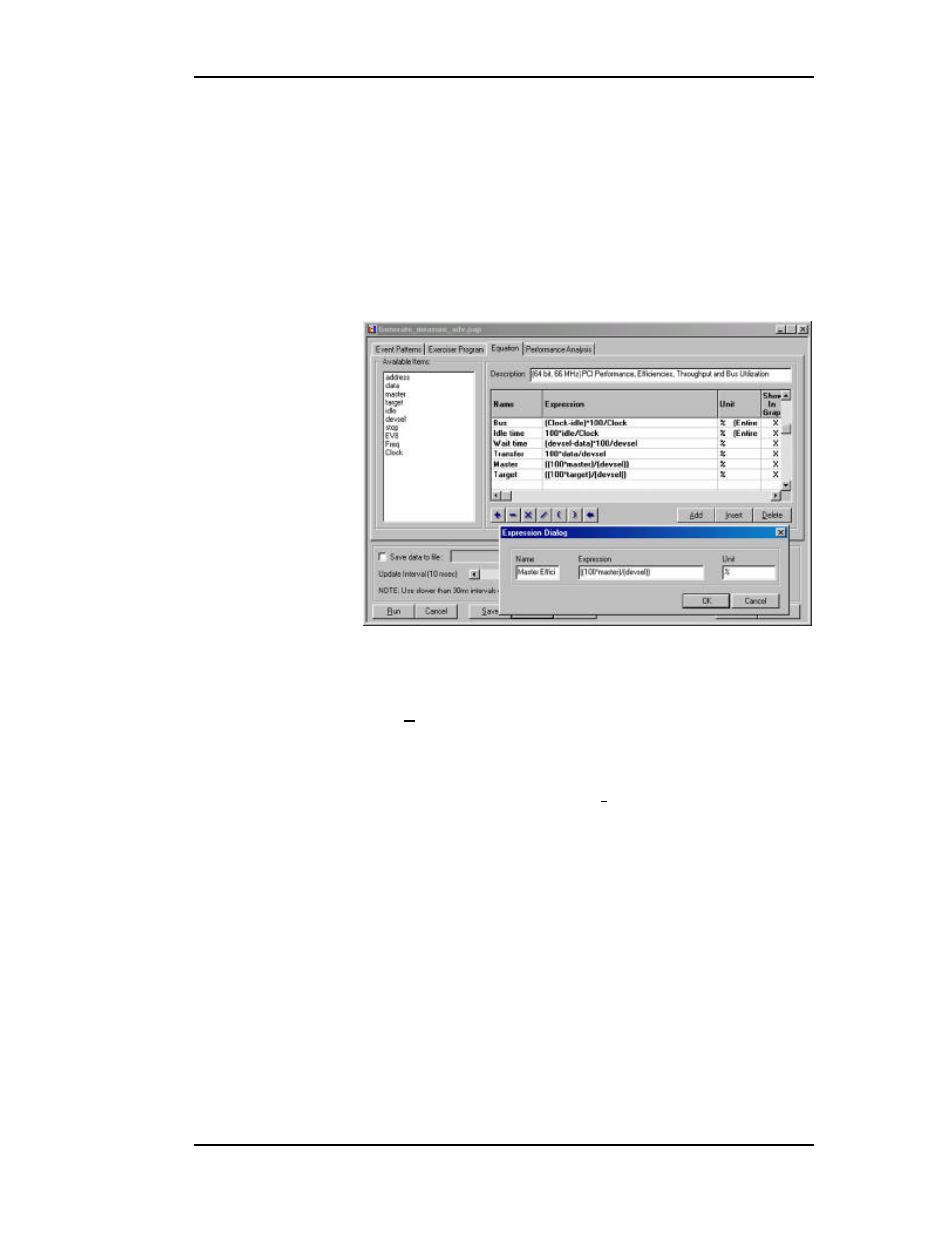

Figure 72 Equation Editor Dialog Box
Add a New Line To add a new equation line at the bottom of the list, click
the Add button.
Insert a Line To insert a new equation above an existing equation line
click the cursor in the line above which you wish to insert
the new line and then click the Insert button.
New Equation Double click in a blank Expression line to open the
Expression Dialog.
1. Type an equation name in the Name edit box.
2. Enter the equation in the Expression edit box using the Available
Items and operators from the Equation tab.
3. Enter the units to be displayed in the Unit edit box.
Edit Equation Double click in the line of the equation that you wish to edit
to open the Expression Dialog and perform the necessary
editing.
