TA660 User's Manual Catalyst Enterprises, Inc
129

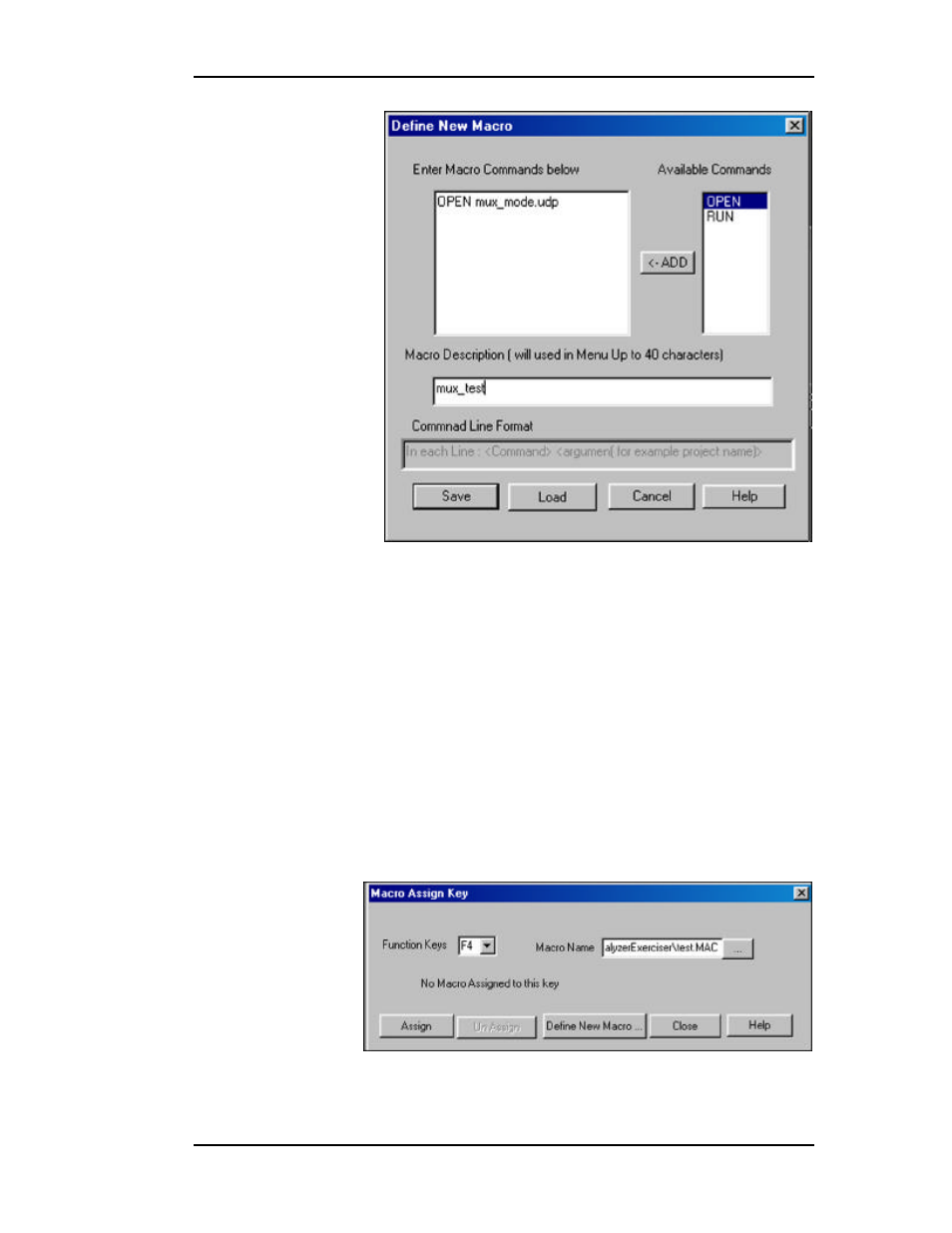

Figure 118 Defining the Macro
3. Define the type of function to be performed, i.e. OPEN, and then
specify the file name and the file extension in front of it.
In this example the function is to OPEN a frequently tested file called
mux_mode.udp. Several functions such as OPEN and RUN may be
intermixed and selected in a macro function.
A macro description should be entered on the command line in the
dialog box and then "Save" the macro with a name, such as test.mac.
4. After the macro has been saved, select a macro name in the new
menu and assign the macro to a function key by clicking the
"Assign" button.
Figure 119 Assigning the Macro to F4
