Configuration Menu

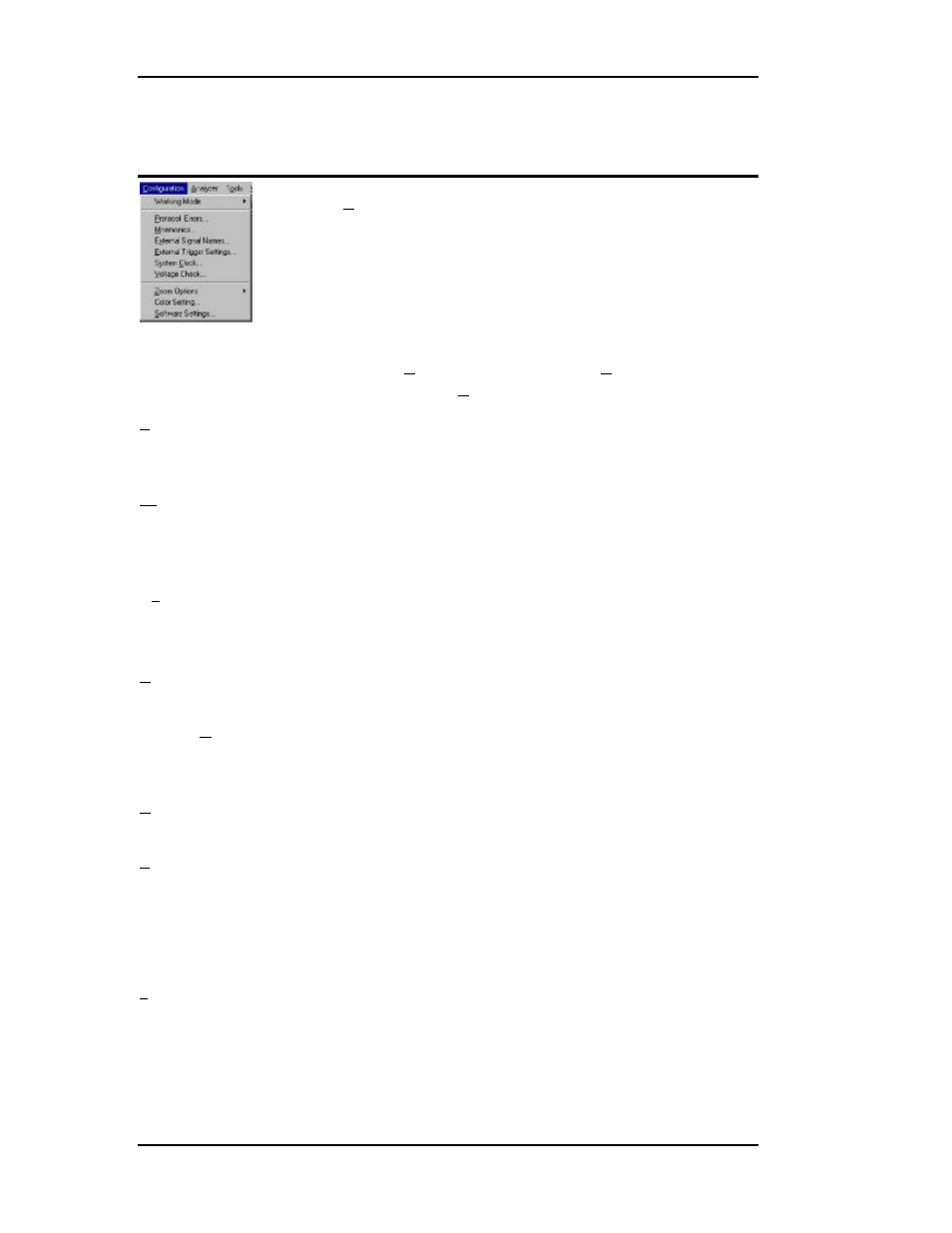

Click Configuration on the main menu bar to display the
various configuration options.
Working Mode Allows you to select the analyzer configuration. The choices
are, State Analyzer Only, State & Timing Analyzer or
State Analyzer & Exerciser.
Protocol Errors Used to configure a Protocol Errors mask for use in
triggering on protocol errors. See Protocol Errors on page
118
Mnemonics Used to define Mnemonics. Mnemonics may be used to
display user assigned names to specific patterns, in search a
pattern in the display or filter data patterns from a display.
See Mnemonics on page 123.
External Signal Names Allows users to assign specific names to external signals for
display for display purposes. See External Signals on
page 126.
External Signal/Trigger Settings Allows you to configure external input and
output triggers. See External Signals/Trigger on page 125.
System Clock Only used to set the system frequency for TA660 boards.
TA660A and TA660CA boards automatically detects the
system frequency. See System Clock on page 15.
Voltage Check Used to select or deselect the voltages to be monitored for
tolerance compliance. See on page 15.
Zoom Options Used to select zoom about X or Y cursor or between X and
Y cursor when displaying a Wave data capture window. See
Using Zoom in the Wave Window on page 102
Color Setting Used to set custom color combinations for the Analyzer
Performance Analysis Window.
Software Settings Used to set global software user preferences. See Global
Software Settings on page 17.
