TA660 User's Manual Catalyst Enterprises, Inc
124
Displaying Patterns Matching Mnemonics
Figure 112 illustrates a simple mnemonic file named YOUR_NM that
is to be used to highlight a matching pattern in collected data.
To view a pattern with this mnemonic you must add it to the
displayed signals list. To add the mnemonic:
Click the Setup Screen on either the wave or list data display to open
the Active Signals Dialog Box.

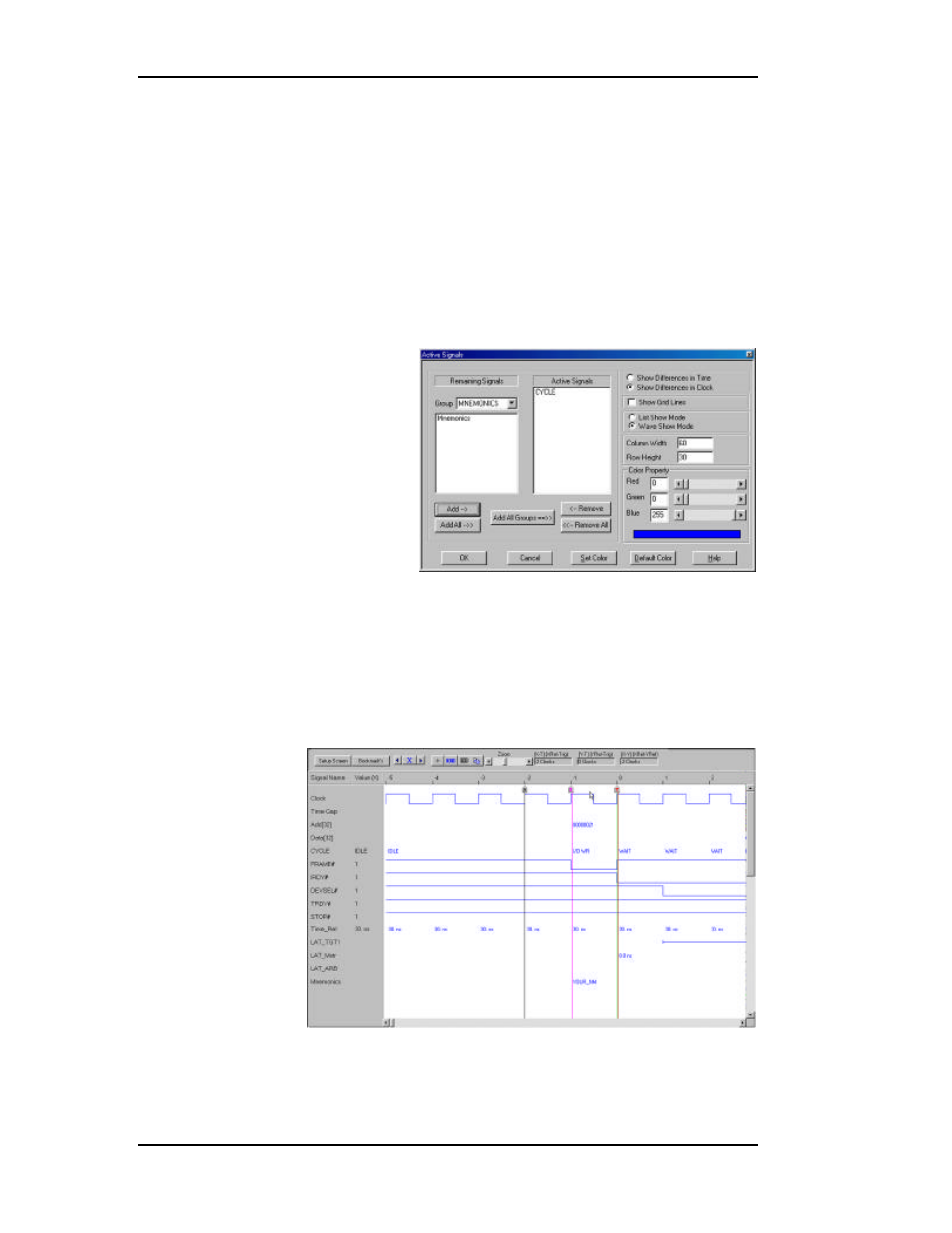

Figure 113 Add Mnemonic to Display
Select MNEMONICS from the Group drop down list, select the
mnemonic to be added and click Add-> and then OK to complete the
operation.
Figure 114 illustrates the search result with a mnemonic.
Figure 114 Searching a Display With a Mnemonic
