TA660 User's Manual Catalyst Enterprises, Inc
80
Programming the Exerciser
1. Click the Exerciser Program tab.
2. Program the Exerciser as described in Programming the Exerciser on
page 55
Save Results If you would like to save the analysis results, click Save
data into the File enter the number of samples you wish to
save and the name of the output file.
Save Settings To save the measurement setup, first select Save to open the
Save As Dialog Box, enter a new file name to save as a
*.pep file and click Save.
3. To perform the analysis Click OK.

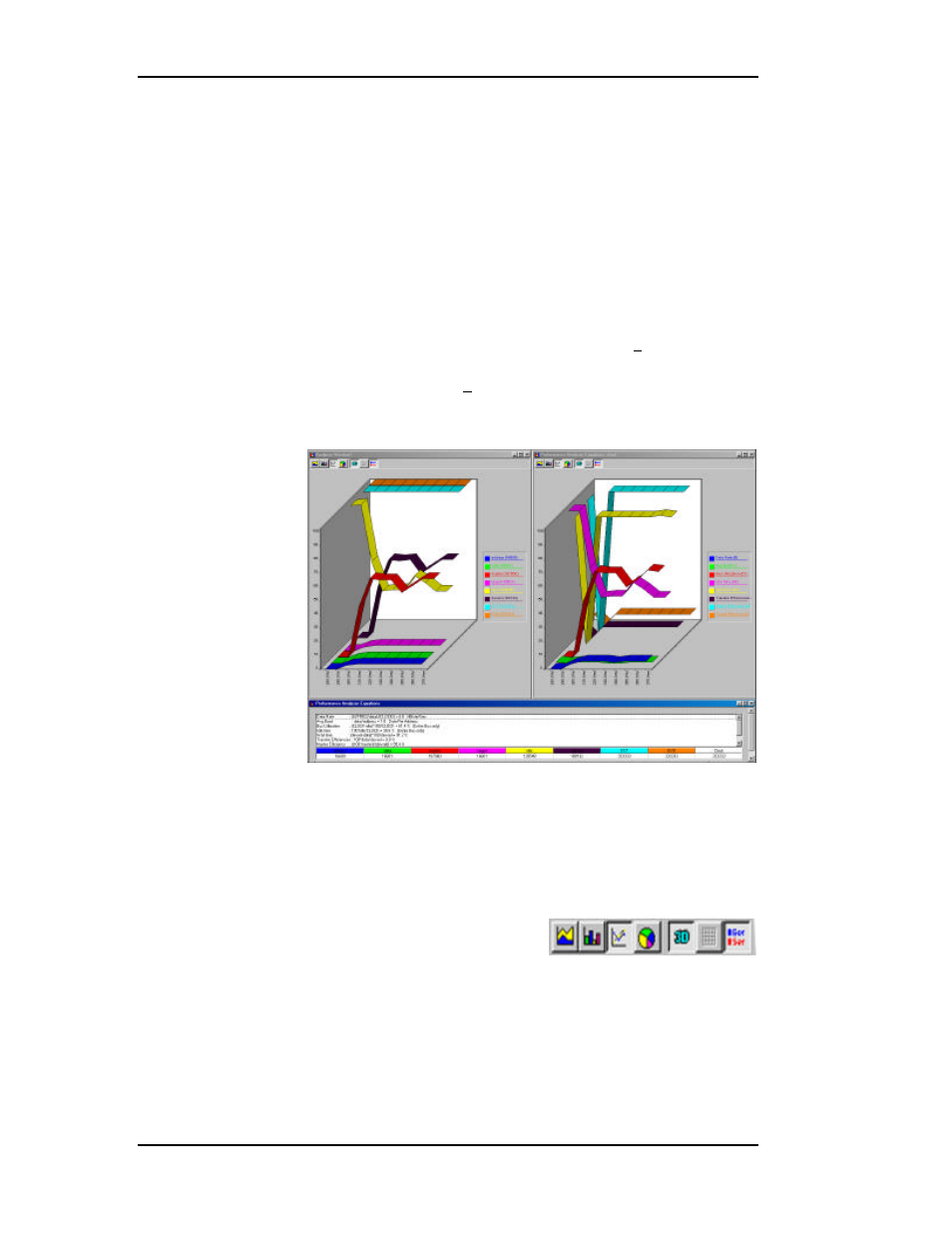

Figure 73 Analysis Real Time Display
4. In the Display area, select any combination from the available
display options, 2D, 3D, Stacked, etc… . From the “Graphic
Settings” in the Performance analysis menu you may select scale for
vertical and horizontal display.
