TA660 User's Manual Catalyst Enterprises, Inc
19
Easy Mode
The Easy Mode offers you the capability to perform 95% of your bus analysis tests
without the need for any programming. When operating in the Easy Mode your analyzer
can perform the following:
•
Capture data and trigger on bus protocol immediately.
•
Perform Timing Violation detection and a search for Setup/Hold
limits.
•
Capture bus activity while exercising the bus.
•
Do Performance analysis on PCI bus activity.
•
Compute Statistics on selected parameters.
•
Perform Compliance Device test.
Instant Data Capture & Trigger

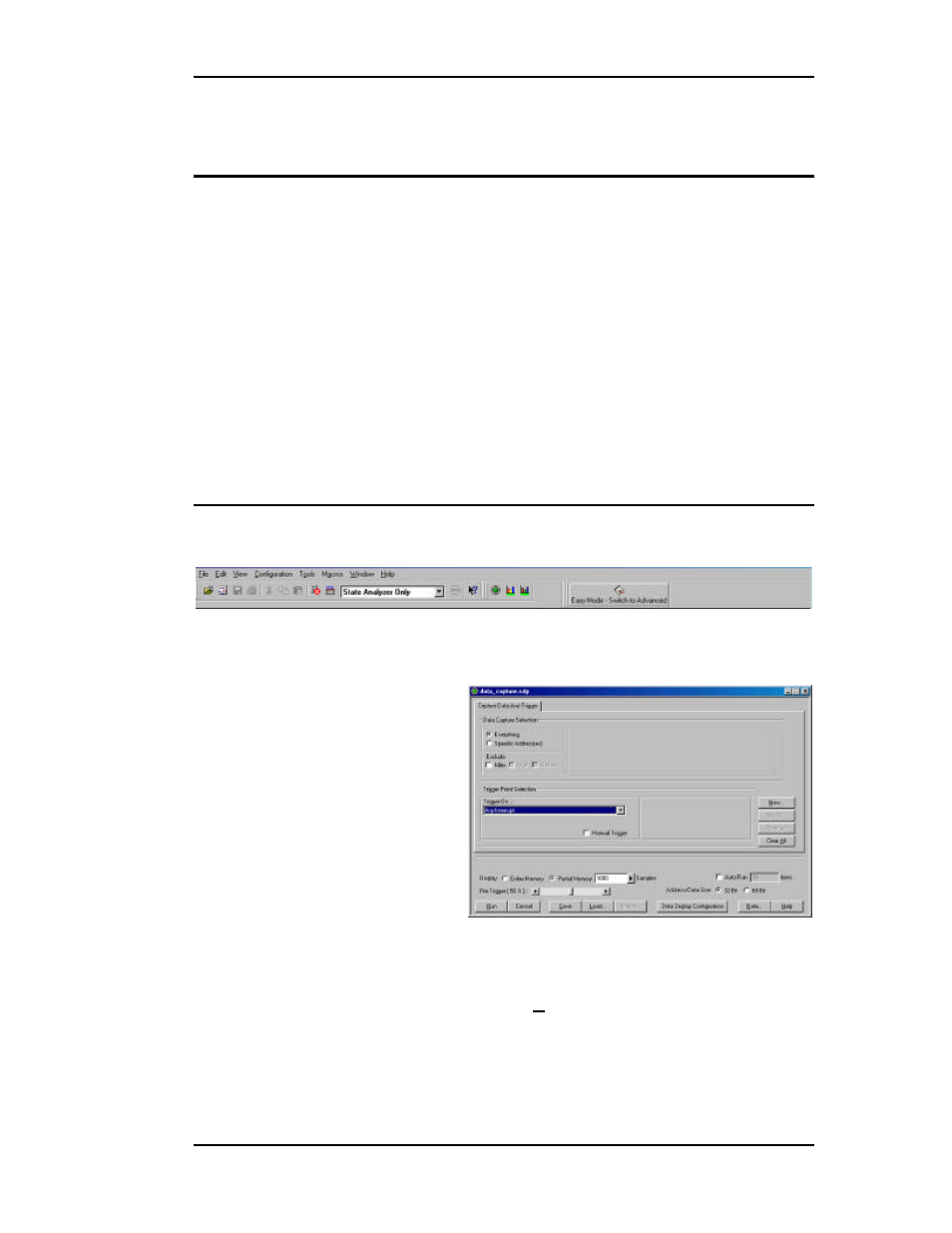

Make sure that the TA660 is in the State Analyzer Only configuration and is operating
in the Easy Mode as shown on the Main Menu bar below.
1. Click the Green button on the Main Menu bar to open the Capture
Data and Trigger dialog box shown in Figure 8.
Figure 8 Capture Data and Trigger Dialog Box
2. Select a Pre-Defined Trigger Point (See Table 1) from the Trigger
On dropdown list and click Run. Wait to capture data and to view
result. Figure 9 and Figure 10 show a typical Wave and List result
display.
