TA660 Analyzer Card

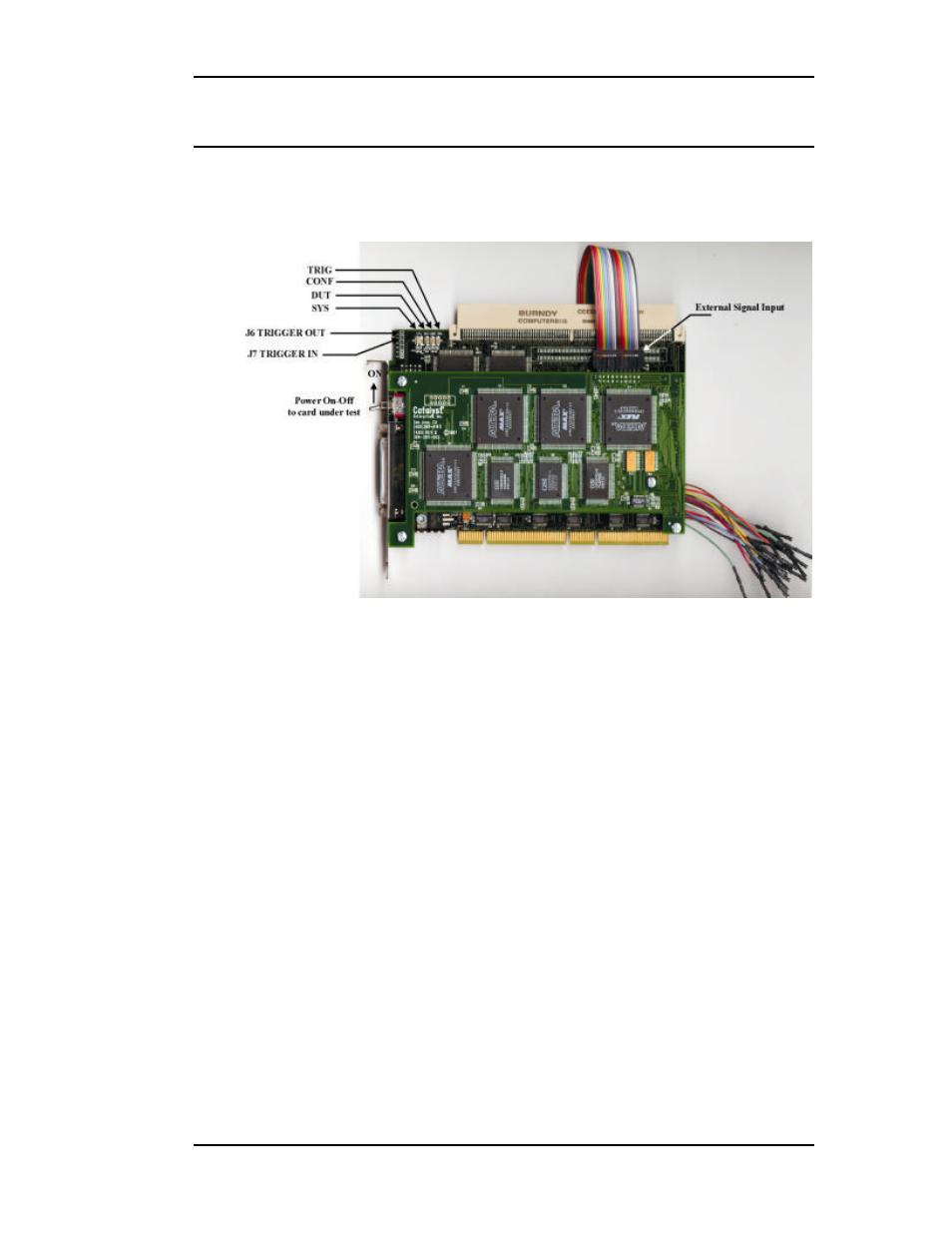

Figure 3 shows a TA660 PCI Analyzer card identifying Status LED
locations , external trigger input and output connections and the
external signal input connector with the supplied cable attached.
Figure 3 TA660 PCI Analyzer Card
Status LED Function Description
SYS When green Indicates if the system voltages are within 5%
of their value. If any of +5V, +3.3V, +12V drop more than
5% the SYS LED turns red. SYS LED also comes up red as
a test on power on and then if the voltages are okay it turns
green once the software is executed. To enable voltages for
sensing see on page 15.
DUT Indicates that the voltage to the DUT is on. In this case the
user may not remove or insert any card in to the top
connector of the TA660.
CONF Indicates that TA660 has been recognized and configured
by the software, therefore the parallel port link is working.
TRIG Indicates that the analyzer has met the trigger condition and
is awaiting for the defined post-trigger data to be captured.
For TA660CA Compact PCI analyzer/exerciser LED status information see APPENDIX
B TA660CA CompactPCI Card.
