TA660 User's Manual Catalyst Enterprises, Inc
34

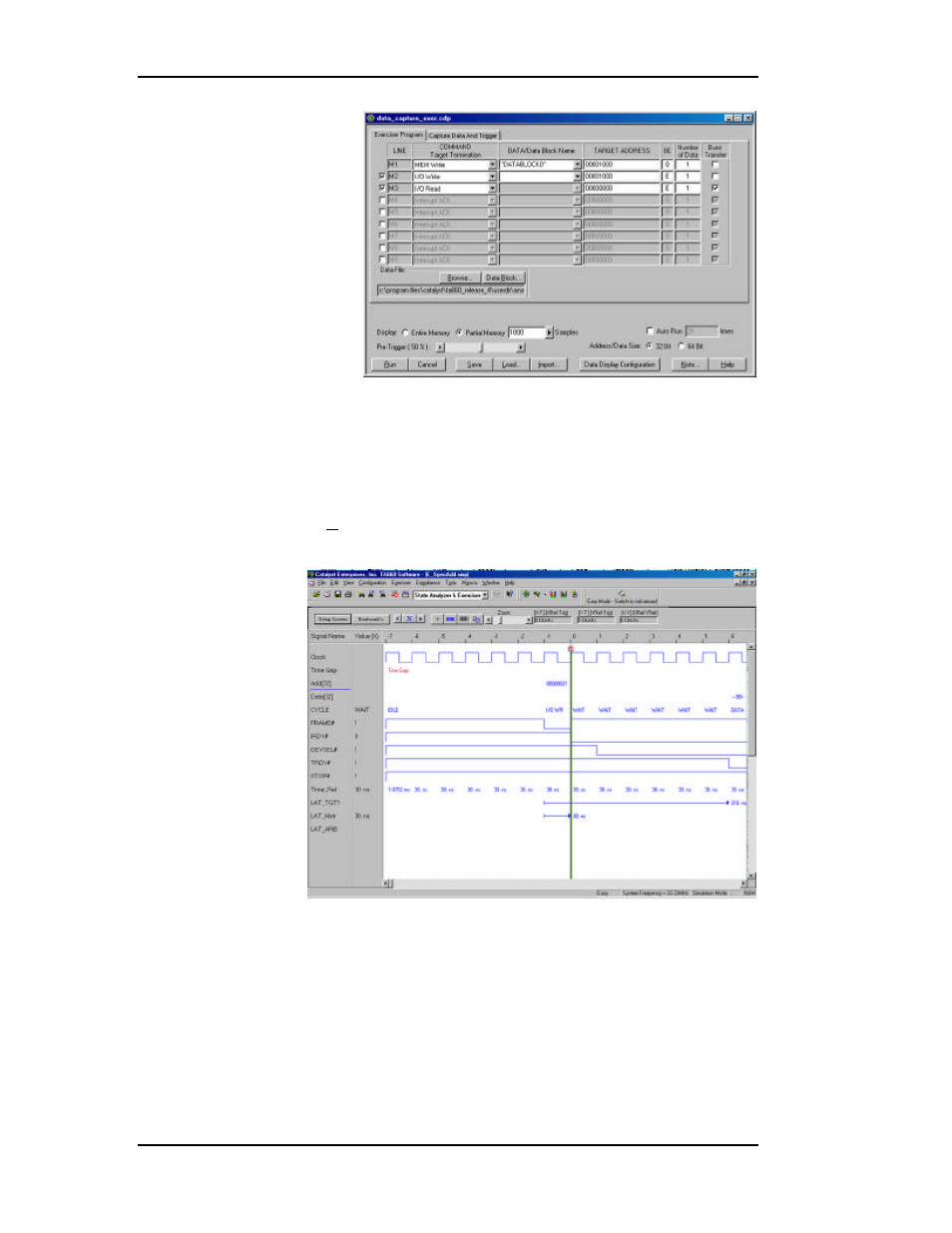

Figure 21 Exerciser Program Definition Dialog Box
2. Define up to 10 exerciser program lines by selecting a command
type, data to be written or a previously defined data block if
applicable, target address, and data size.
3. Click Run to perform data capture and trigger with exerciser
generated signals.
Figure 22 Wave File Output
