TA660 User's Manual Catalyst Enterprises, Inc
126
External Signals
Your analyzer accepts 16 external signals that may be used in
performing Performance analysis and event recognition. These signals
are accessed via an External cable, provided with the analyzer and
they are captured to memory in synch with PCI signals.

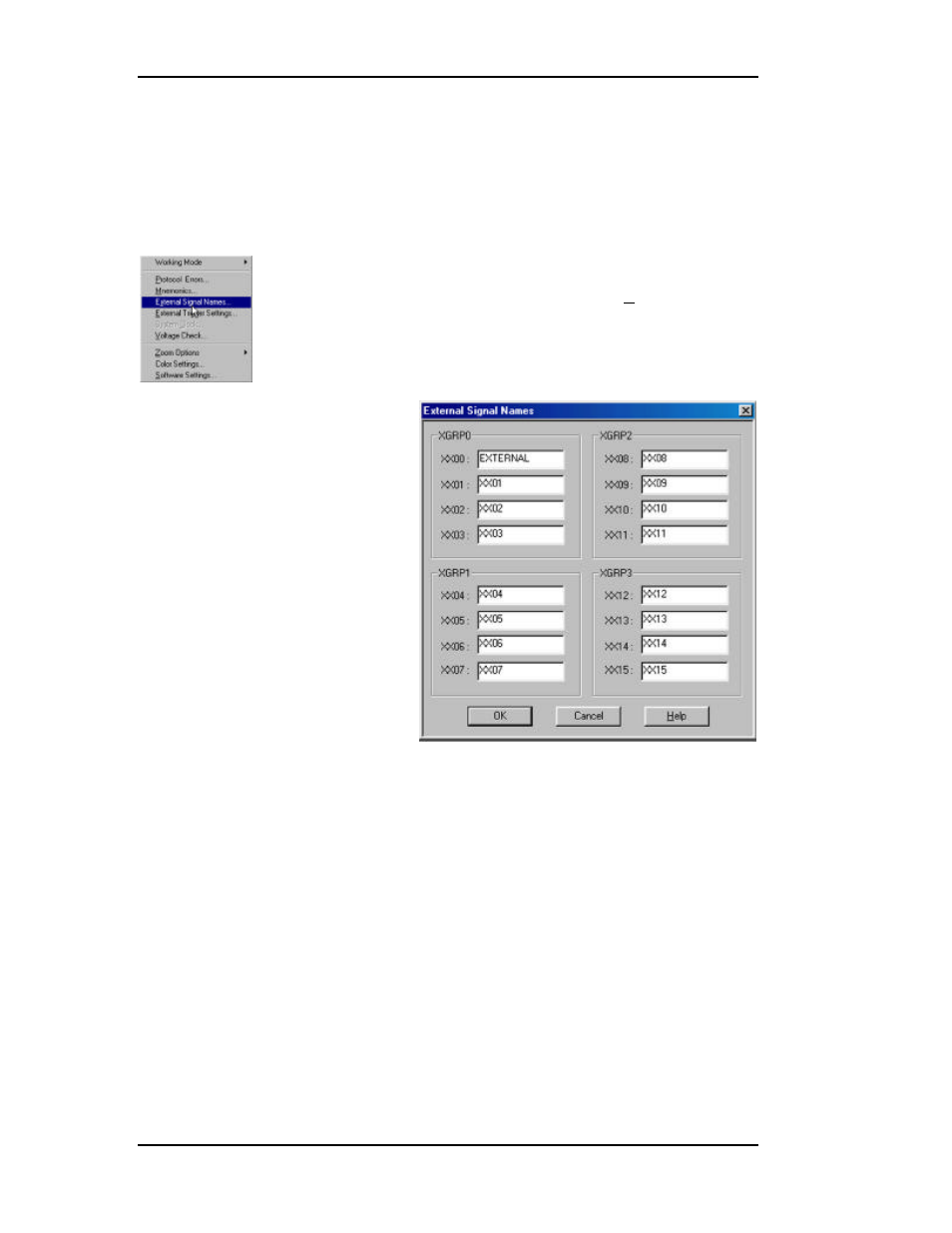

The signals are named XX00 to XX15 by default, and they may
be renamed in the External Signals Dialog Box by the user
selecting External Signal Names. . . from the Configuration list
on the main analyzer menu bar.
The wires in the cable carrying these signals follow the resistor color
code convention as defined in the following table.
