Teledyne LeCroy TA660СА - Manual (Page 102)

TA660 User's Manual Catalyst Enterprises, Inc
96
To view the list file output display, click the List button.

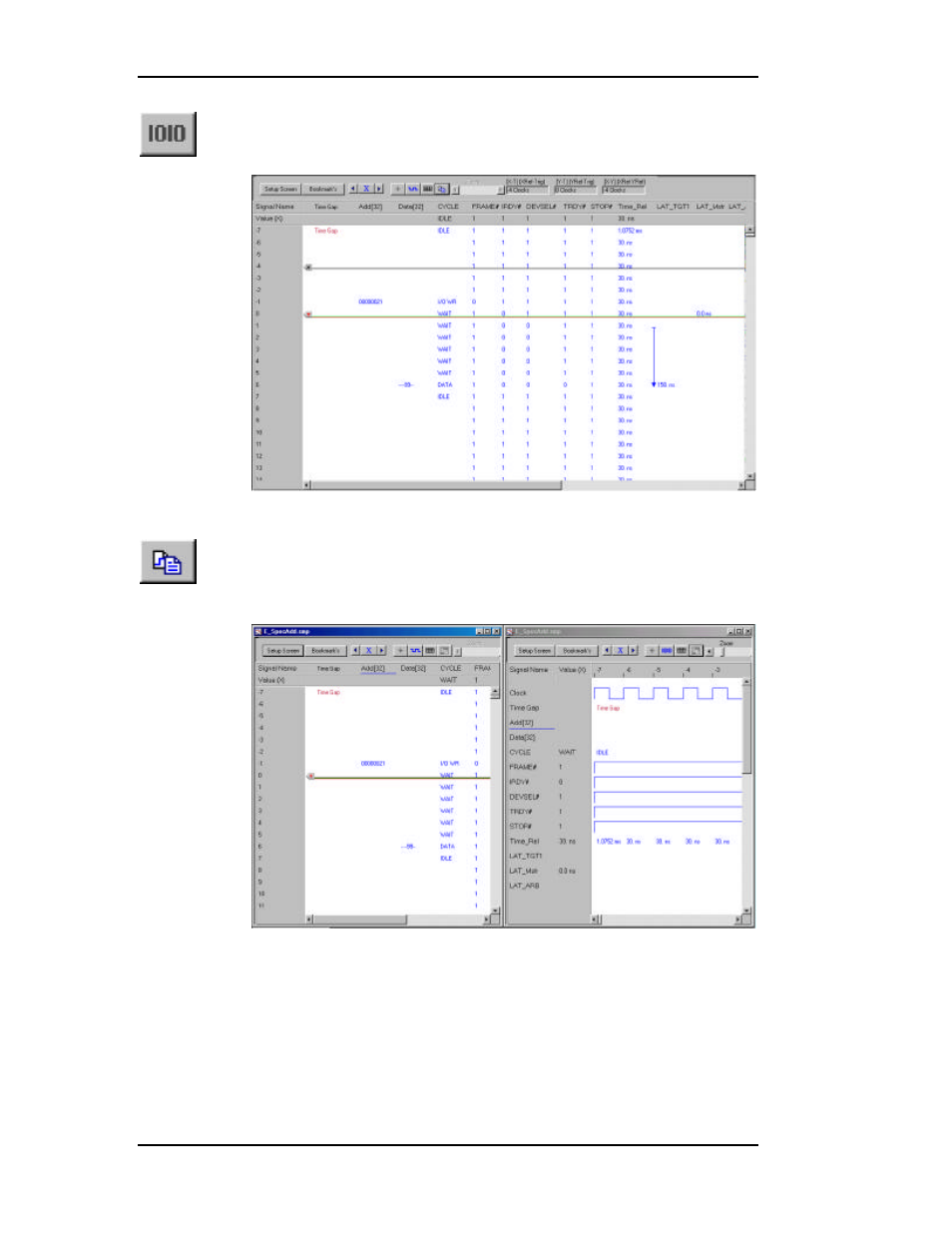

Figure 86 List Data Display
To view the waveform and the list file outputs display
simultaneously, click the split screen button on either, an open
waveform or list display.
Figure 87 Simultaneous Waveform and List Display
Linked Cursors The cursors in the waveform and list windows are linked
such that when you reposition a cursor in one window, the
corresponding cursor in the other window moves to the
same location.
