TA660 User's Manual Catalyst Enterprises, Inc
33
Exercise and Capture

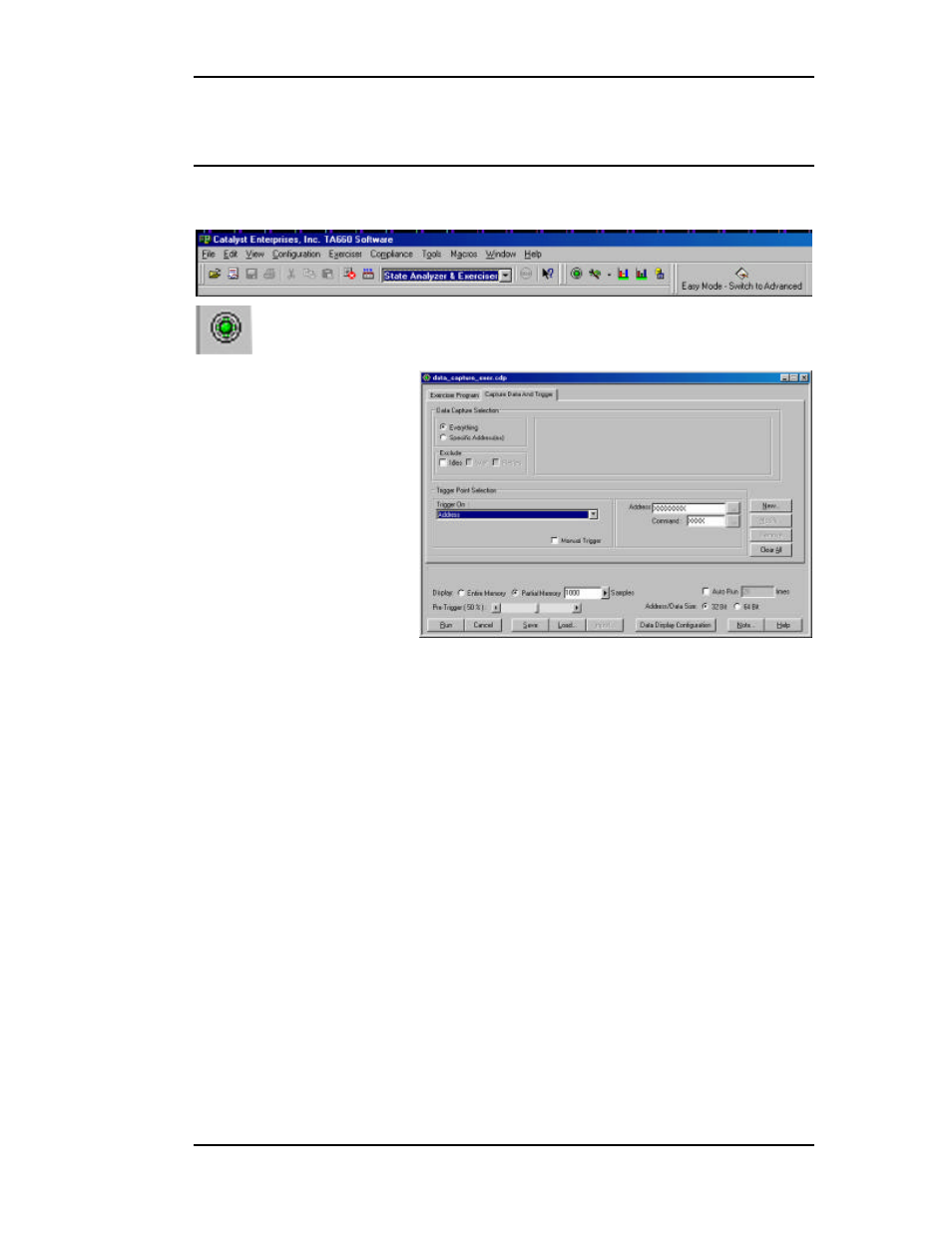

Make sure that the TA660 is in the State Analyzer & Exerciser configuration and is
operating in the Easy Mode as shown on the Main Menu bar below.
Click the Green Icon on the Main Menu bar to open the Capture
Data and Trigger dialog box shown in Figure 20.
Figure 20 Capture Data and Trigger Dialog Box
The data capture and trigger operation behaves identically to that in
the State Analyzer Only configuration with the exception that bus
signals are generated by an exerciser program that you define.
Defining an Exerciser Program
1. Click on the Exerciser Program tab to open the Exerciser Program
definition dialog box as shown in Figure 21.
