TA660 User's Manual Catalyst Enterprises, Inc
57
32/64 Bit Addressing To set 32 or 64 bit addressing mode click the button next to
the DMA size edit box to open the Program Line Properties
dialog box shown in Figure 50.

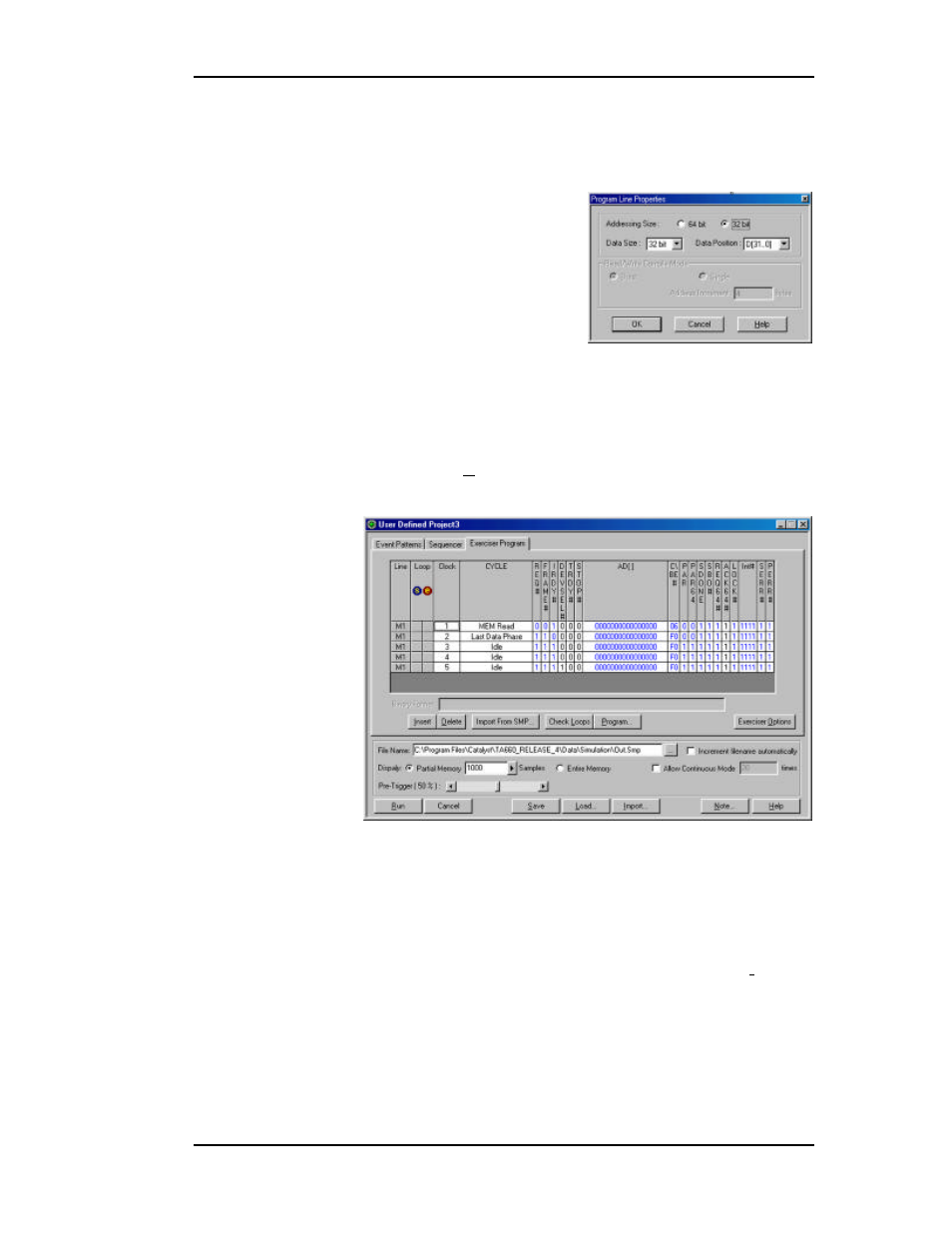

Figure 50 Program Line Properties Dialog Box
5. Set Exerciser options as described in Setting Exerciser Options on
page 58.
6. When done, click Compile . . . to generate the executable exercise
code as displayed in
Figure 51 Compiled Output File With Padding
Forcing Errors : All signals displayed in blue may be changed to force errors
and anomalies.
Wait States Wait states may be inserted by pointing the cursor on the
line where a Wait State is desired and then clicking Insert.
Looping You may define a loop by clicking in the Loop Start column
next to the program line where you wish for the loop to start
and in the Loop End column next to the program line where
you wish for the loop to end. For the loop to execute, you
must enable the loop option when setting the Exerciser
Options.
