TA660 User's Manual Catalyst Enterprises, Inc
116

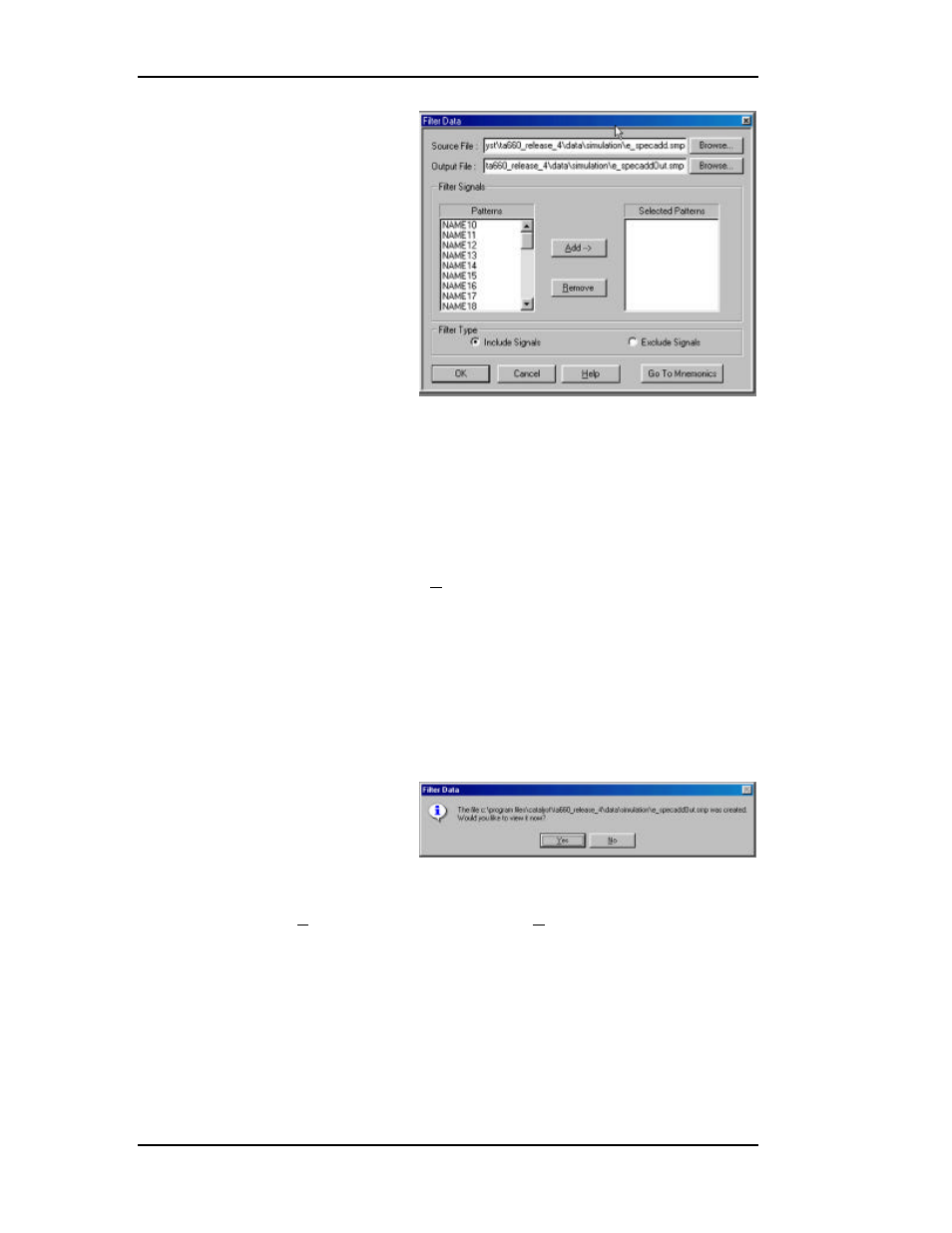

Figure 105 Filter Data Dialog Box
To configure the filter:
1. Select the Source file to be filtered and an Output File which is the
destination file for the filtered results.
2. Select the desired Filter signal mnemonics one at a time from the
Patterns list and click Add-> to include them in the Selected Patterns
List.
3. Determine the filter type by checking the Include or Exclude Signals
button to define if the patterns are to be included or excluded from
filtering.
4. Click Ok
After a short time the Filter Data complete dialog box opens.
Figure 106 Filter Data Complete Dialog Box
Click Yes to view the filtered file or No to view it later. You may
view and search the filtered file as any other data file.
