TA660 User's Manual Catalyst Enterprises, Inc
23
Data Capture & Trigger Examples
The capture data and trigger dialog box changes depending on the
type of Trigger On chosen. The following are some examples.
Signal on shorter than nnn times. When this Trigger On selection is chosen,
note the additional List Box for selecting a signal and the
Edit Box for specifying the number of times.

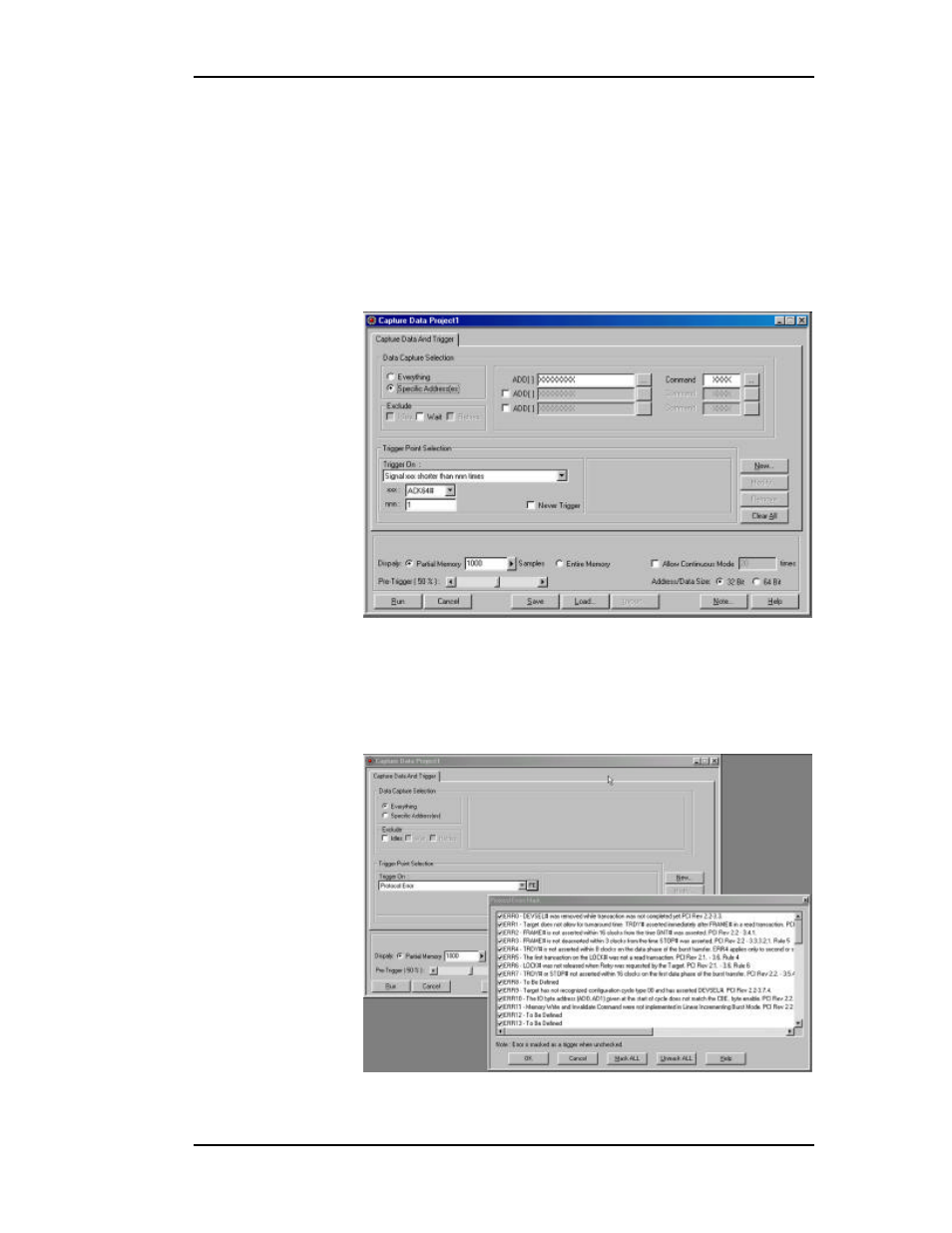

Figure 13 Specify Signal And Number of Times
Protocol Errors When this Trigger On selection is chosen, note the PE
button next to the Trigger On list box. Clicking this button
opens the Protocol Error mask.
Figure 14 Trigger on Protocol Error
