TA660 User's Manual Catalyst Enterprises, Inc
106
External Signals Pattern To search external signals, click the ellipses button
next to the External Signals Pattern edit box and define the
external signal patterns.

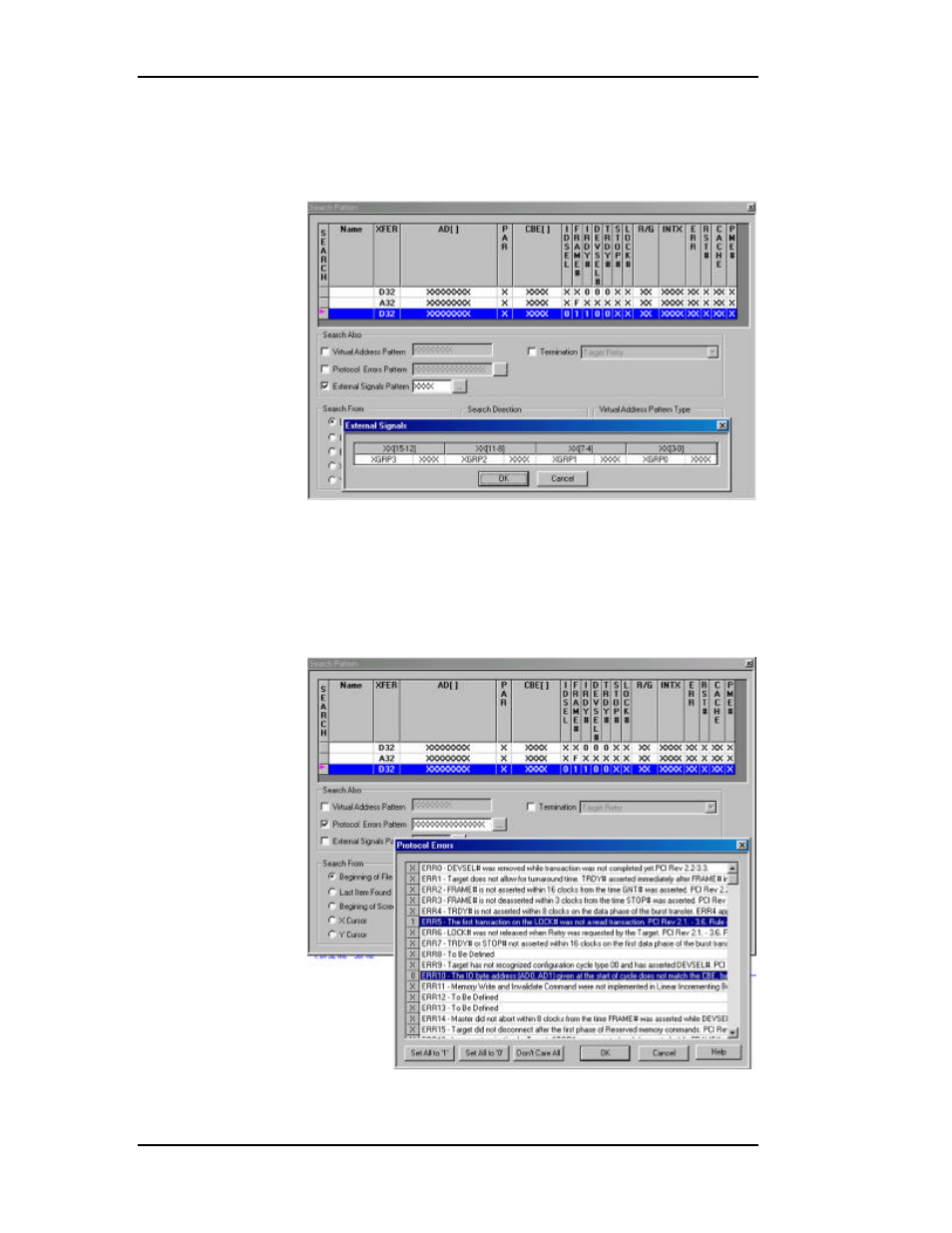

Figure 97 Defining External Signals Patterns
Protocol Errors Pattern To search with protocol error patterns, click the
ellipses button next to the Protocol Errors Patterns edit box
and define the Protocol error pattern by clicking the don’t
care X repeatedly to set it to a 1 or 0 as desired.
Figure 98 Search Also Protocol Errors
