TA660 User's Manual Catalyst Enterprises, Inc
49
Perform Timing Analysis
Make sure that the TA660 is in the State & timing Analyzer configuration and is
operating in the Easy Mode as shown on the Main Menu bar below.
In this mode you may immediately detect and capture timing
violations on all bus signals. Any bus "glitch" of 1.5 ns or greater is
captured as a timing violation.
You may also perform a Setup/Hold Limits search on any or all PCI
bus signals by using a convenient signal mask.
To perform an immediate timing analysis, click the Timing
Violation Icon to open the Timing Violation Analysis dialog box.

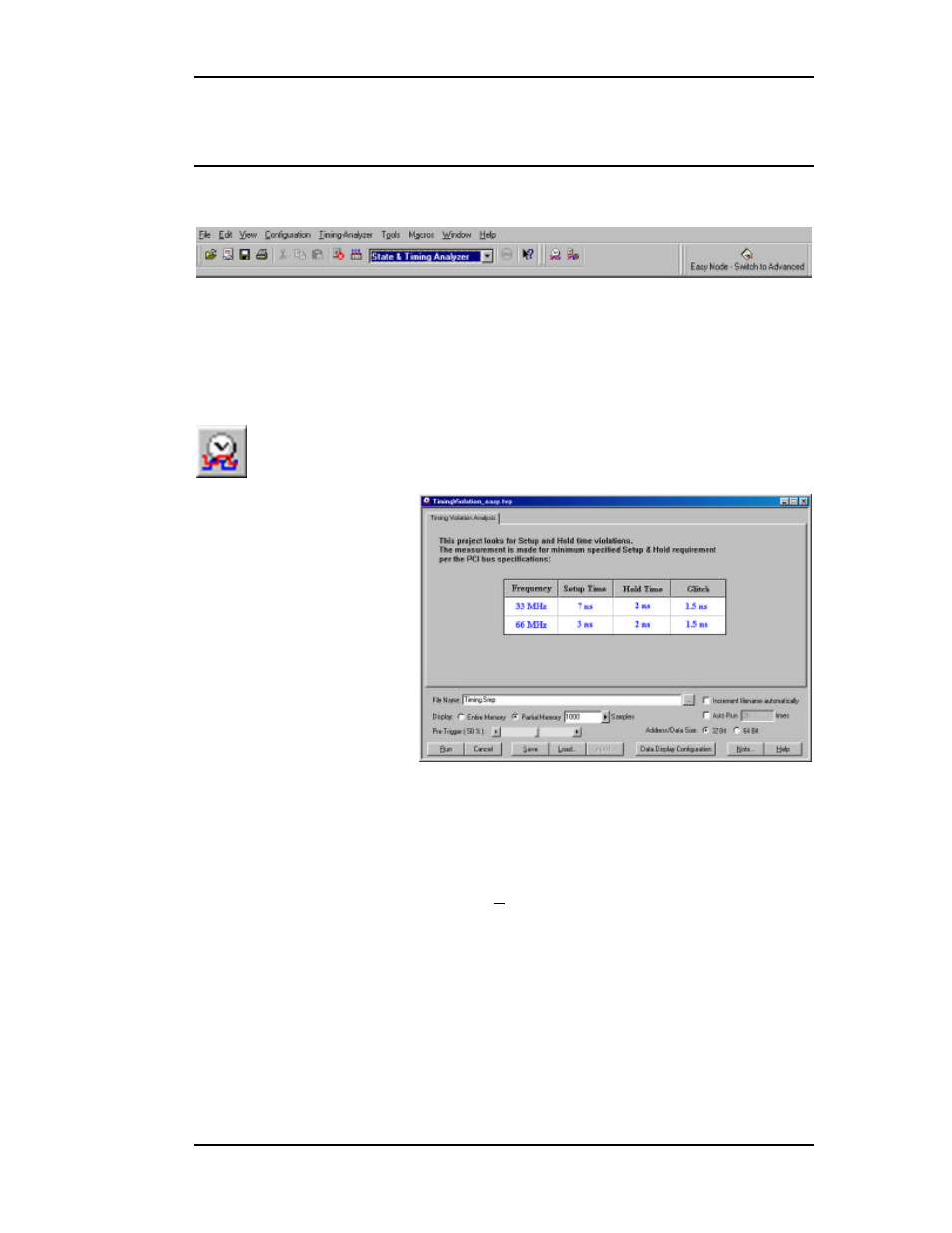

Figure 44 Timing Violation Analysis Dialog Box
Timing Violation Capture
1. Set the desired data capture options such as Pre-Trigger %, Display
Memory etc. and click Run.
The occurrence of the first timing violation will cause a trigger and
open the Timing Violation Results display as shown in Figure 45.
