Generate Traffic and Measure Trace Statistics
Make sure that the TA660 is in the State Analyzer & Exerciser configuration and is
operating in the Easy Mode as shown on the Main Menu bar below.
Click the Trace Statistics Icon on the menu bar to open the
Trace Statistics dialog box as shown in Figure 43.

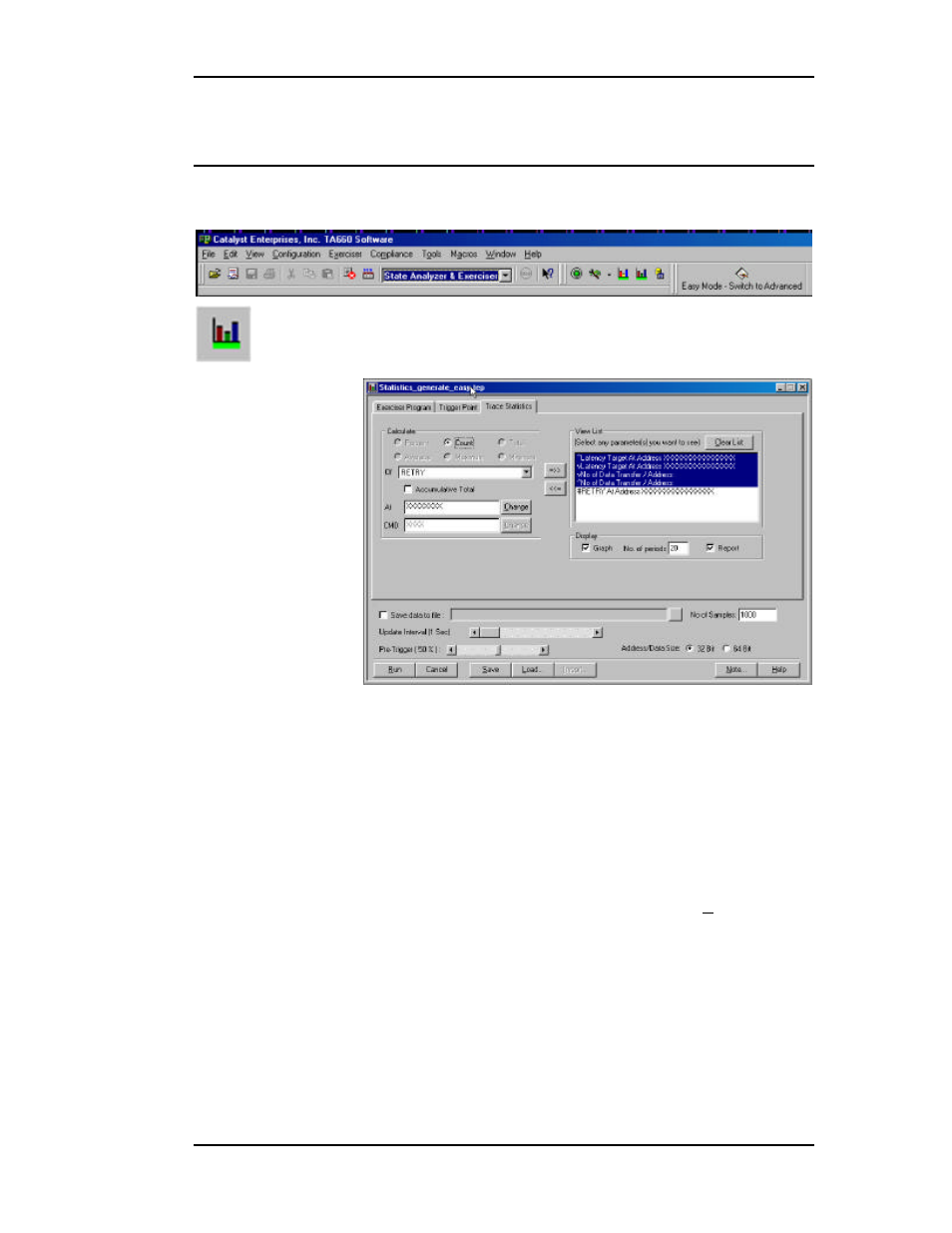

Figure 43 Trace Statistics With Exerciser
To obtain Trace Statistics with the exerciser:
1. Set the trace statistics options and the Trigger Point as described in
Obtaining Trace Statistics on page 27.
2. Click the Exerciser Tab and define the Exerciser Program as
described in Defining an Exerciser Program on page 33.
3. When all the parameters have been specified, click Run to capture
the specified data and perform the statistics reporting.
