To review the previously saved performance analysis you may drag
the scroll bar on the Play Control Panel to the desired location or
command it to step through automatically.
Trace Statistics
Trace Statistics analysis is implemented by capturing data in memory
and then post processing it with software. The analysis software is
capable of measuring important parameters such as Minimum and
Maximum latency occurrences for any target or user defined specific
target, command utilization such as how many times an I/O write
versus I/O read occurs or, how many times memory commands occur.
on page 31 Lists the parameters that you may select for a report.
Click the Trace Statistics Icon on the menu bar to open the
Trace Statistics dialog box.

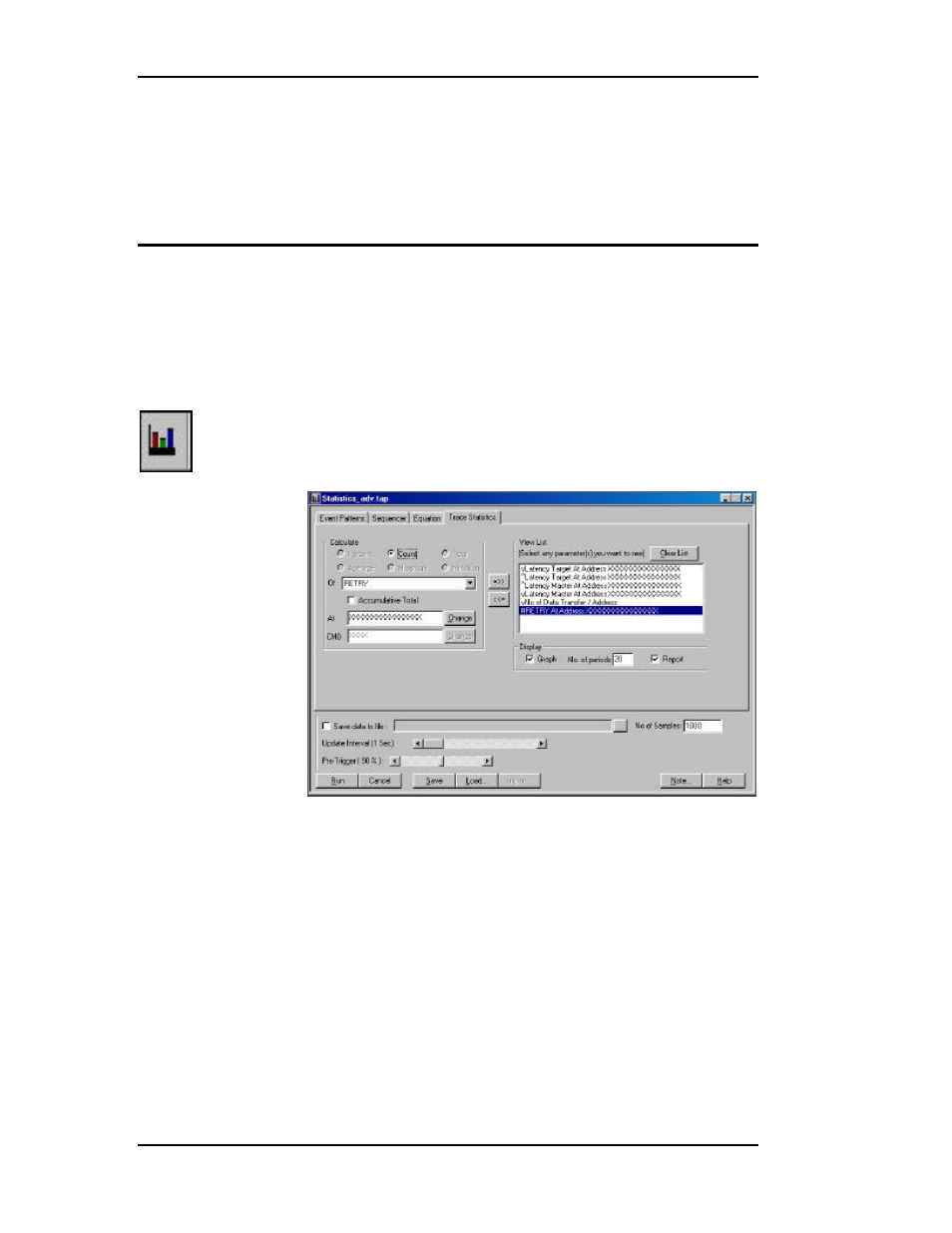

Figure 75 Trace Statistics Dialog Box
Creating a New Trace Project
To create a new trace project you must define/program:
•
Trace Statistics Options.
•
Event Patterns
•
A sequencer program
•
Analysis Equations
•
An Exerciser Program
