Front Face Configuration – Single Loop Lab
3 - 3

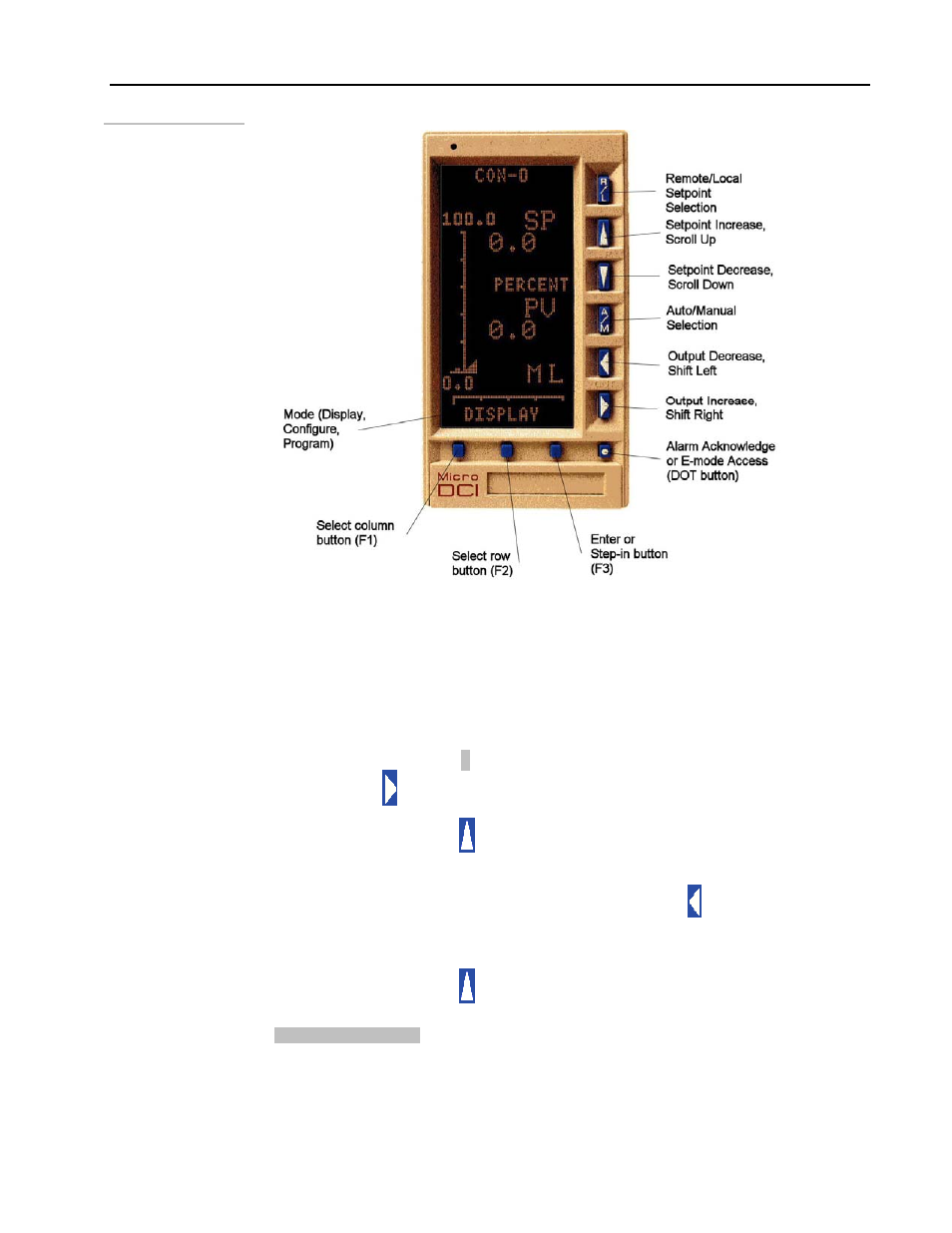

Figure 3 .2.
MC 5000 display
and buttons
2. Select the data point B0 to default the controller (to return the instrument’s
configuration to factory default settings):
• Be certain that the “cursor”
L
is in the right most character position by pressing the
output increase pushbutton.
• Press the setpoint-increase pushbutton until the letter B is located in the lower
right corner of the display.
• Move the letter B to the left by pressing the output decrease pushbutton once.
You will now notice that the letter B moves to the left one character position and a
blank character position is added.
• Press the setpoint-increase pushbutton until the number 0 is displayed next to
the “B” character. The bottom line of the display should look like:
POINT
L
B0
