Training Manual
Micro-Tools Lab
8 - 22

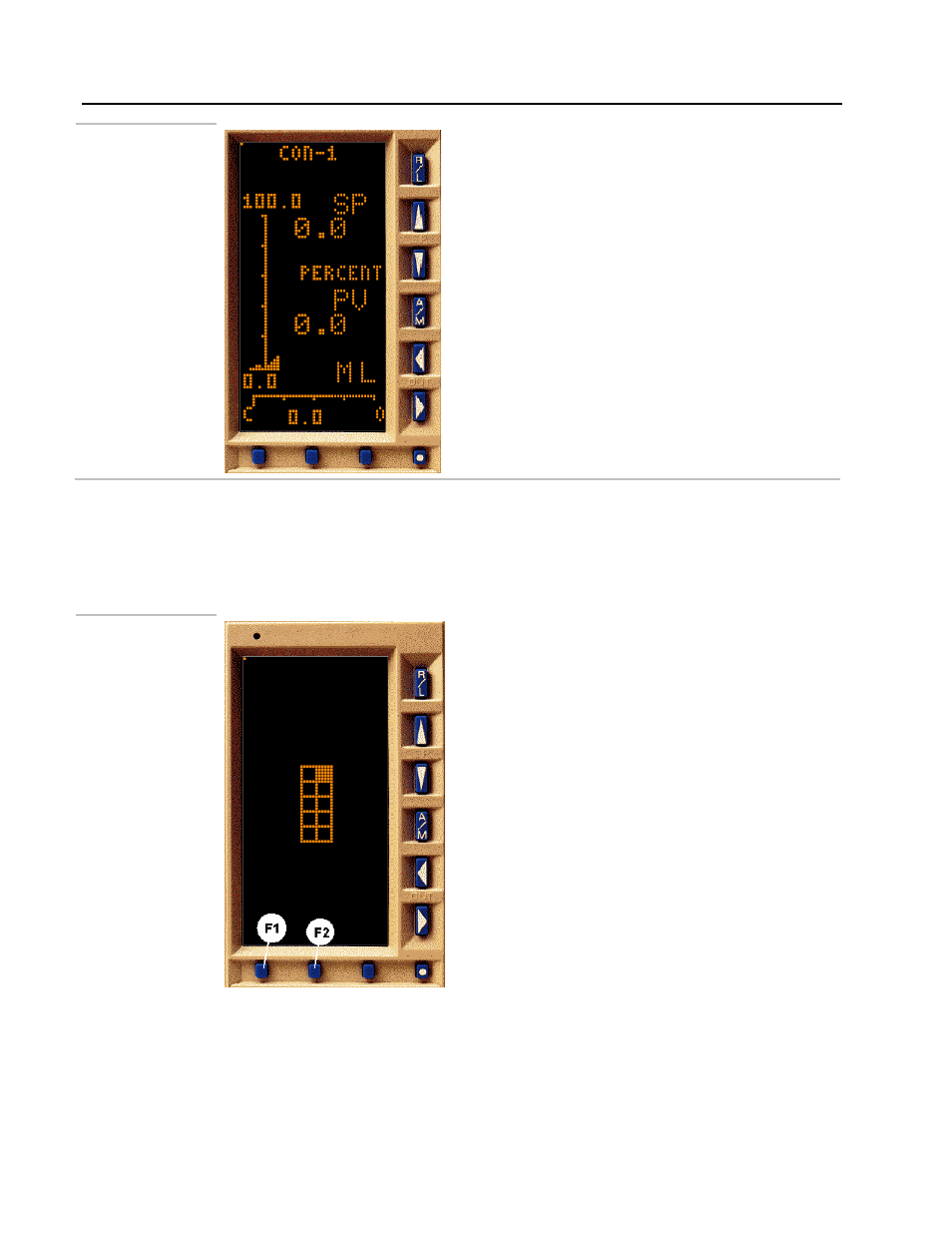

Figure 8.31.
Two loop control
11. View the loop displays: As in the Single loop strategy, there are displays for both the
control loops in the two loop strategy.
• Press and hold either the F1 or the F2 button on the controller to show the
overview display on the face of the controller. The display grid will be displayed
as shown below: Notice that there are 5 rows and 2 columns in the grid.
Figure 8.32.
Overview Display
• You can press the F1 or F2 button to switch to different displays on the instrument.
When there are more then two columns of displays, the F1 button is used to move
horizontally in the grid. The F2 button is used to move vertically in the grid.
