Micromod Micro-DCI: 53MC5000 Training Manual - Manual (Page 169)

Training Manual
F-TRAN Programming Lab
10- 23
• Select the Control F-TRAN Programs options by clicking on the button beside it.
Click on the button with the 3 dots. A list box, as shown below, will be displayed
showing the available Control F-TRAN programs. Select Ftran2 from the Exclude
list on the left and then click on the Add button to add this program to the Include
list.

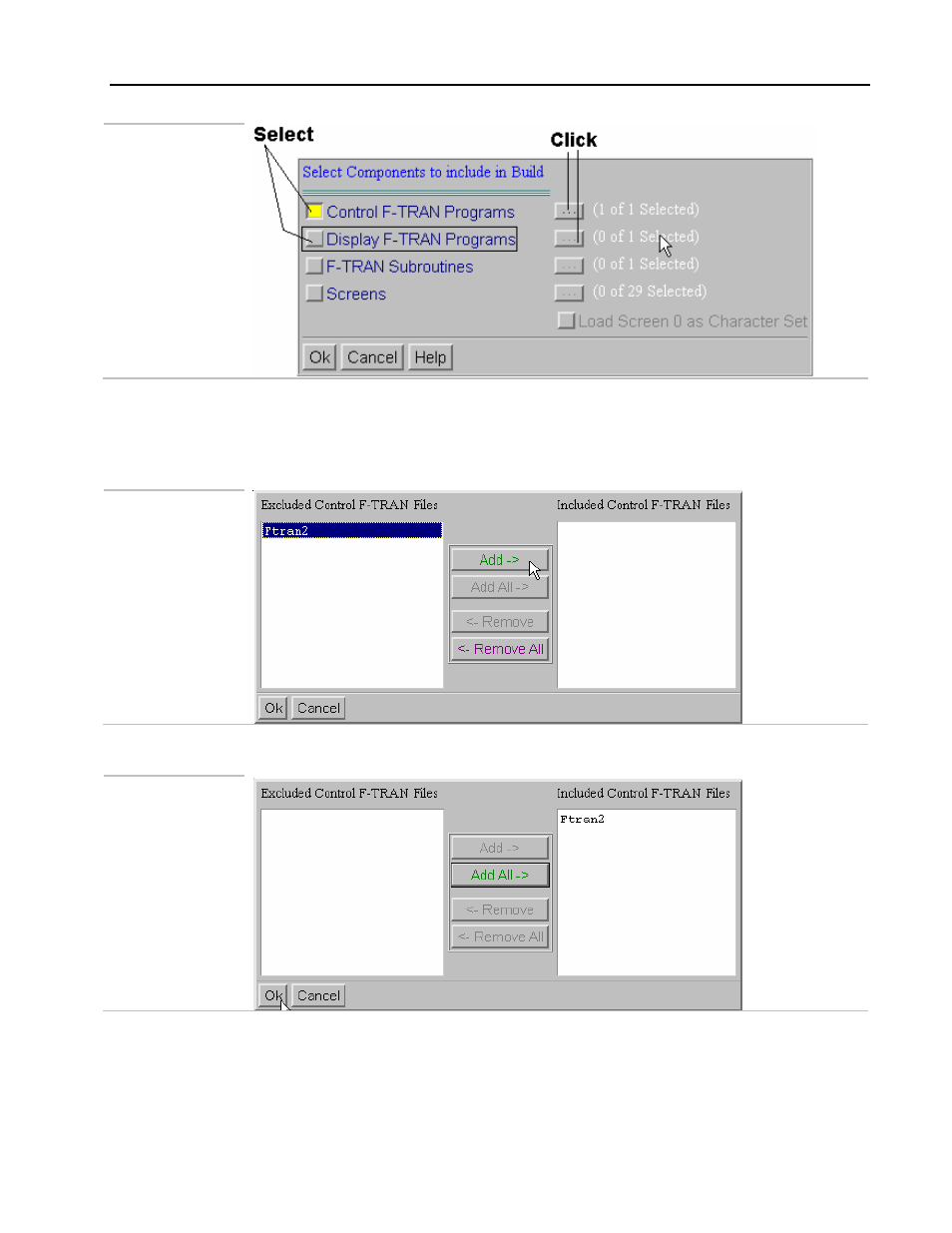

Figure 10.35.
F-TRAN Build
• The selected file will be added to the Include list on the right as shown in the next
figure.
Figure 10.36.
F-TRAN Build
• Click the OK button on this menu to accept the selection. Now the Build Options
menu will be redisplayed as shown in the next figure.
