• Program Step 01 from here. Refer to the Worksheet in Table 9-3 for the function

code and inputs A, B and C. Follow the same procedure as the previous step except
for the values to be entered.

• If no changes are to be made to a particular data position, press the F2 key to cycle

to the next data position. Refer to the F-CIM Program Flow diagram in Figure 9-15
for help.

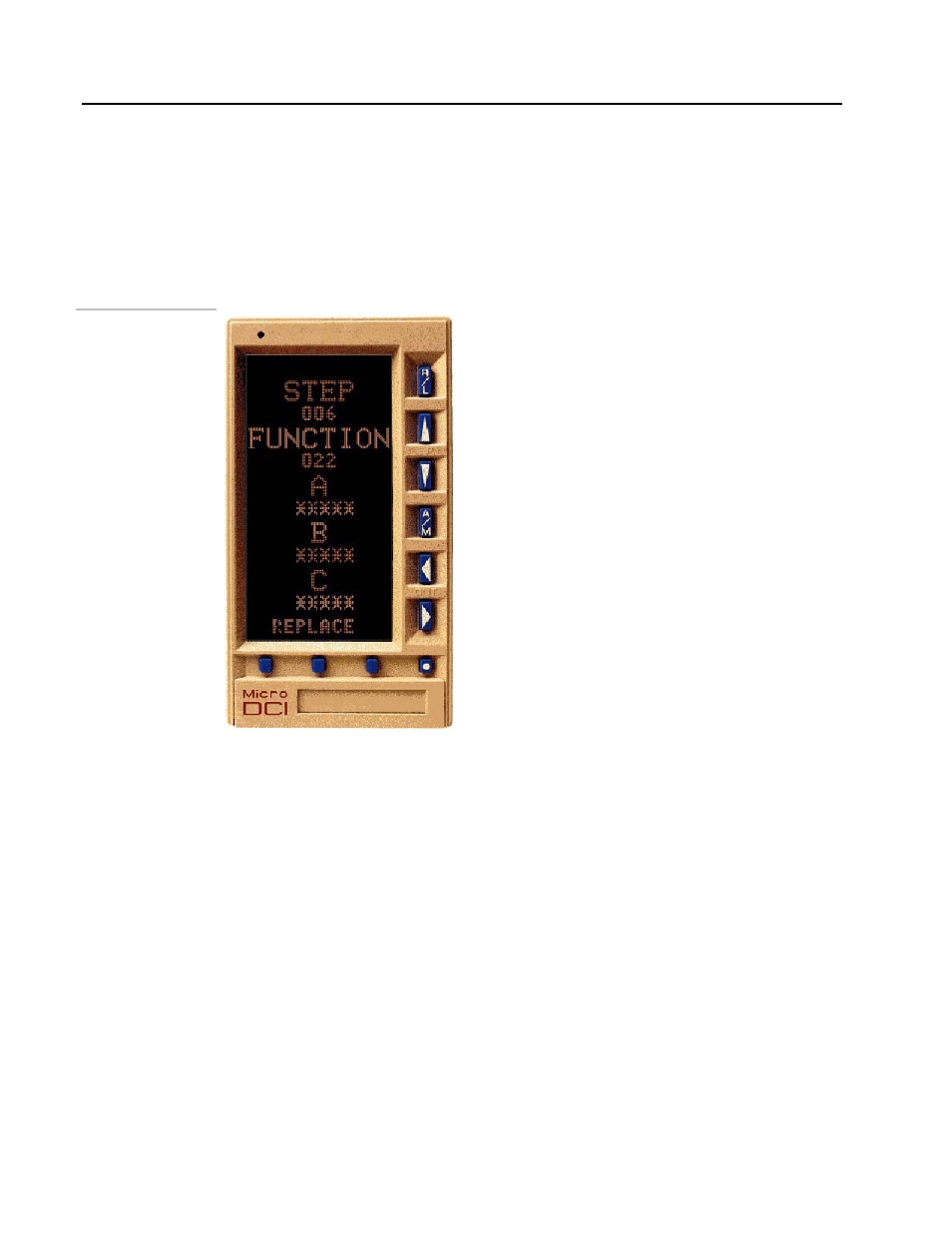

• After you have entered Steps 02 through 06, at the end of Step 06, your display

should look like the next figure:

Figure 9.18.

FCIM BUILD

9.

Exit the Build mode:

• Press the F1 button now. Your display should look like the figure below:
