C
LASS OF
S
ERVICE
14-8
Command Attributes
• WRR Setting Table 23 – Displays a list of weights for each traffic class
(i.e., queue).
• Weight Value – Set a new weight for the selected traffic class.
(Range: 0-15)
Use queue weights 1-15 for queues allocated service time based on WRR.
Queue weights must be configured in ascendant manner, assigning more
weight to each higher numbered queue. Use queue weight zero to
indicate a high-priority queue (processed first based on strict priority)
when using the hybrid queue mode.
Web – Click Priority, Queue Scheduling. Select the interface, highlight a
traffic class (i.e., output queue), enter a weight, then click Apply.

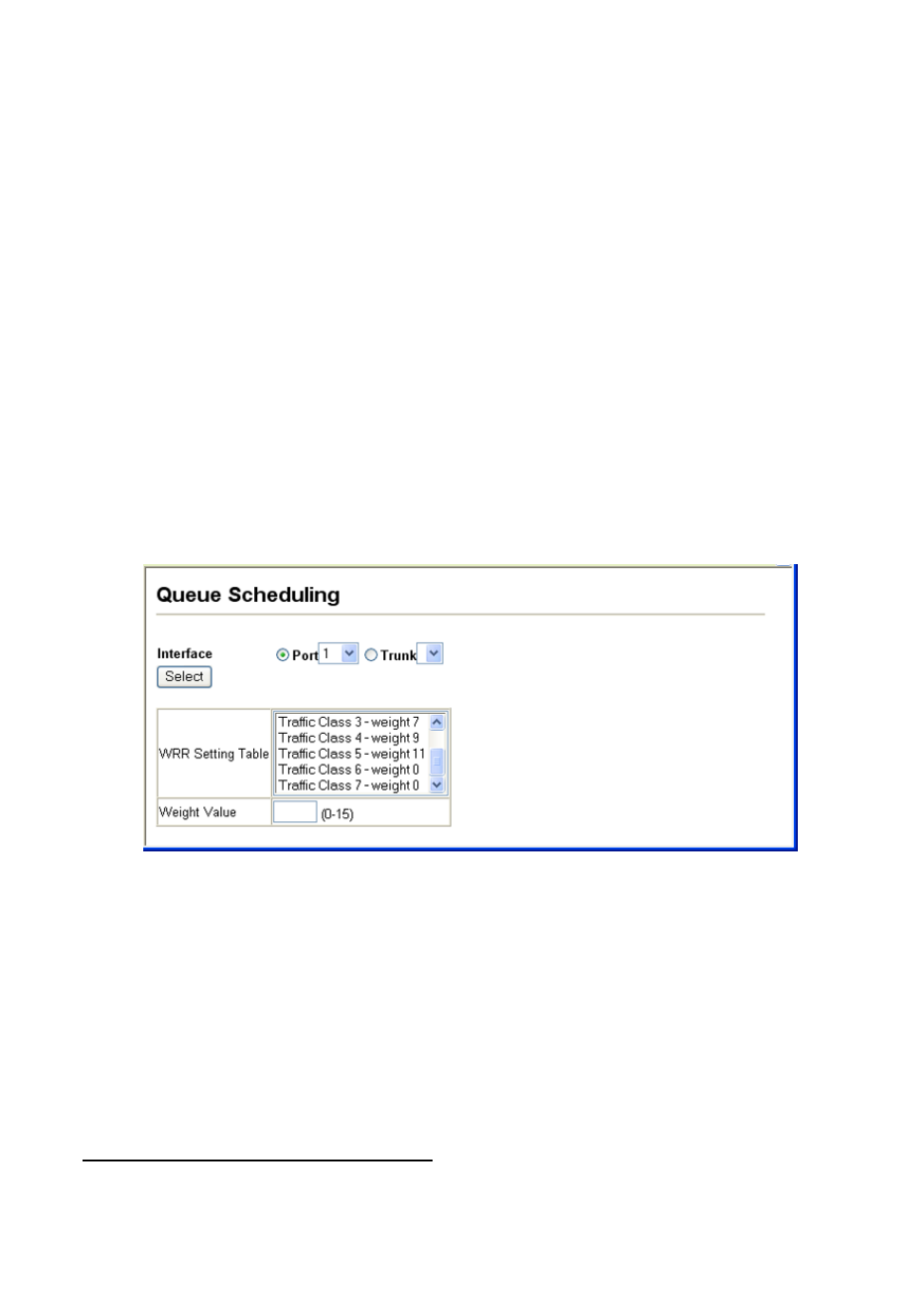

Figure 14-4 Queue Scheduling
23. CLI shows Queue ID.
