LOGIC
5-51
Chapter 5

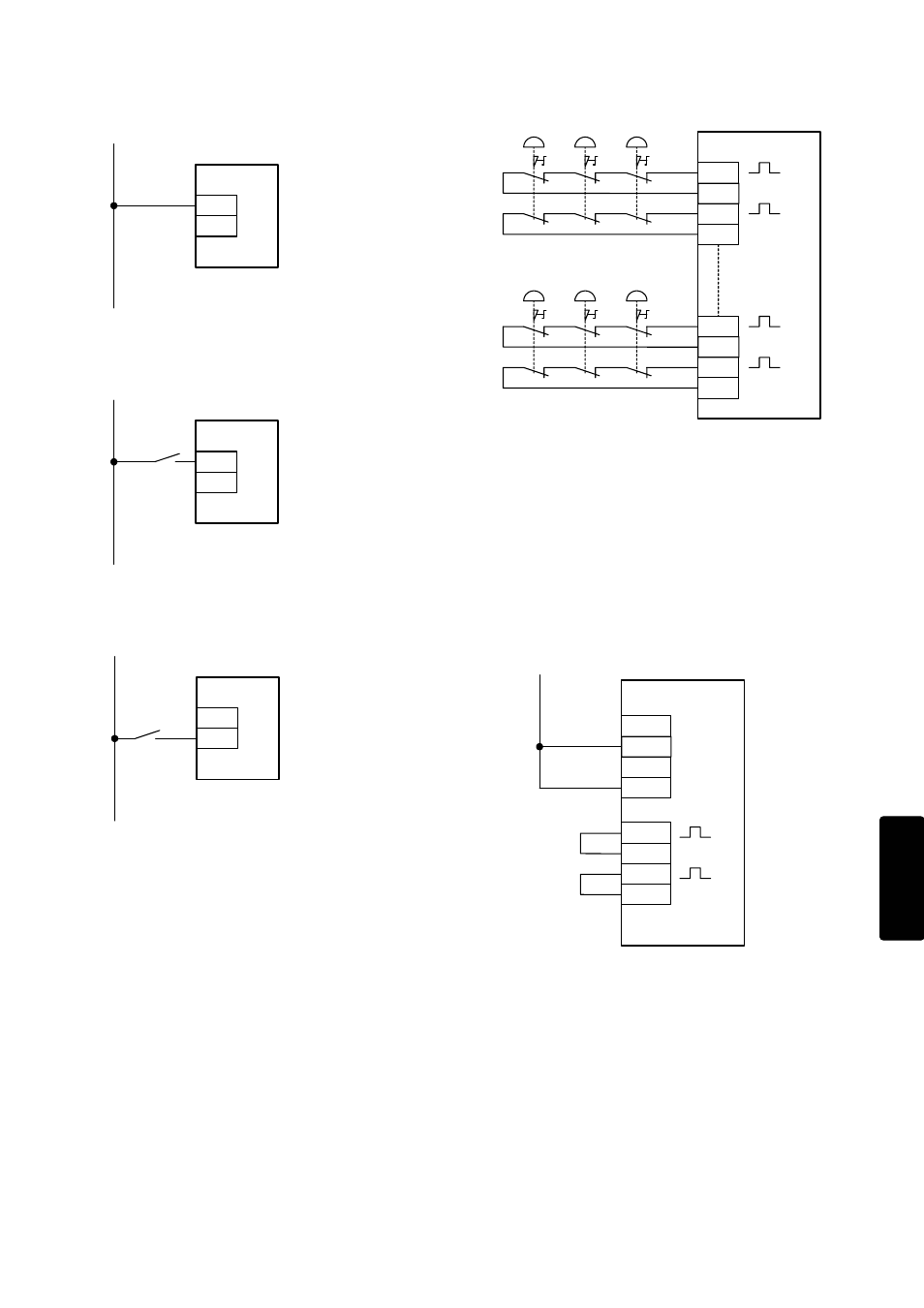

When not using the start switch
（
Auto start）
When not detecting the welding of start switch
（
Manual start）
When detecting the welding of start switch
（
Control start）
When connecting multiple components in series
NOTE: Safety performance depends
on the system configuration.
When not using some safety inputs
・ If there are unused safety inputs in S1 and S2,
connect the unused receive terminals
to 24V DC power supply (V+). (Refer to (1))
・
If there are unused safety inputs in S3 to S6,
connect the unused receive terminals
to the corresponding drive terminals. (Refer to (2))
X16
X17
24V DC
X16
X17
24V DC
S7
24V DC
X16
X17 S7
X4
X5
T4
T5
X12
T12
X13
T13
X n
X n+1
T n
T n+1
24V DC
X m
X m+1
T m
T m+1
(1)
(2)
