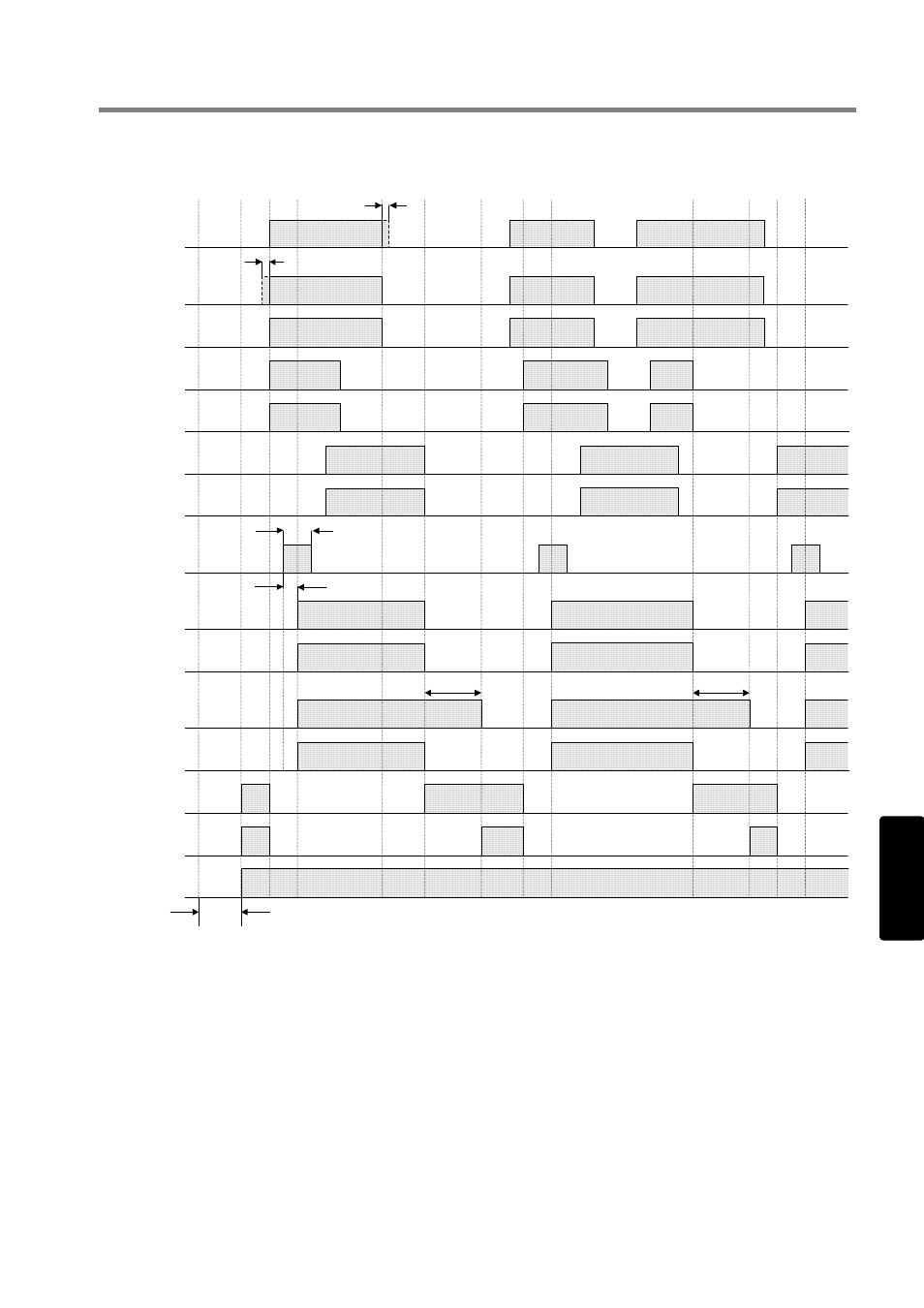

Timing chart (Logic 12C)
Example: Manual start input (X16) is used.
Min. 0.1s
Max. 0.1s
Safety input 1: X0
Start input 1: X16
(Manual)
Monitor output for
safety input 1: Y4
State monitor output 3:
Y16
Solenoid output 1:
Y17
Safety input 1: X1
Max. 6s
Initialization
Safety input 2:
X2, X3
Safety output 1:
Y0, Y1
Monitor output for Safety
output 1: Y12
Safety output 2:
Y2, Y3
Monitor output for Safety
output 2: Y13
Solenoid output 2:
Y20
Monitor output for
safety input 2: Y5
Safety input 3:
X4, X5
Monitor output for
safety input 3: Y6
note 1)
note 1)
Power
ON
Safety
output
ON
Safety
output
ON
Safety
output
ON
OFF delay time OFF delay time
(Safety input 4, 5 and 6 are all ON in this chart.)
Note 1) Input monitor error detection time is 0.5s.
About safety inputs that are not described in this chart, input monitor error detection time is as follows.
The time of dual channel direct opening input (X4, X5 and X10 to X13) is 0.5s.
The time of dual channel safety input (X2, X3, X6 and X7) is 0.1s.
Refer to the following “Logic functions” for more details.
