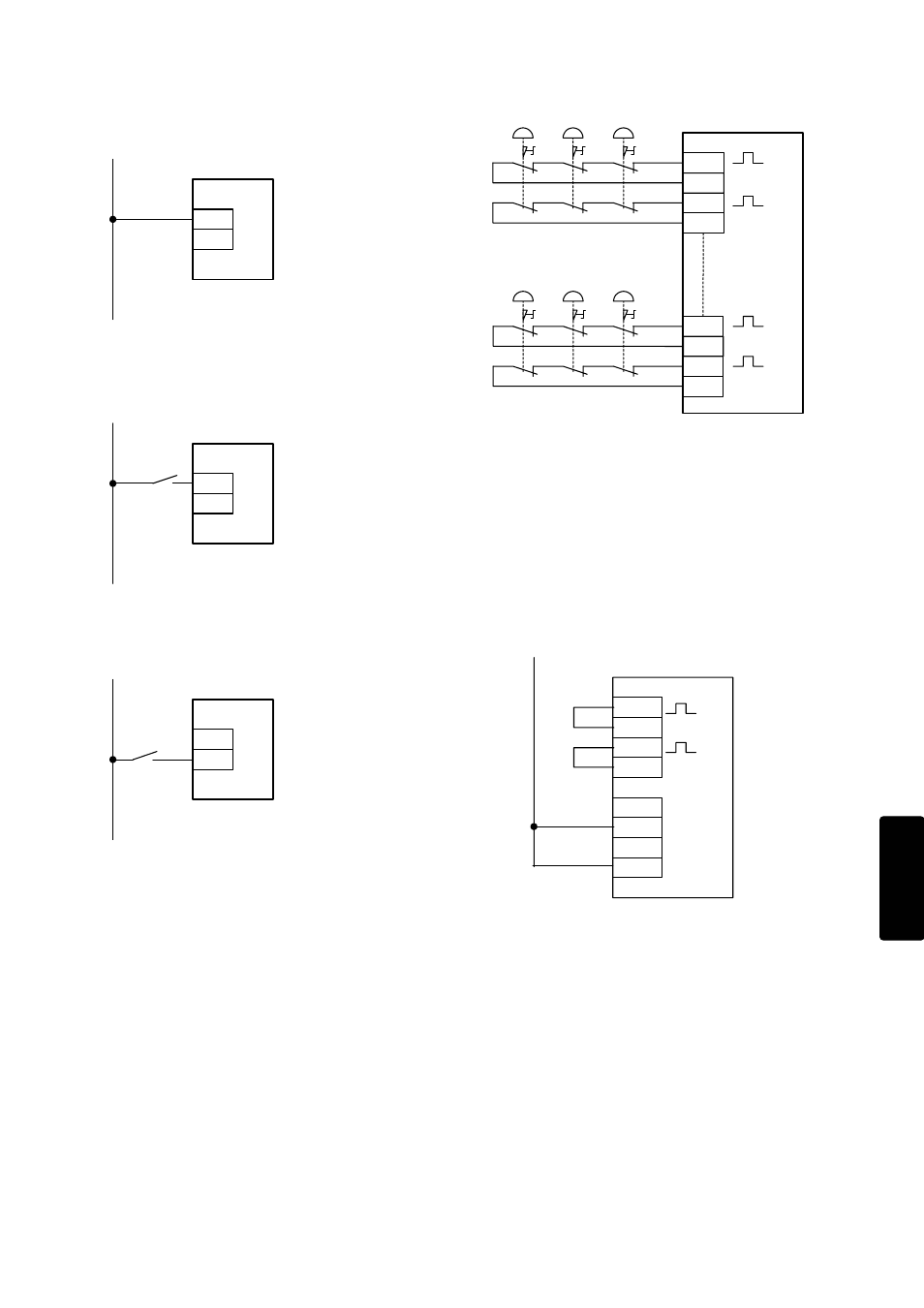

When not using the start switch
（
Auto start）
When not detecting the welding of start switch
（
Manual start）
When detecting the welding of start switch
（
Control start）
When connecting multiple components in series
NOTE: Safety performance depends
on the system onfiguration.
When not using some safety inputs
・
If there are unused safety inputs in S1 to S3,
connect the unused receive terminals
to the corresponding drive terminals. (Refer to (1))
・
If there are unused safety inputs in S4 to S6,
connect the unused receive terminals to
24V DC power supply (V+). (Refer to (2))
X16
X17
24V DC
X16
X17
24V DC
S7
24V DC
X16
X17 S7
X4
T4
X5
T5
X0
T0
X1
T1
X n
X n+1
T n
T n+1
24V DC
X m
T m
X m+1
T m+1
(1)
(2)
