LOGIC
5-103
Chapter 5

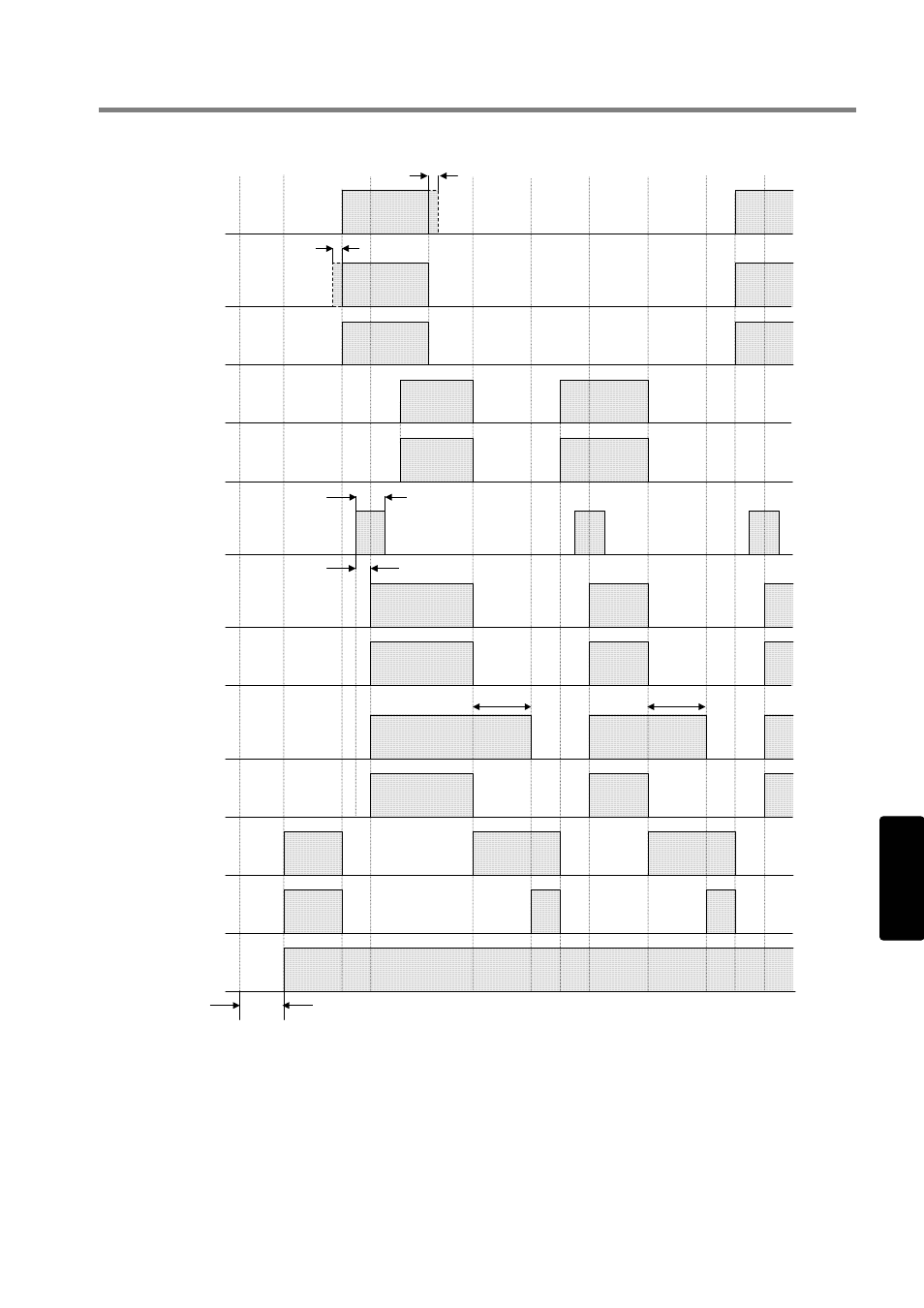

Timing chart (Logic 12b)
Example: Manual start input (X16) is used.
Safety input 1: X0
Start input 1: X16
(Manual)
Monitor output for
safety input 1: Y4
State monitor output 3:
Y16
Solenoid output 1:
Y17
OFF delay time
Safety input 1: X1
Max. 6s
Initialization
note 1)
note 1)
Safety input 2:
X2, X3
Safety output 1:
Y0, Y1
Monitor output for
Safety output 1: Y12
Safety output 2: Y2,
Y3
Monitor output for
Safety output 2: Y13
Solenoid output 2:
Y20
Monitor output for
safety input 2: Y5
Min. 0.1s
Max. 0.1s
Power
ON
Safety output
ON
Safety output
ON
OFF delay time
Safety output
ON
(Either safety input 3 or 4 is ON, and both safety input 5 and 6 are ON in this chart.)
note 1) Input monitor error detection time is 0.5s.
About safety inputs that are not described in this chart, input monitor error detection time is as follows.
The time of dual channel direct opening input (X4, X5 and X10 to X13) is 0.5s.
The time of dual channel independent input (X2, X3, X6 and X7) is infinity.
Refer to the following “Logic functions” for more details.
