INSTALLATION AND WIRING
3-6
Wiring method
SafetyOne has two kinds of connectors spring clamp (optional) and crimp. Note1
Note1. For detailed information of Crimp connector, consult Tyco Electronics AMP.
■ Applicable connectors and mounting to SafetyOne
Applicable connectors
Type No. of pole Part No. Remarks
FS9Z-CN01 IDEC (optional)
30
2-1871940-5 Tyco Electronics AMP
FS9Z-CN02 IDEC (optional)
Spring clamp
22
2-1871940-1 Tyco Electronics AMP
30 2-1871946-5 Tyco Electronics AMP
Crimp
22 2-1871946-1 Tyco Electronics AMP

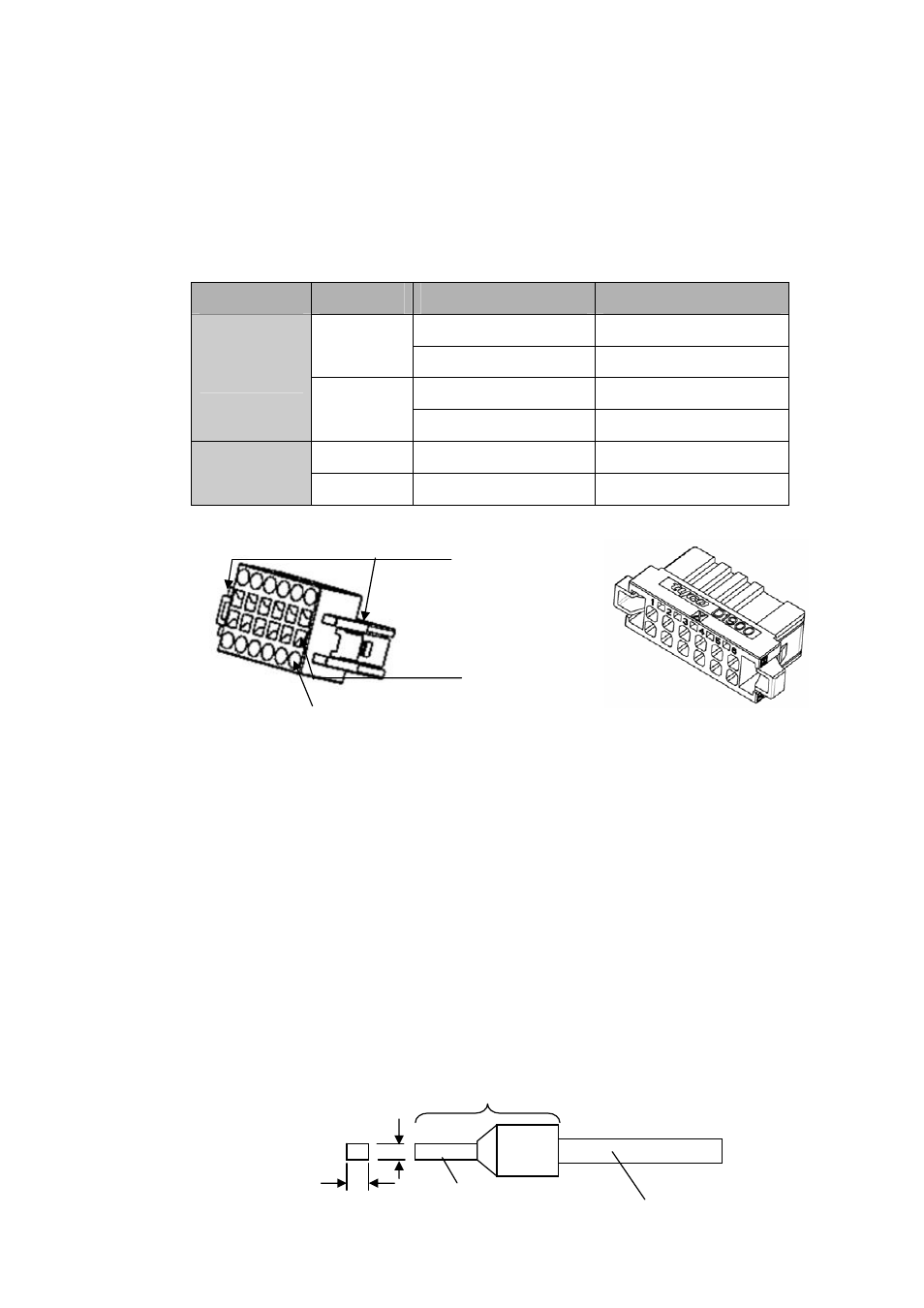

Fig. 3.6 Spring clamp connector (FS9Z-CN0*) Fig. 3.7 Crimp connector
When mounting a connector to the SafetyOne, be sure to insert the connector straight and
completely in until you hear a click or feel it click into position. To remove the connector, press
down on the locking tabs completely, and then pull out the connector. If pressing down on the
locking tabs is incomplete damage to the connector and wire may occur.
■ Applicable wire and ferrule sizes for spring clamp connector
AWG#18-24 (UL1007 recommended) Stripped length: 7.0±0.3mm
When using ferrules, specification are shown below.
Long size: 1.02mm (min.) - 1.21mm (max.) (”a” in the figure below)
Short size: 0.95mm (min.) - 1.21mm (max.) (”b” in the figure below)
Applicable wire: AWG#24 (UL1007 recommended)
Fig3.8 Applicable Ferrule
Locking tabs
Tool insertion slot
Wire insertion slot
a
b
Wire
Terminal
Ferrule
