LOGIC
5-30
Logic 11b: The logic for apparatus with NO/NC contact inputs

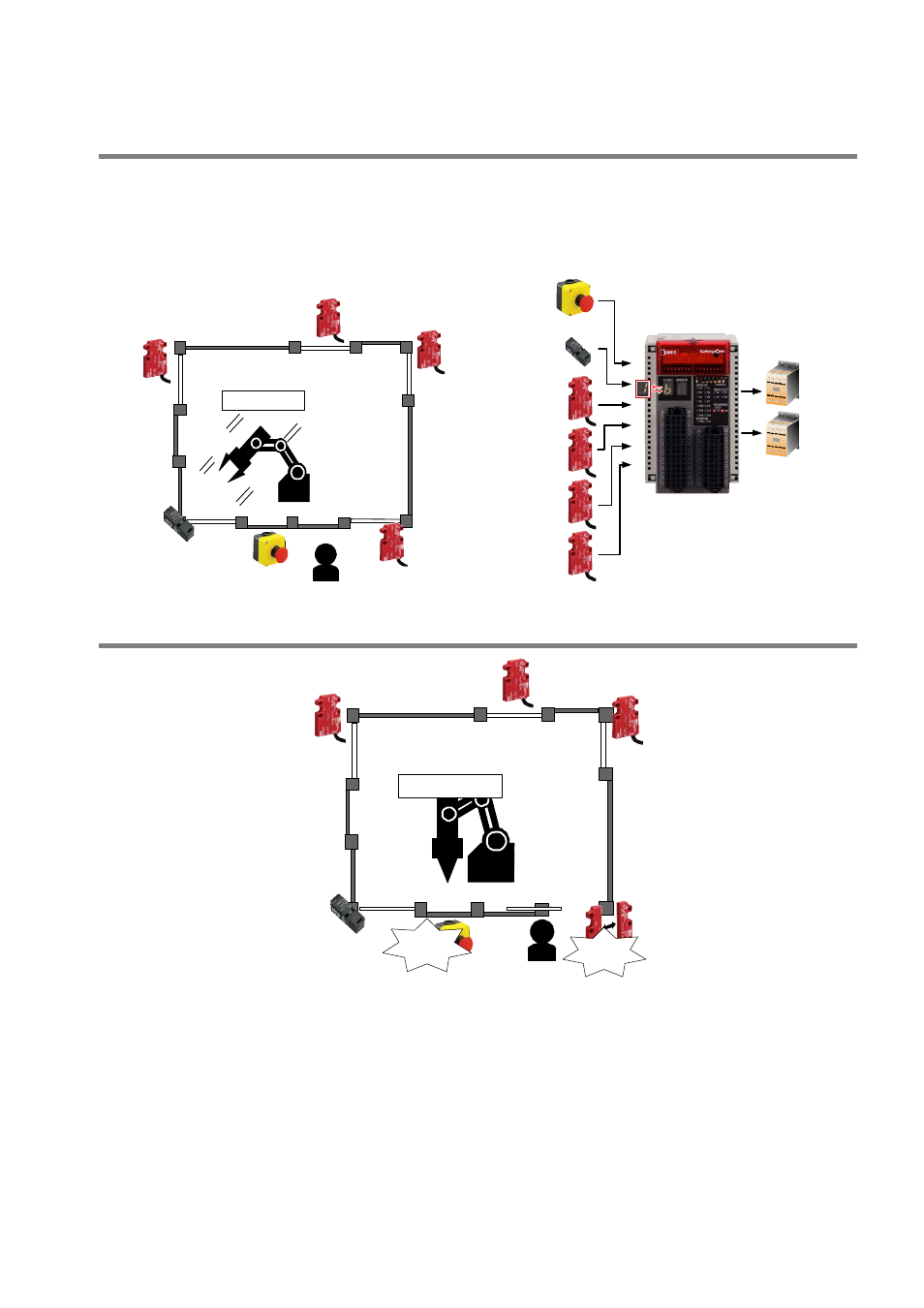

Overview (Logic 11b)
This logic function is for using dual channel NO/NC contact devices as safety protective measures
for semiconductor manufacturing machines and food packaging machinery. Safety outputs perform
as dual channel outputs.
This logic has 2 dual inputs for direct opening inputs and 4 dual channel inputs for NO/NC contact
devices.
Safety input 1
Safety input 6
Safety input 2 Safety input 3
Safety output 1
or
Safety output 2
Safety input 4
Safety input 5
System runs
Safety
output 1
Safety
output 2
Logic 11b
Emergency
stop switch
Safety switch
Non-contact
Interlock switch
Operation example (Logic 11b)
Safety input 1
Safety input 6
Safety input 2
Safety input 3
Safety output 1
or
Safety output 2
Safety input 4
Safety input 5
System stops
Press!
Open!
