LOGIC
5-212

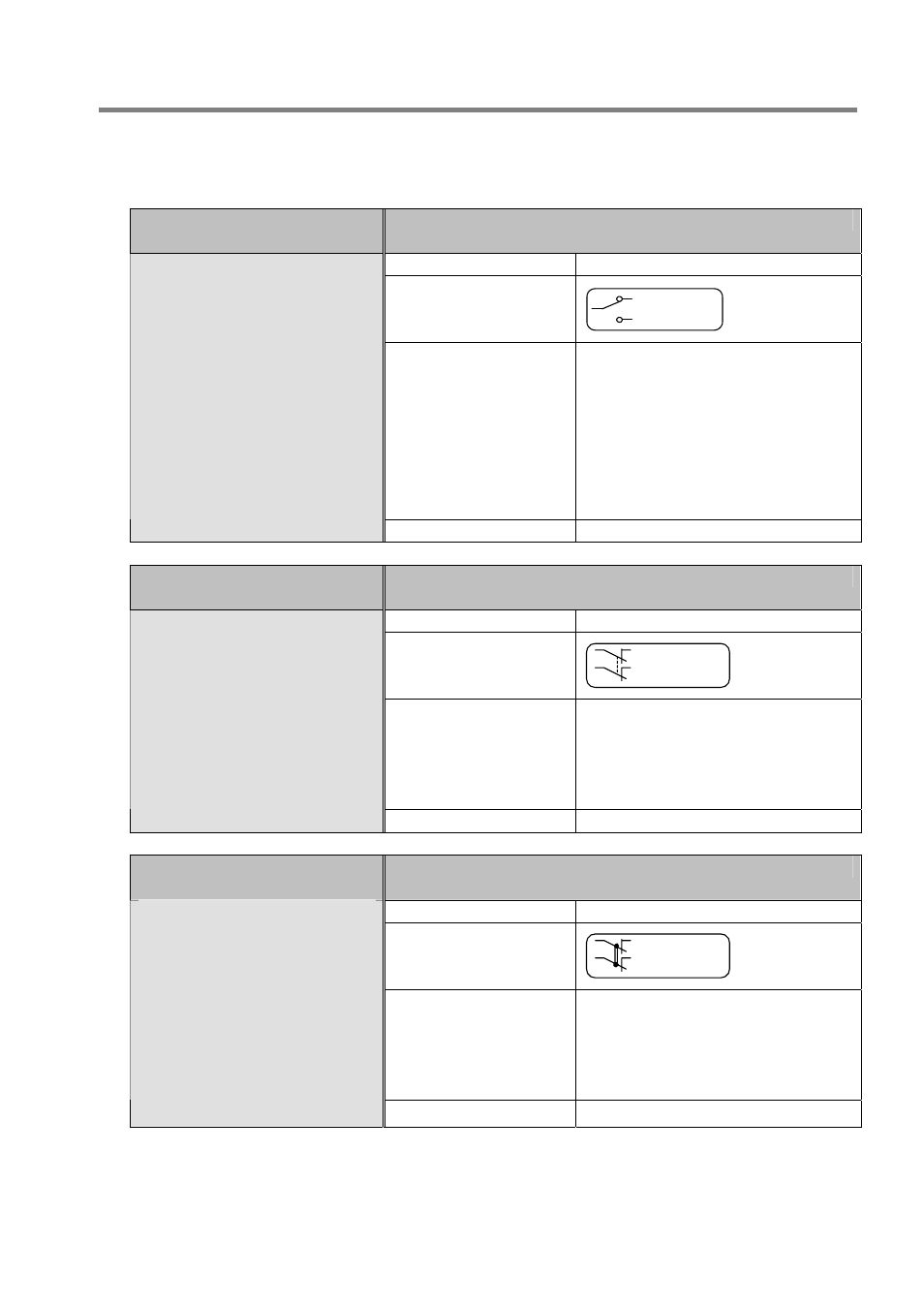

Function (Logic 14A)
●Safety inputs: X0 to X11 (T0, T2 to T11)
Safety inputs are used to diagnose the status of connected safety devices, such as emergency stop
switches, interlock switches, and mode select switches.
Intended inputs
(Terminal names) Function
Function name Mode select input II
Symbol
Mode Select
Ⅱ
Description of operation This function is for connecting devices
with a mode selector function, such as
mode selector switch. When the
switching of inputs is performed within
3s, this function output is kept at
previous state. This function diagnoses
time interval of status transition between
each input (0.5s).
Safety input 1
(X0/X1-T0)
Detail information Logic functions (5-321)
Intended inputs
(Terminal names) Function
Function name Dual channel dependent input
Symbol
Dual Channel
D epende nt
Description of operation This function diagnoses the status of
connected safety devices. This function
does not diagnose the time interval of
status transition between each input of
duplicated inputs.
Safety input 2
(X2-T2, X3-T3)
Detail information Logic functions (5-313)
Intended inputs
(Terminal names) Function
Function name Dual channel direct opening input
Symbol
Dual Channel
Direct Opening
Description of operation This function diagnoses the status of
connected safety devices. This function
diagnoses the time interval of status
transition between each input of
duplicated inputs (0.5s).
Safety input 3
(X4-T4, X5-T5)
Safety input 4
(X6-T6, X7-T7)
Safety input 5
(X10-T10, X11-T11)
Detail information Logic functions (5-311)
