LOGIC
5-141
Chapter 5

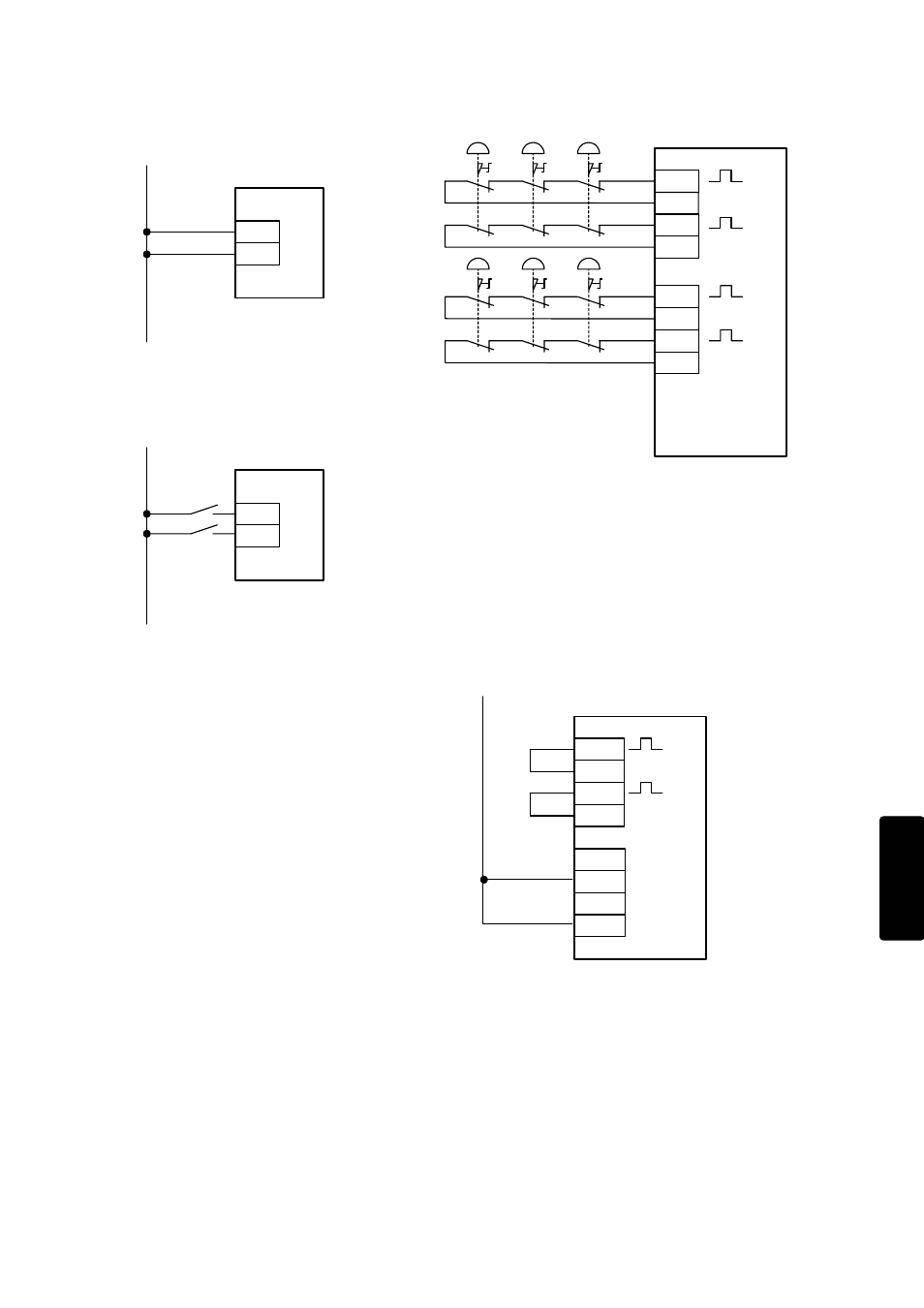

When not using the start switch
（
Auto start）
When using the start switch
（
Manual start）
When connecting multiple emergency stop switches
in series
NOTE: Safety performance depends
on the system configuration.
When not using some inputs
・ If there are unused safety inputs in S3 and S4
and S6, connect the unused receive terminals to
the corresponding drive terminals. (Refer to (1)).
・
If S5 is not used, connect the receive terminal to
24V DC power supply (V+). (Refer to (2))
X16
X17
24V DC
X16
X17
24V DC
S7
S8
X12
T12
X13
T13
X6
T6
X7
T7
X n
X n+1
T n
T n+1
24V DC
X m
X m+1
T m
T m
(1)
(2)
