IDEC FS1A Controller - Manual (Page 227)

LOGIC
5-179
Chapter 5

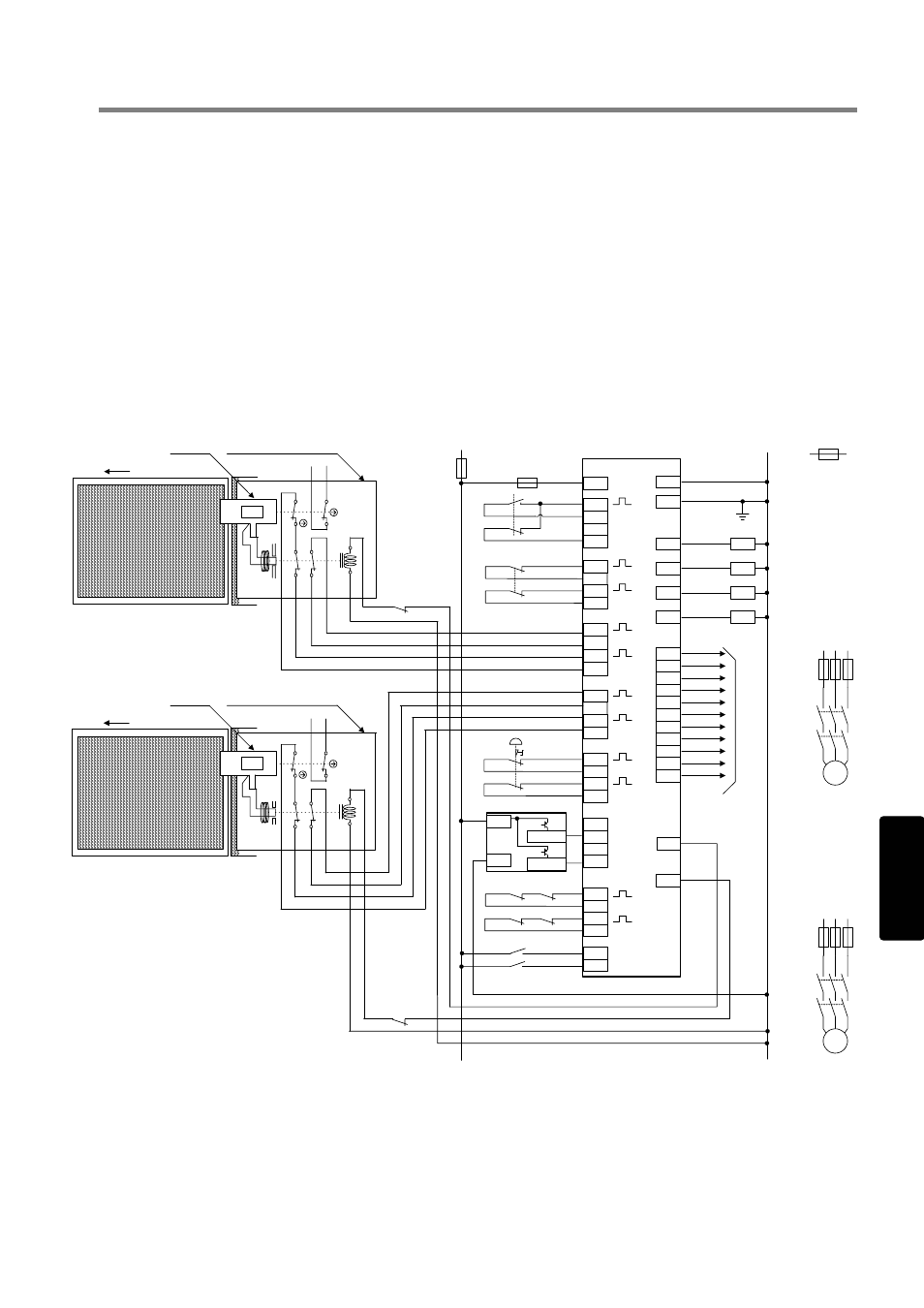

Wiring example (Logic 13C)
In the case where 1 selector switch, 1 enabling swithc, 2 interlock switch with solenoid (spring lock type), 1
emergency stop switch, and 1 safety light curtain are connected.
S1 :Selector
switch
S2 :Enabling switch
S3, 4 :Interlock switch with solenoid (spring lock type)
S5 :Emergency stop switch
S6 :Safety light curtain
S7, 8 :Start switch
S9, 10 :Solenoid control switch
(Pressing the solenoid control switches after closing the guard door,
contacts 41-42 and 51-52 of S3 and S4 turn on, allowing the SafetyOne to restart.)
K1 to 4 :Contactor
