LOGIC
5-293
Chapter 5

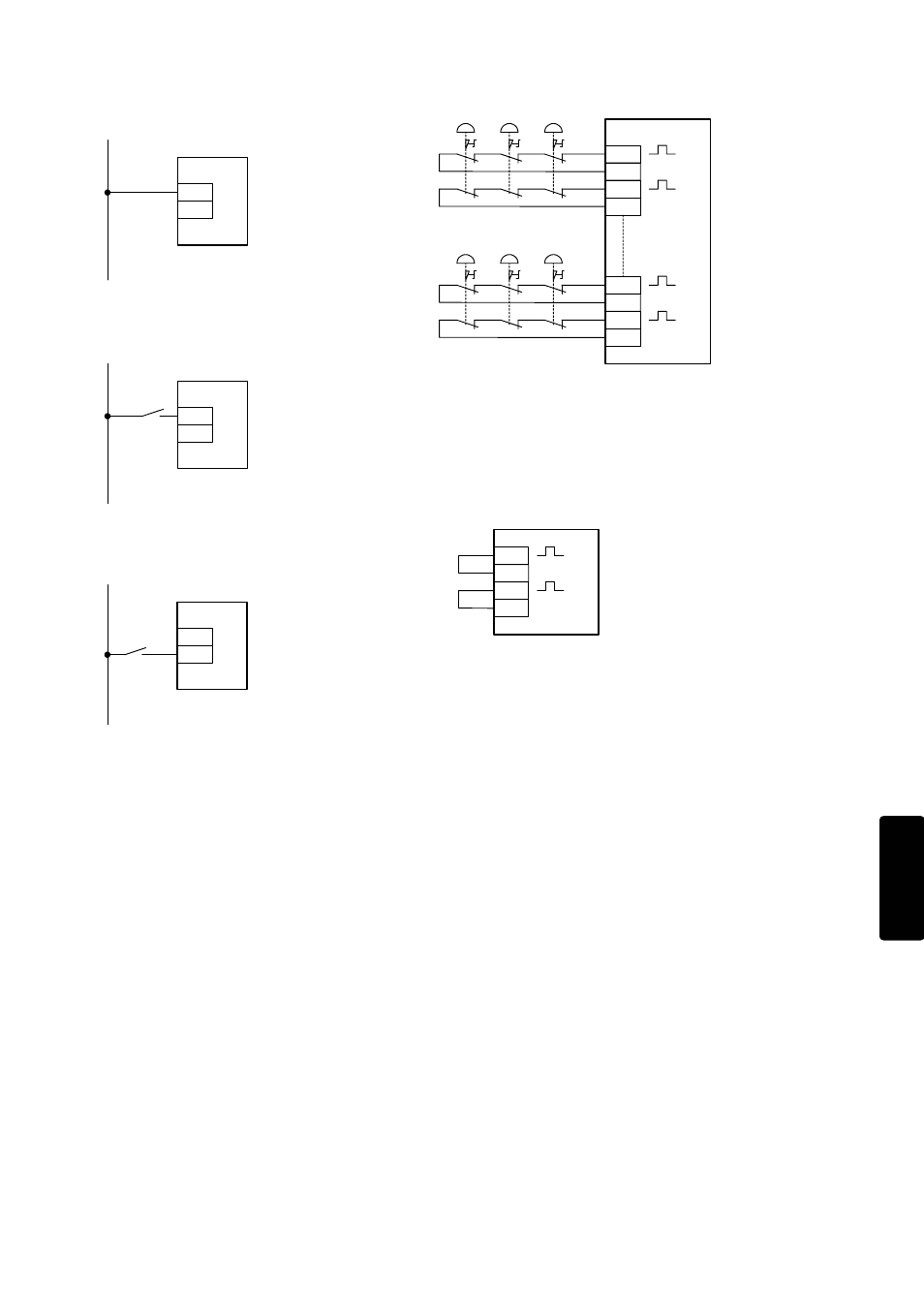

When not using the start switch
（
Auto start）
When not detecting the welding of start switch
（
Manual start）
When detecting the welding of start switch
（
Control start）
When connecting multiple emergency stop switches
in series
NOTE: Safety performance depends
on the system configuration.
When not using some inputs
・ If there are unused safety inputs, connect the unused
receive terminals to the corresponding drive terminals.
(Refer to (1))
X16
X17
24V DC
X16
X17
24V DC
S6
24V DC
X16
X17 S6
X0
X1
T0
T1
X10
T10
X11
T11
X n
X n+1
T n
T n+1
(1)
