Logic 107: Partial stop logic for various apparatus
Overview (Logic 107)
This logic is for safety protective measures applicable to production machines and robots. Safety
outputs perform as single channel outputs.
This logic enables the connection of 5 dual channel direct opening inputs.

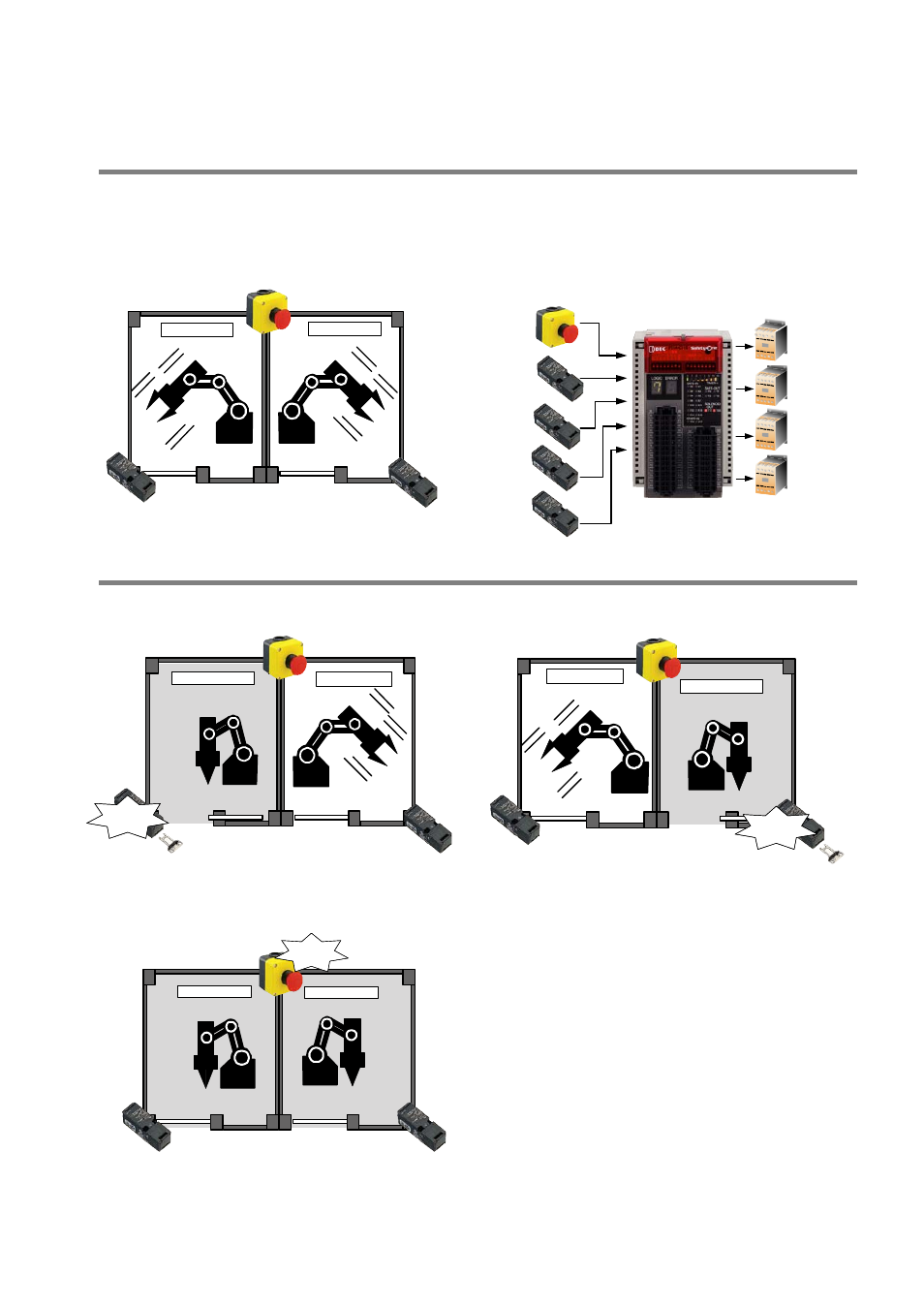

Hazardous Area A
Safety input 1
Safety input 2
Safety input 3
Safety output 1
Safety input 4
Safety input 5
Safety output 2
System runs
System runs
Hazardous Area B
Logic 107
Safety
output 1-1
Safety
output 2-2
Safety
output 1-2
Safety
output 2-1
Emergency
stop switch
Safety switch
Operation example (Logic 107)
●Partial system stop
Open!
System stops
System runs
Safety input 1
Safety input 2
Safety input 3
Safety output 1
Safety input 4
Safety input 5
Safety output 2
Hazardous Area A
Hazardous Area B
Open!
Safety input 1
Safety input 2
Safety input 3
Safety output 1
Safety input 4
Safety input 5
Safety output 2
System runs
System stops
Hazardous Area A
Hazardous Area B
●Entire system stops
Safety input 1
Safety input 2
Safety input 3
Safety output 1
Safety input 4
Safety input 5
Safety output 2
System stops
System stops
Hazardous Area A
Hazardous Area B
Press!
