LOGIC
5-130

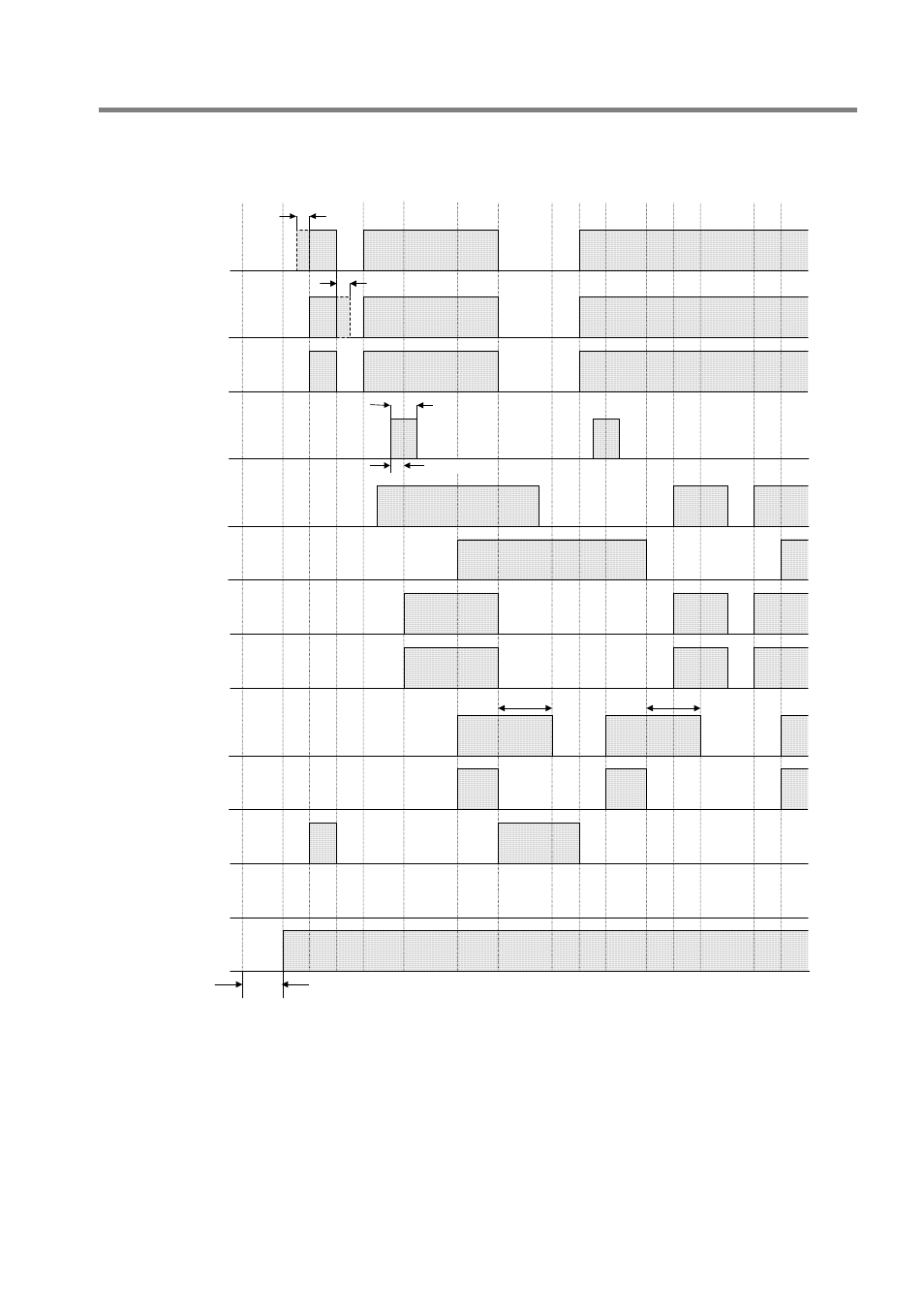

Timing chart (Logic 12d)
Example: Manual start input (X12) is used.
Min. 0.1s
Safety output 2:
Y2, Y3
Monitor output for
Safety output 2: Y13
Safety output 1:
Y0, Y1
Monitor output for
Safety output 1: Y12
Safety input 2: X2
Start input 1: X12
(Manual)
Monitor output for
safety input 2: Y5
State monitor output 3:
Y16
Logic function monitor
output 2: Y20
Safety input 2: X3
Max. 6s
Initialization
note 1)
note 1)
Logic function monitor
output 1: Y17
Control input 1: X16
Control input 2: X17
Power
ON
Safety
output
1
ON
Safety
output
2
ON
Max. 0.1s
OFF delay time OFF delay time
Safety
output
1
ON
Safety
output
2
ON
Safety
output
1
ON
Safety
output
2
ON
(Safety input 1, 3, 4 and 5 are all ON in this chart.)
Note 1) Input monitor error detection time is infinity.
About safety inputs that are not described in this chart, input monitor error detection time is as follows.
The time of dual channel direct opening input (X0, X1) is 0,5s.
The time of dual channel dependent input (X4 to X7) is infinity.
The time of dual channel safety input (X10, X11) is 0,1s.
Refer to the following “Logic functions” for more details.
