Logic 12b: The logic constructing an OR circuit for various apparatus
Overview (Logic 12b)
This logic is for constructing an OR circuit of a safety input device for safety protective measures of
production machinery, robots.. Safety outputs perform as dual channel outputs.
This logic enables the connection of 4 dual channel direct opening inputs, and 2 dual channel
dependent inputs.
Safety input 6
Safety input 2
Safety input 3
Safety output 1
or
Safety output 2
Safety input 4
Safety input 5
Safety input 1
System runs
Safety
output 1
Safety
output 2
Logic 12b
Emergency
stop switch
Safety switch
Enabling
switch

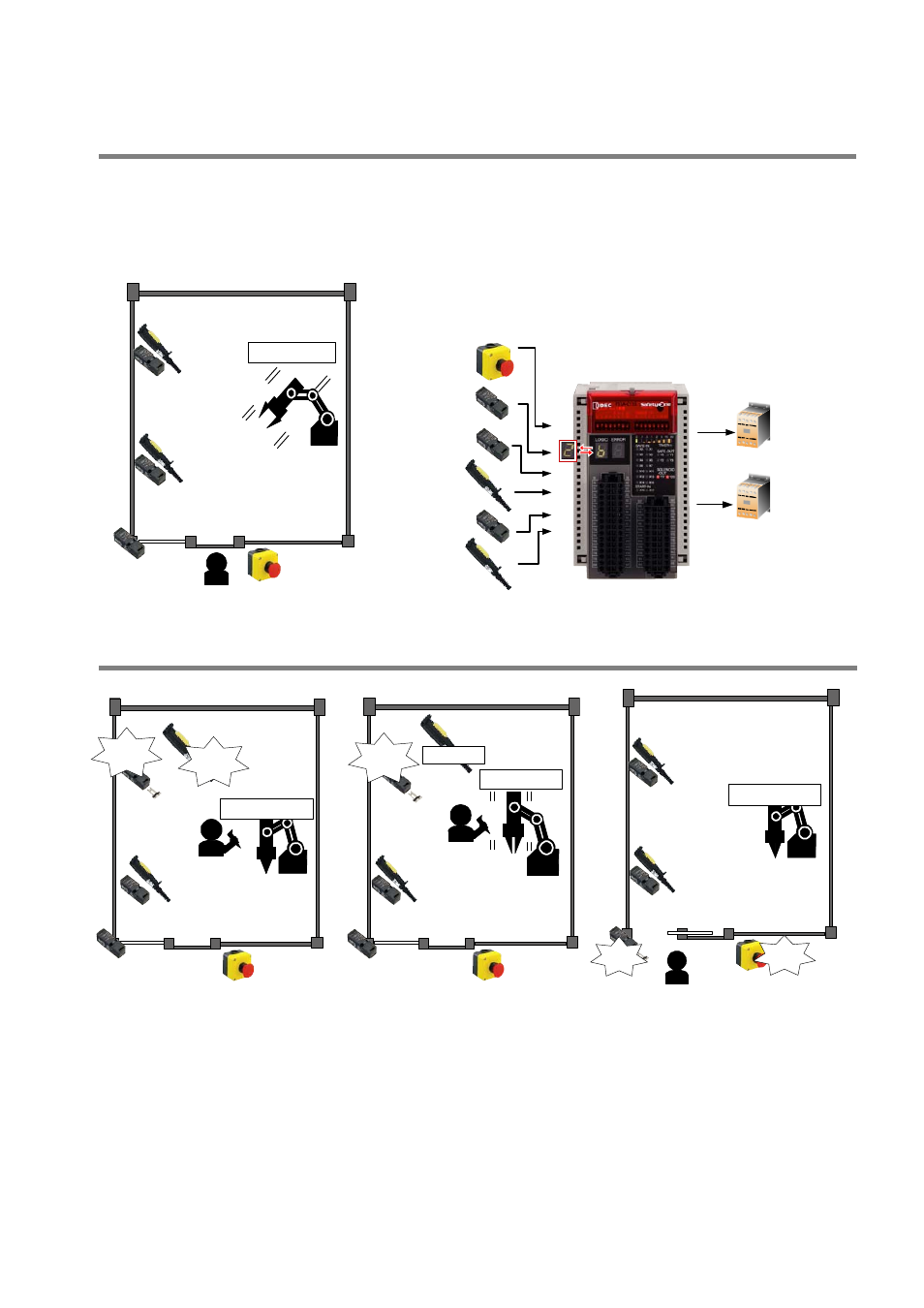

Operation example (Logic 12b)
