IDEC FS1A Controller - Manual (Page 279)

LOGIC
5-231
Chapter 5

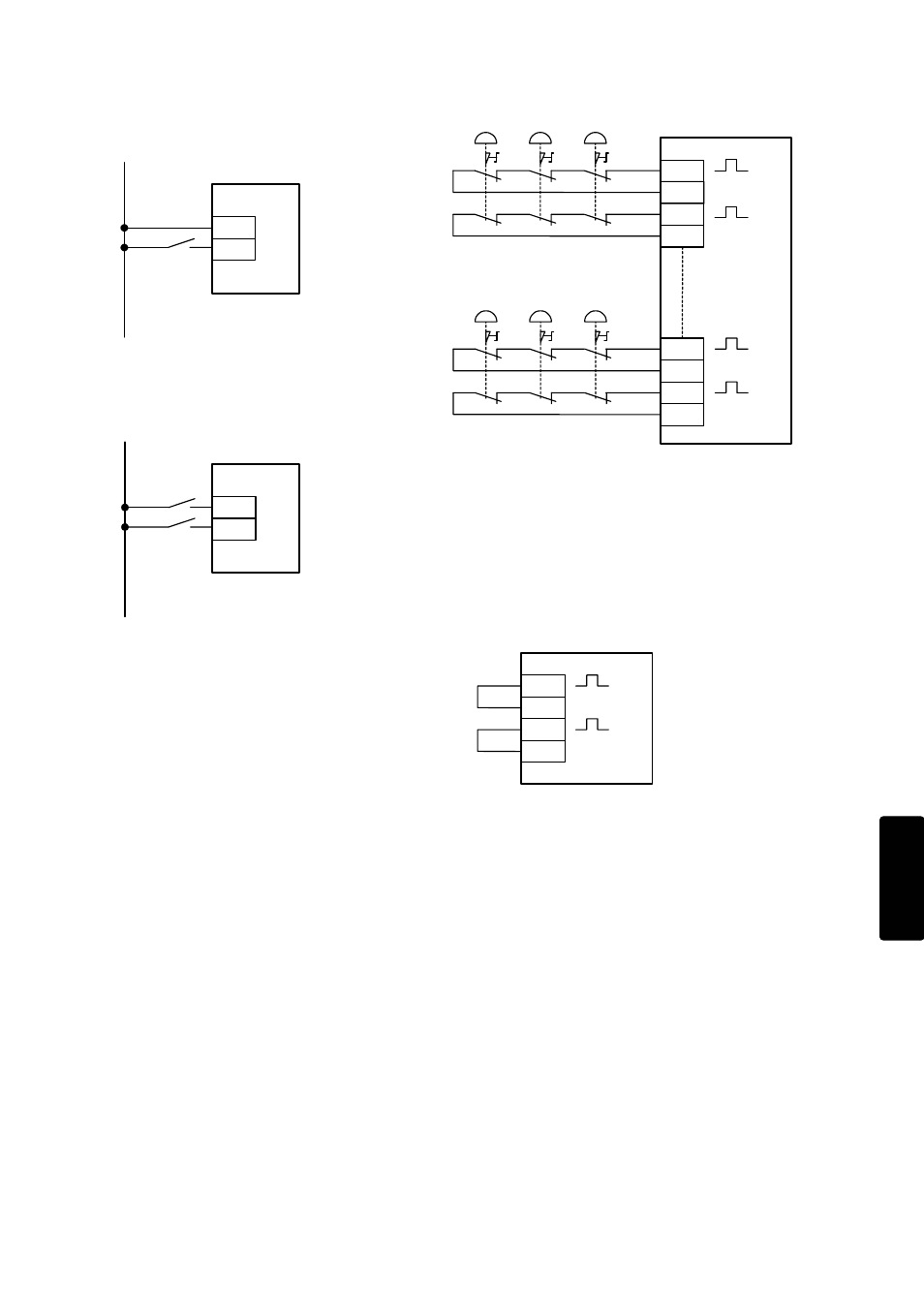

When using the start switch S6
（
Manual start）
When not using the start switch S6
（
Auto start）
When connecting multiple emergency stop switches
in series
NOTE: Safety performance depends on the system
configuration.
When not using some safety inputs
・ If there are unused safety inputs, connect the unused
receive terminals to the corresponding drive terminals.
(Refer to (1))
X16
X17
24V DC
S7
X16
X17
24V DC
S6
S7
X10
T10
X11
T11
X4
T4
X5
T5
X n
X n+1
T n
T n+1
(1)
