PRODUCT SPECIFICATIONS
2-13
Chapter 2
Indicators
0 .1 .5 1 2 5
15 30
SAFE-IN
TIMER(S)
SAFE-OUT
SOLENOID
-OUT
START-IN
X0
X1
X2
X3
X4
X5
X6
X7
X10
X11
X12
X13
X14
X15
X16
X17
Y0
Y1
Y2
Y3
Y17 Y20
LOGIC ERROR
(1) Logic LED
Indication
Status
Descriptions
ON
The selected logic is in Run or Protection state.
(Ex. : In case of logic 14A
4 → A → 4 → A → 4 → …)
“1”... “8”
“A”, “b”, “C”, “d”
Blink
The selected logic is in Configuration state.
(Ex. : In case of logic 14A
4 → A → OFF → 4 → A → OFF →4 → A →…)
“E”
Blink
The selected logic has Configuration error
(The logic is not selected or incorrect multiple switches
are selected
Note1
.)
Random pattern
ON/Blink
Initializing (Initial state)
Blank
OFF
Error (Stop state)
Note1. Proper logic switch configurations are shown below.
-Select one of “1” to “8” switches.
-Select one of “1” to “4” and one of “A”, “b”, “C”, “d” switches.
Other than above selections are incorrect.
(2) Error LED
Indication
Status
Descriptions
“1”
ON
Input monitor error (Protection state)
“2”
ON
Wiring error at safety inputs or error in safety input
circuits (Stop state)
“3”
ON
Wiring error at start inputs or error in start input circuits
(Stop state)
“4”
ON
Wiring error at safety outputs or error in safety output
circuits (Stop state)
“5”
ON
Muting lamp error (disconnection) (Logic 11d only)
(Stop state)
“6”
ON
Power supply error or internal power supply circuit error
(Stop state)
“7”
ON
Internal error, power supply error or internal power
supply circuit error (Stop state)
“9”
ON
EMC disturbance (Stop state)
ON
Configuration procedure is in progress (Configuration
state)
“C”
Blink
Configuration is valid
Note1
(Configuration state)
Random
ON/Blink
Initializing (Initial state)
Blank
OFF
Normal operation (Run state)
Note1. Blinks for 1 to 5 seconds after the enter button is pressed. Releasing the button during
blinking activates the setting. The blinking LED becomes ON if the button is pressed for
more than 5 seconds, and the setting becomes invalid even after the button is released.

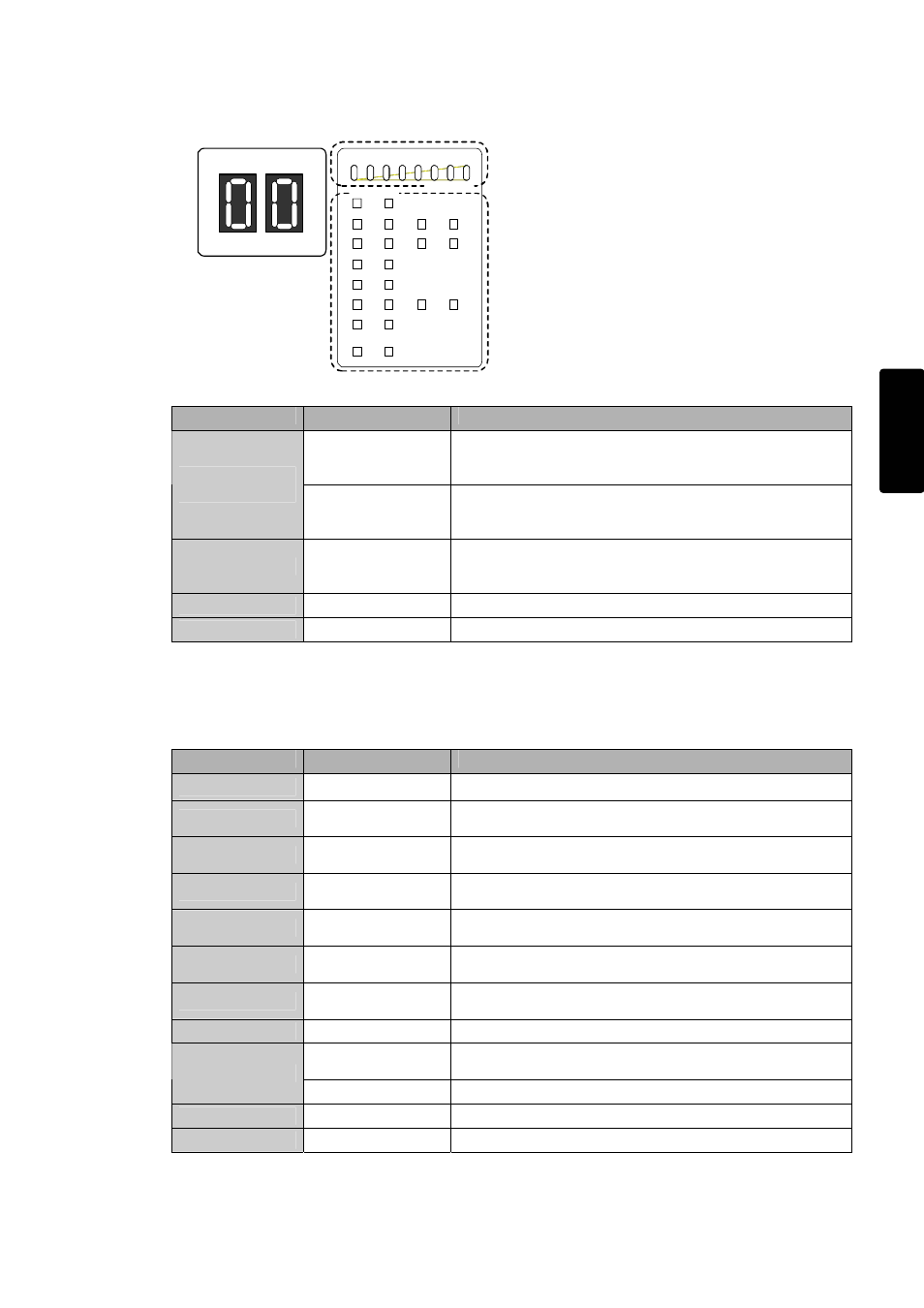

(1) (2)
(4)
(3)
(1) Logic LED (green)
(2) Error LED (red)
(3) Timer LED (green)
(4) Input/Output status LED (orange)
- SAFE-IN
- START-IN
- SAFE-OUT
- SOLENOID-OUT
