Copy Functions
1-12
Punching
Punch holes in sets of finished copies in preparation for binding.
NOTE: Requires the optional 3000 sheet document finisher and punching unit.

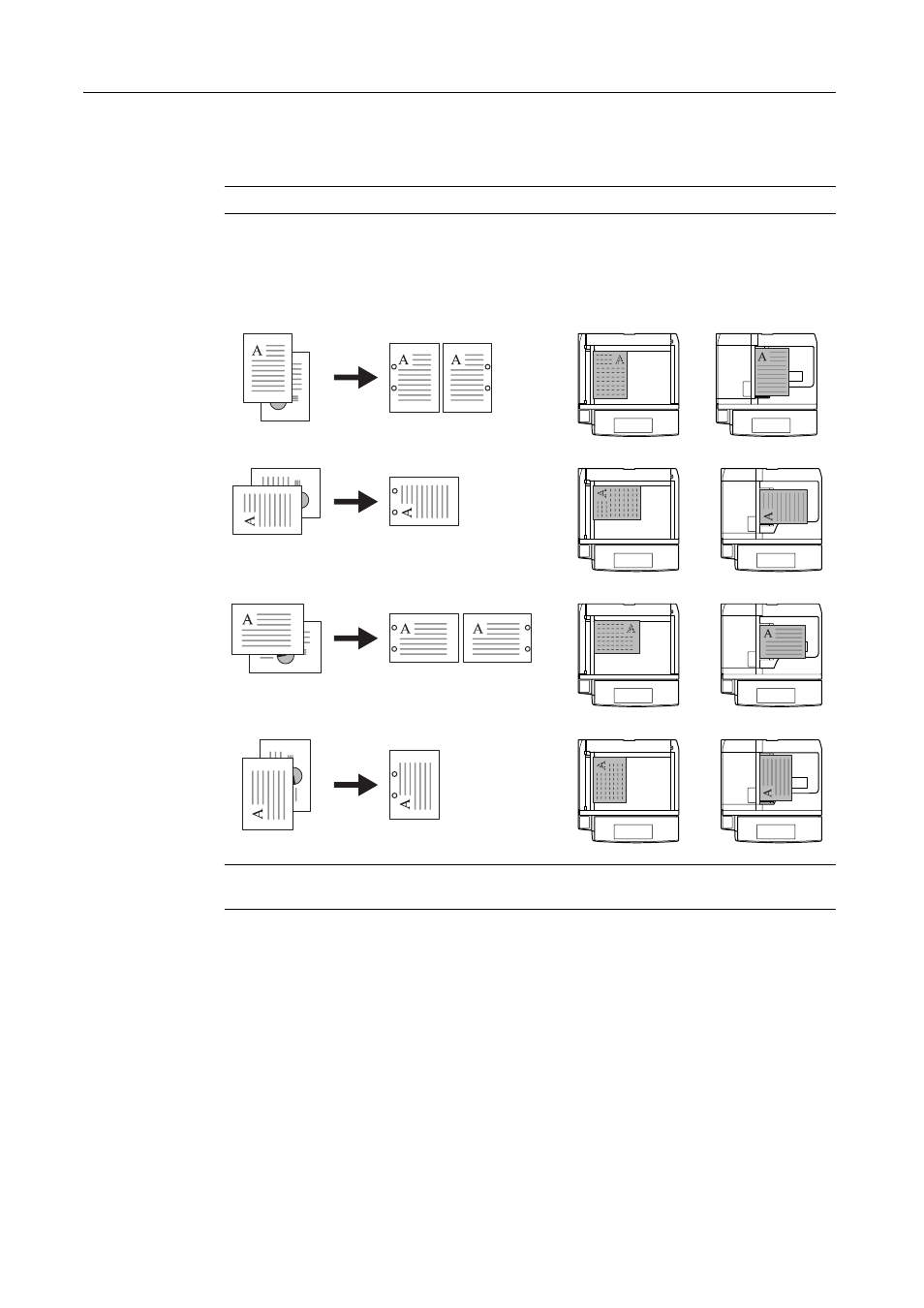

The orientations of the original and corresponding punch positions are as follows.
NOTE: The inch model provides two-hole and three-hole punching. The metric model provides
two-hole and four-hole punching.
Follow the steps as below for punching.
1 Press [Function] and then press [T Down].
2 Press [Staple/Punch].
Original Copy
Document
processor
Platen
Orientation of Original
