30 1 Introduction
1
.2 V
isual Displa
y Unit and Oper
ating P
a
nel
Operating panel

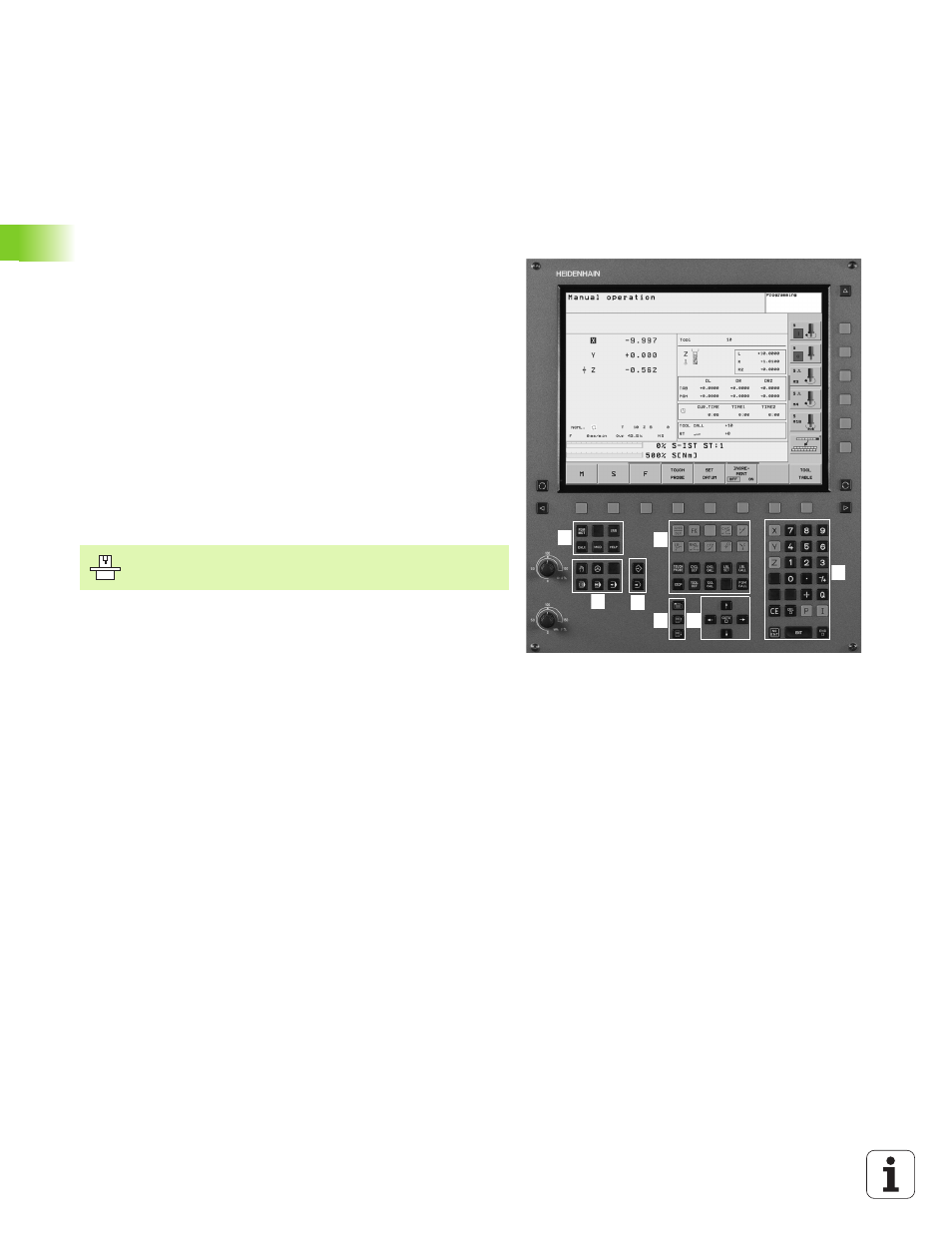

The TNC 320 is delivered with an integrated keyboard. The figure at
right shows the controls and displays of the keyboard:
The functions of the individual keys are described on the inside front
cover.
1 „ File management
„ Pocket calculator
„ MOD function
„ HELP function
2 Programming modes
3 Machine operating modes
4 Initiation of programming dialog
5 Arrow keys and GOTO jump command
6 Numerical input and axis selection
7 Navigation keys
Machine panel buttons, e.g. NC START or NC STOP, are
described in the manual for your machine tool.
1 2 3
5
1 4
6
7 7
1
