HEIDENHAIN TNC 320 209
8.2 Cy
cles f
o
r Dr
illing,
T
apping and Thr
ead Milling

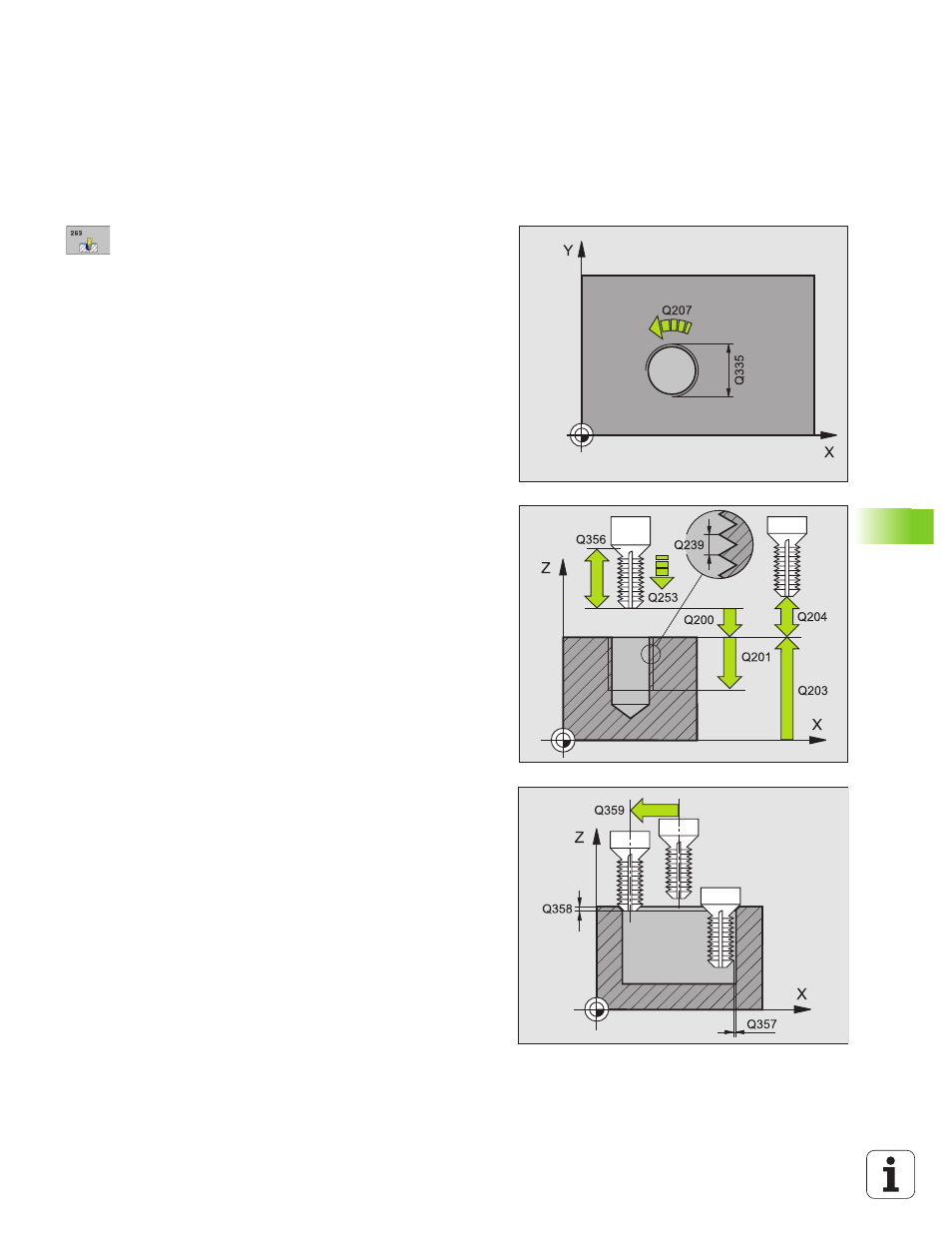

8 Nominal diameter Q335: Nominal thread diameter.
8 Thread pitch Q239: Pitch of the thread. The algebraic
sign differentiates between right-hand and left-hand
threads:
+ = right-hand thread
– = left-hand thread
8 Thread depth Q201 (incremental value): Distance
between workpiece surface and root of thread.
8 Countersinking depth Q356 (incremental value):
Distance between tool point and the top surface of
the workpiece.
8 Feed rate for pre-positioning Q253: Traversing
speed of the tool when moving in and out of the
workpiece, in mm/min.
8 Climb or up-cut Q351: Type of milling operation with
M03.
+1 = climb milling
–1 = up-cut milling
8 Set-up clearance Q200 (incremental value): Distance
between tool tip and workpiece surface.
8 Set-up clearance to the side Q357 (incremental
value): Distance between tool tooth and the wall.
8 Depth at front Q358 (incremental value): Distance
between tool tip and the top surface of the workpiece
for countersinking at the front of the tool.
8 Countersinking offset at front Q359 (incremental
value): Distance by which the TNC moves the tool
center away from the hole center.
