HEIDENHAIN TNC 320 295
8.8 Special Cy
cles

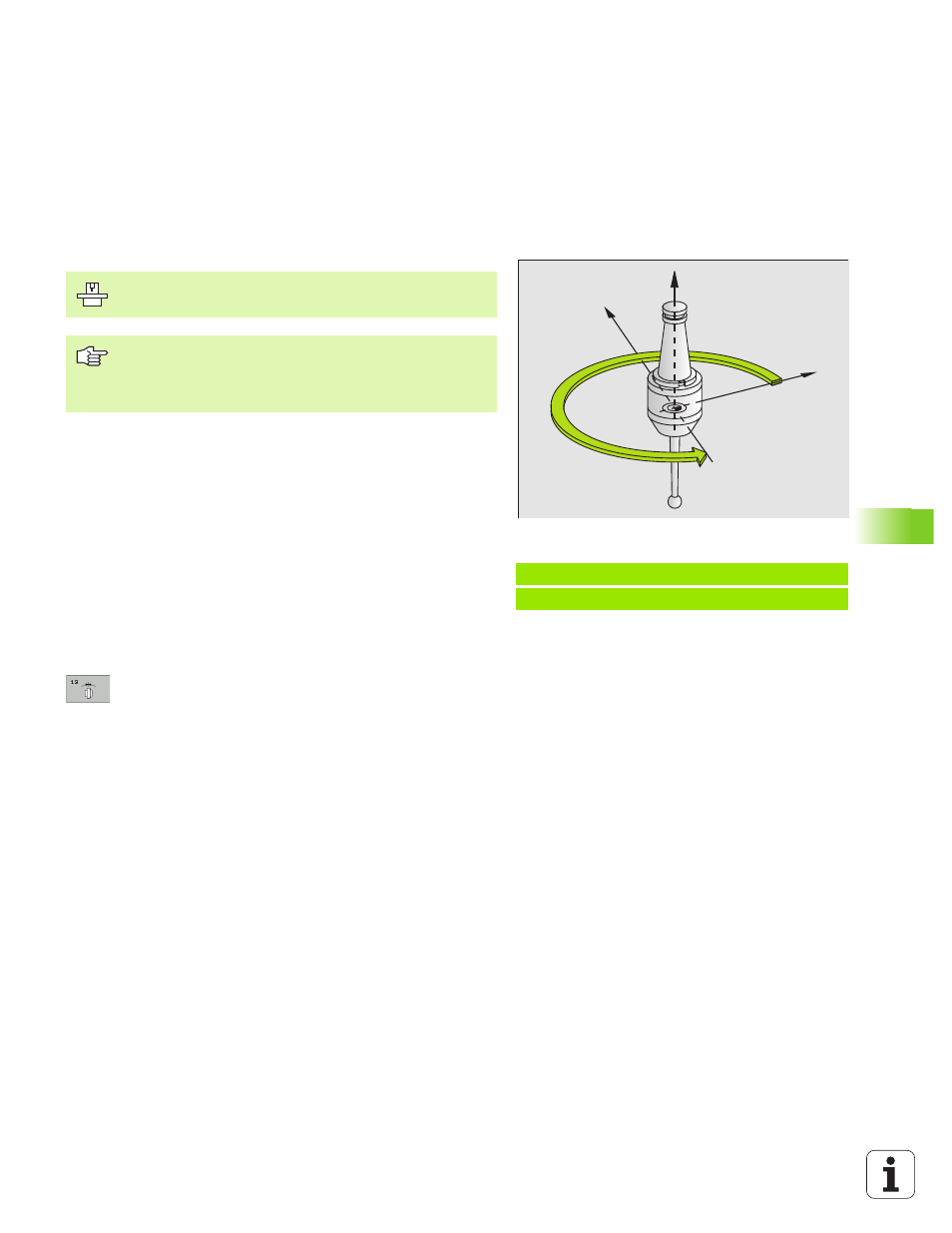

ORIENTED SPINDLE STOP (Cycle 13)
The control can control the machine tool spindle and rotate it to a given
angular position.
Oriented spindle stops are required for
„ Tool changing systems with a defined tool change position
„ Orientation of the transmitter/receiver window of HEIDENHAIN 3-D
touch probes with infrared transmission
Effect
The angle of orientation defined in the cycle is positioned to by
entering M19 or M20 (depending on the machine).
If you program M19 or M20 without having defined Cycle 13, the TNC
positions the machine tool spindle to an angle that has been set by the
machine manufacturer (see your machine manual).
8 Angle of orientation: Enter the angle according to
the reference axis of the working plane.
Input range: 0 to 360°
Input resolution: 0.1°
Example: NC blocks
93 CYCL DEF 13.0 ORIENTATION
94 CYCL DEF 13.1 ANGLE 180
X
Y
Z
Machine and control must be specially prepared by the
machine tool builder for use of this cycle.
Cycle 13 is used internally for machining cycles 202, 204
and 209. Please note that, if required, you must program
Cycle 13 again in your NC program after one of the
machining cycles mentioned above.
